Toyota Reach Trucks

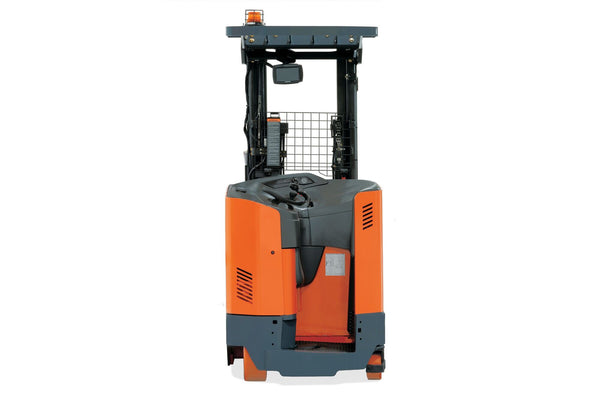

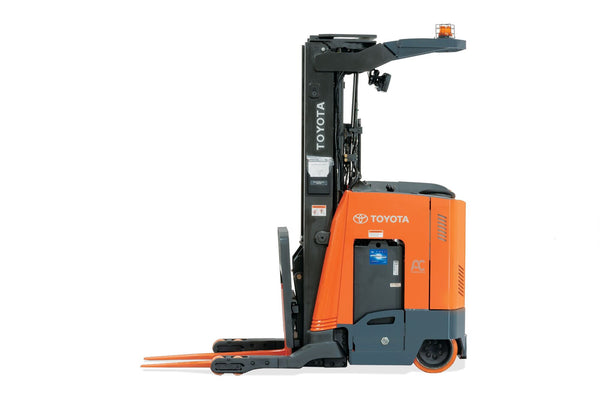

Reach Truck

Bubble-Cushioned Padded Floor & Brake Pedal
Ergonomically-angled floorboard
Integrated Clipboard, Amenities Tray & Cup Holder

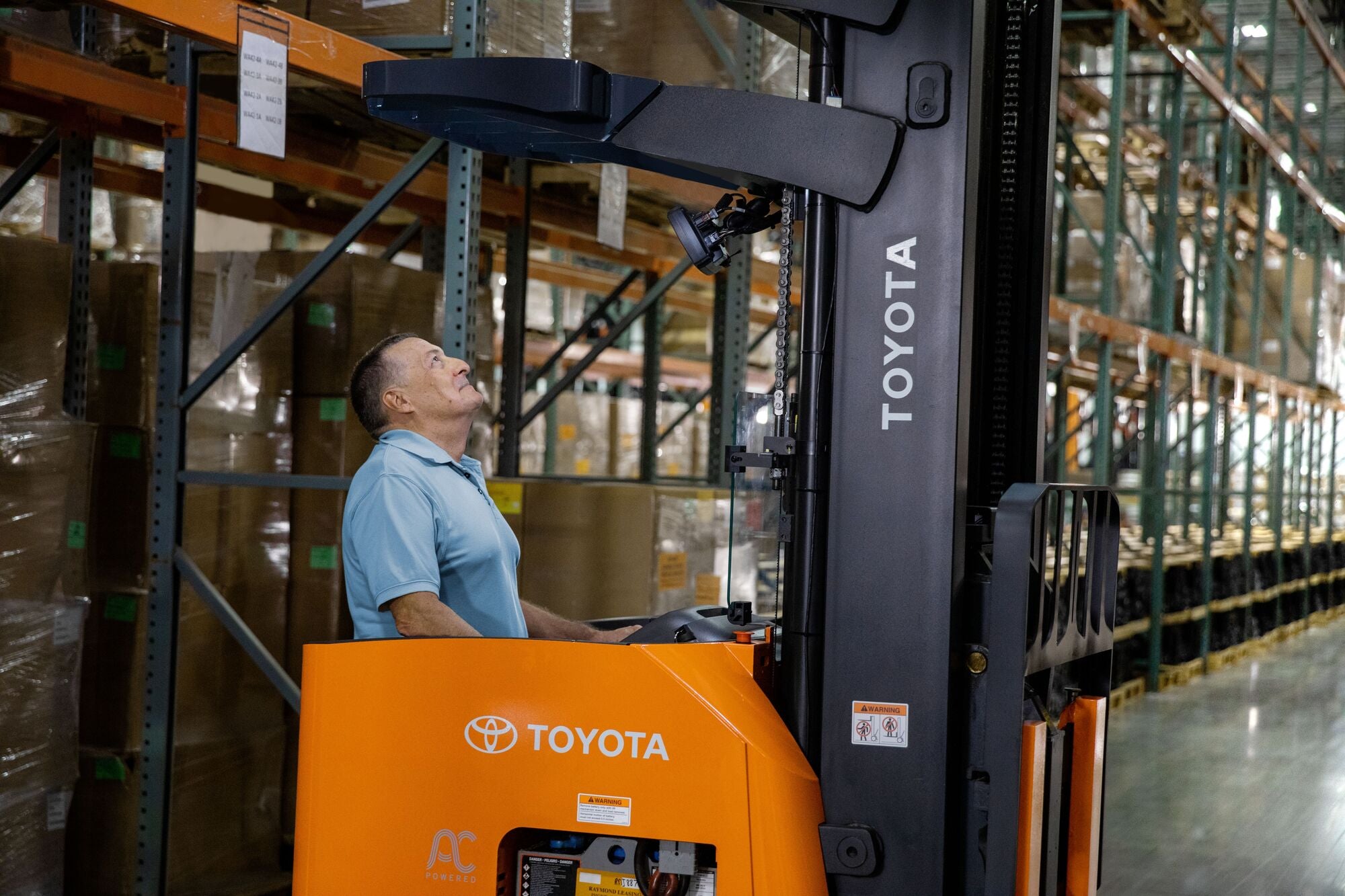

High-Visibility Overhead Guard
Safety Glass Mast Guard
Comfort-Padded Lean Points
Cushioned Knee Pad

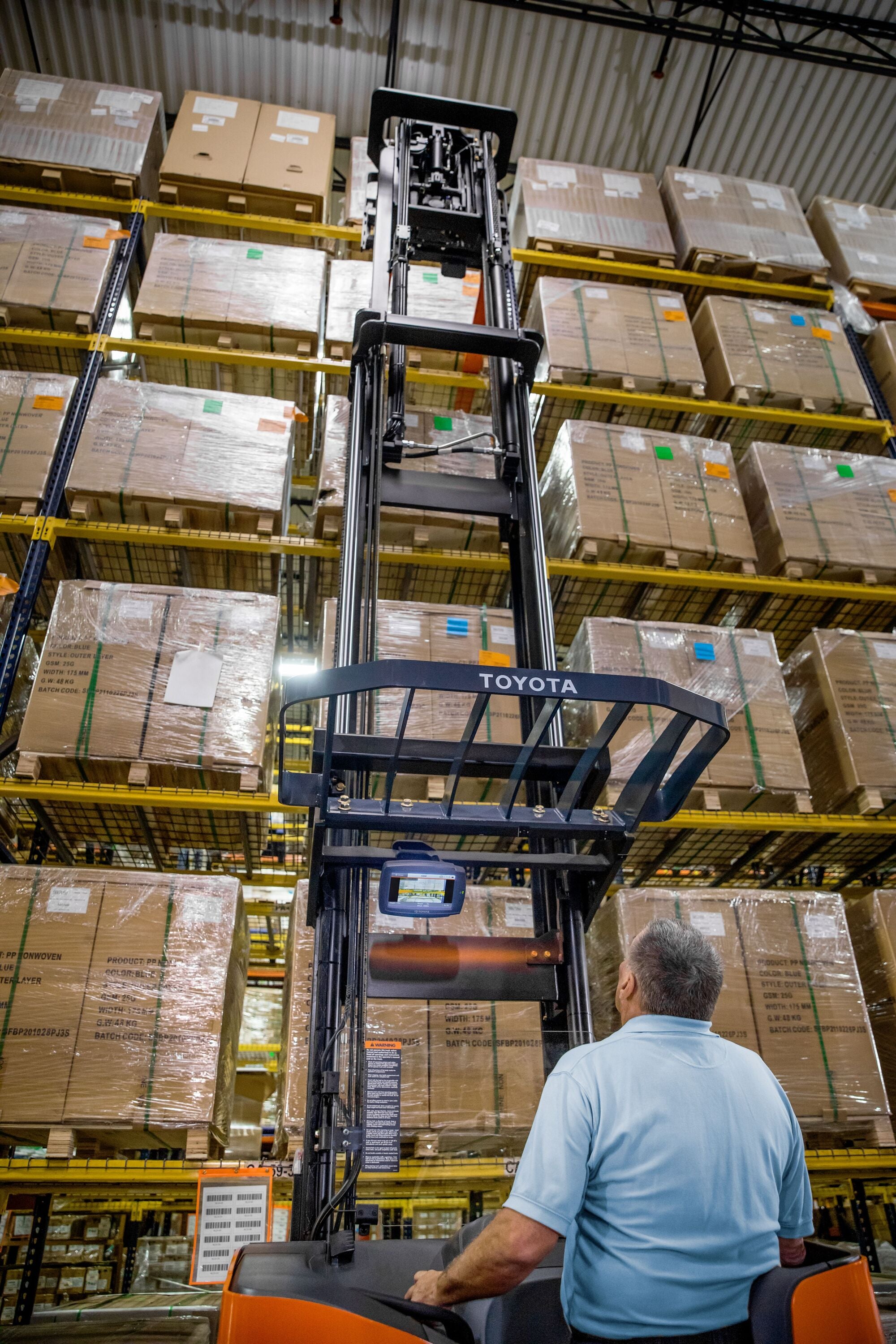

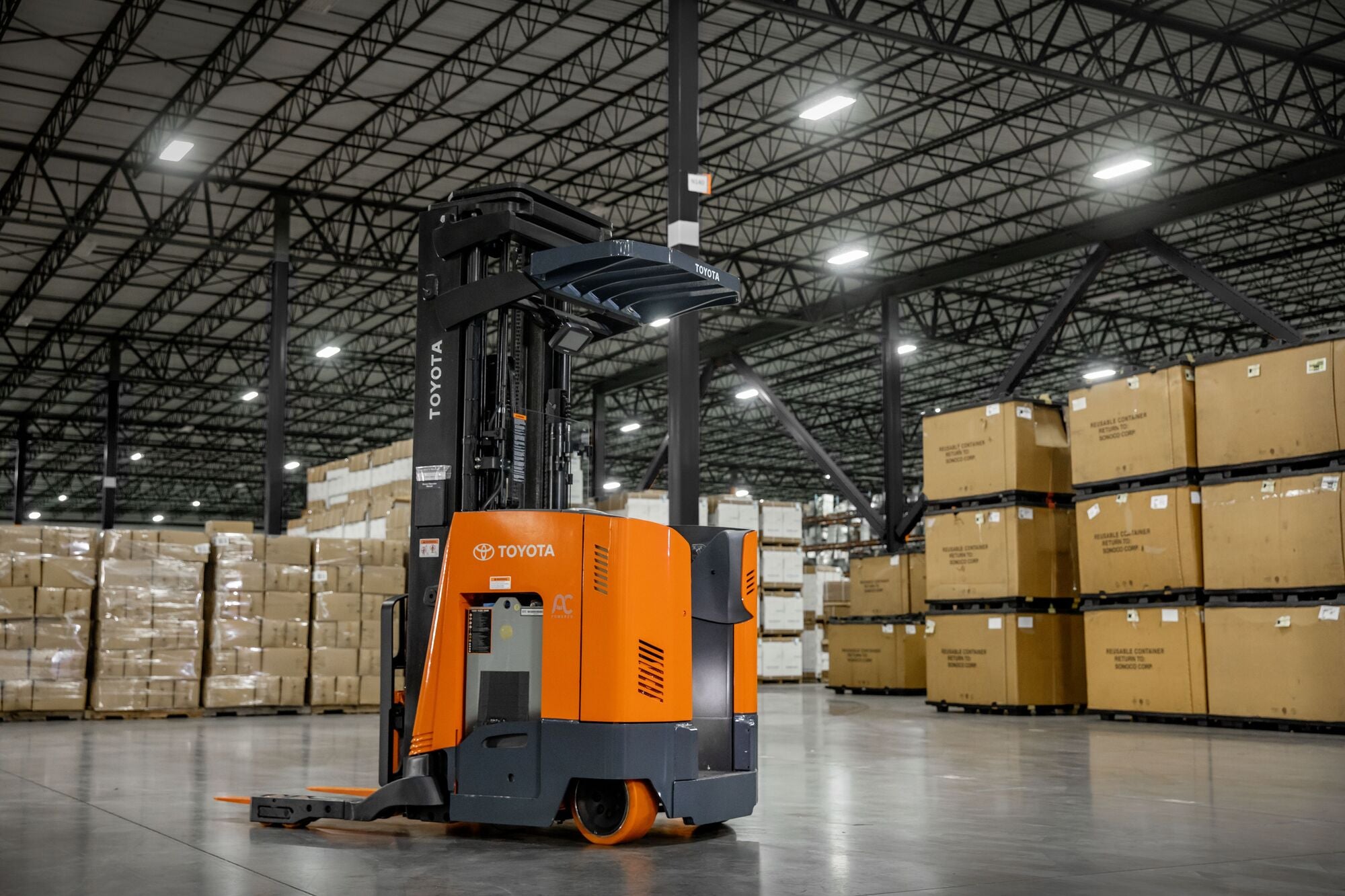

Toyota’s Electric Reach Truck delivers on efficiency and performance like never before. This Reach Truck comes with unique features coupled with the longstanding productivity, ergonomics, and low cost of ownership you expect from Toyota. The Toyota Reach Truck provides optimal visibility when reaching a second-level pallet position. The open view mast utilizes a 4-cylinder design to maximize forward visibility. Rigid mast construction helps minimize mast sway for precise load handling at maximum lift heights. This Reach Truck enables you to reach higher, work smarter, and be comfortably productive whether you’re moving from dock-to-stock, stock-to-dock, or anywhere in between.

REACH TRUCK SPECIFICATIONS

MODEL NUMBER	LOAD CAPACITY* (LBS.)	MAX. TRAVEL SPEED FULL LOAD (MPH)	MAX. LIFT SPEED FULL LOAD (FPM)	MAX. GRADEABILITY FULL LOAD (%)	BASIC RIGHT ANGLE STACK** (IN.)
RF1-BE1X35	3,500	5.5	40	7	N/A
RF1-BE1X40	4,000	5.5	40	7	N/A
RF1-BE2X25	2,500	6.5	40	7	N/A
RF1-BH1X35	3,500	7.0	70	7	N/A
RF1-BH1X40	4,000	7.0	65	7	N/A
RF1-BH1X45	4,500	7.0	65	7	N/A
RF1-BH2X25	2,500	7.0	75	7	N/A
RF1-BH2X30	3,000	7.0	75	5	N/A
RF1-SD1X35	3,500	6.0	78	7	N/A
RF1-SD1X45	4,500	7.5	80	7	N/A
RF1-SD2X32	3,200	7.0	110	7	N/A
RF1-SD1Z45	4,500	7.5	80	7	N/A
RF1-SD2Z32	3,200	6.0	110	7	N/A
RF1-HP1X45	4,500	6.0	95	5	N/A
RF1-HP2X32	3,200	7.0	110	5	N/A
RF1-HP2Z32	3,200	7.0	90	5	N/A
RF1-HP1Z45	4,500	6.0	95	5	N/A

Length to Fork Face 54-71.8 in

Mast Lowered Height 115-184 in

Overall Width 42.5-49.5 in

Performance

0

Emissions

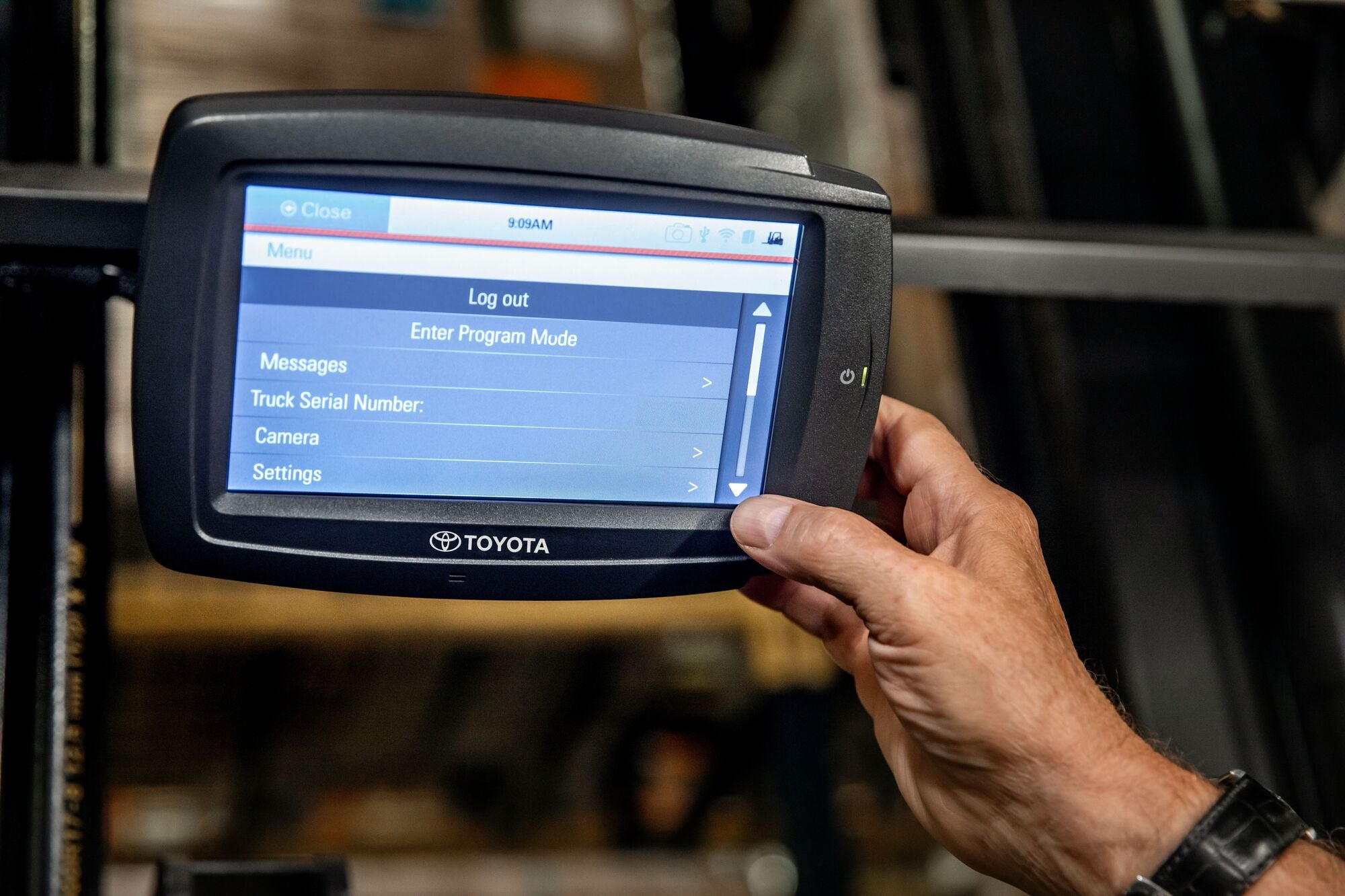

7"

Touchscreen Display
AC

Drive and Lift Motors
