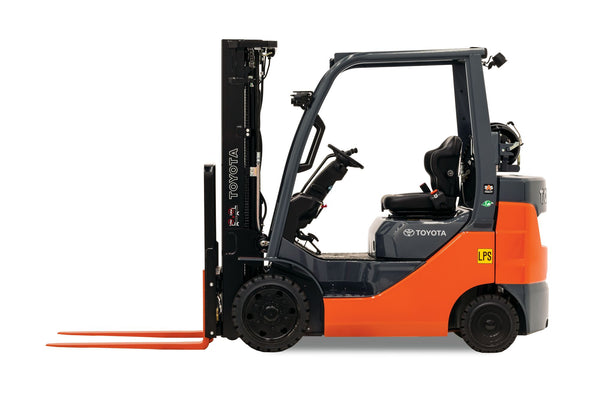

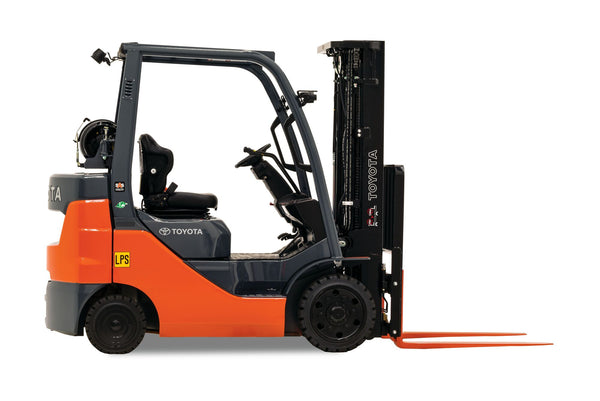

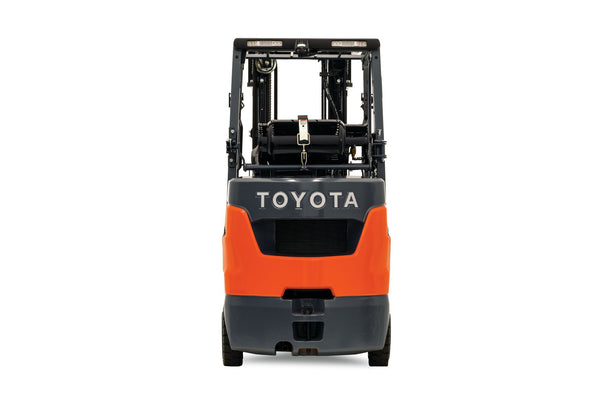

Toyota Core IC Cushion Forklift

Core IC Cushion Forklift

Dash-mounted instrument display
11.8″ diameter two-spoke steering wheel
Load Sensing Hydrostatic Steering
Heavy-duty non-slip rubber floor mat
12″ dual operator assist grips
Low, wide-entry steps
4-Way adjustable vinyl full-suspension seat

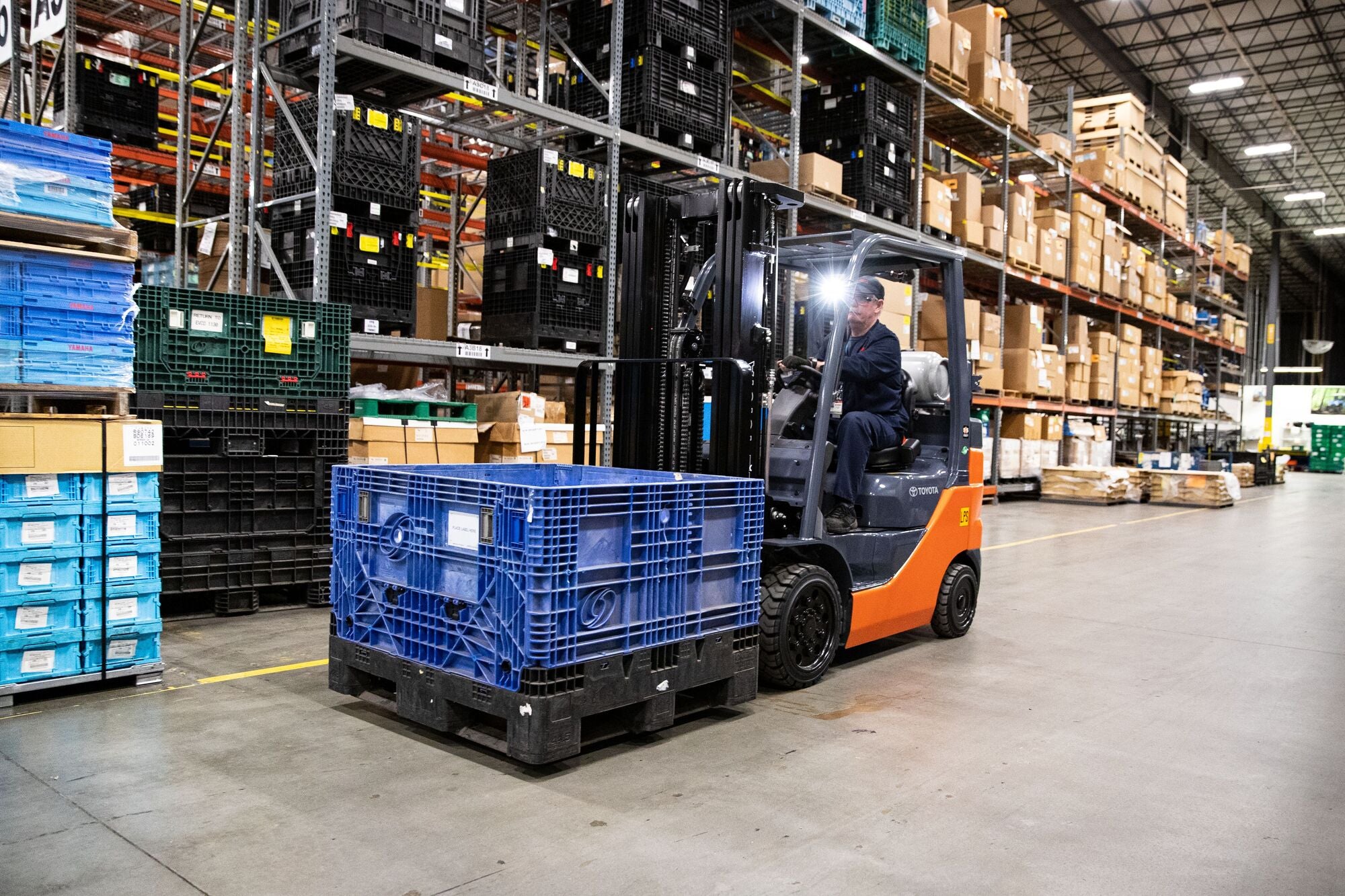

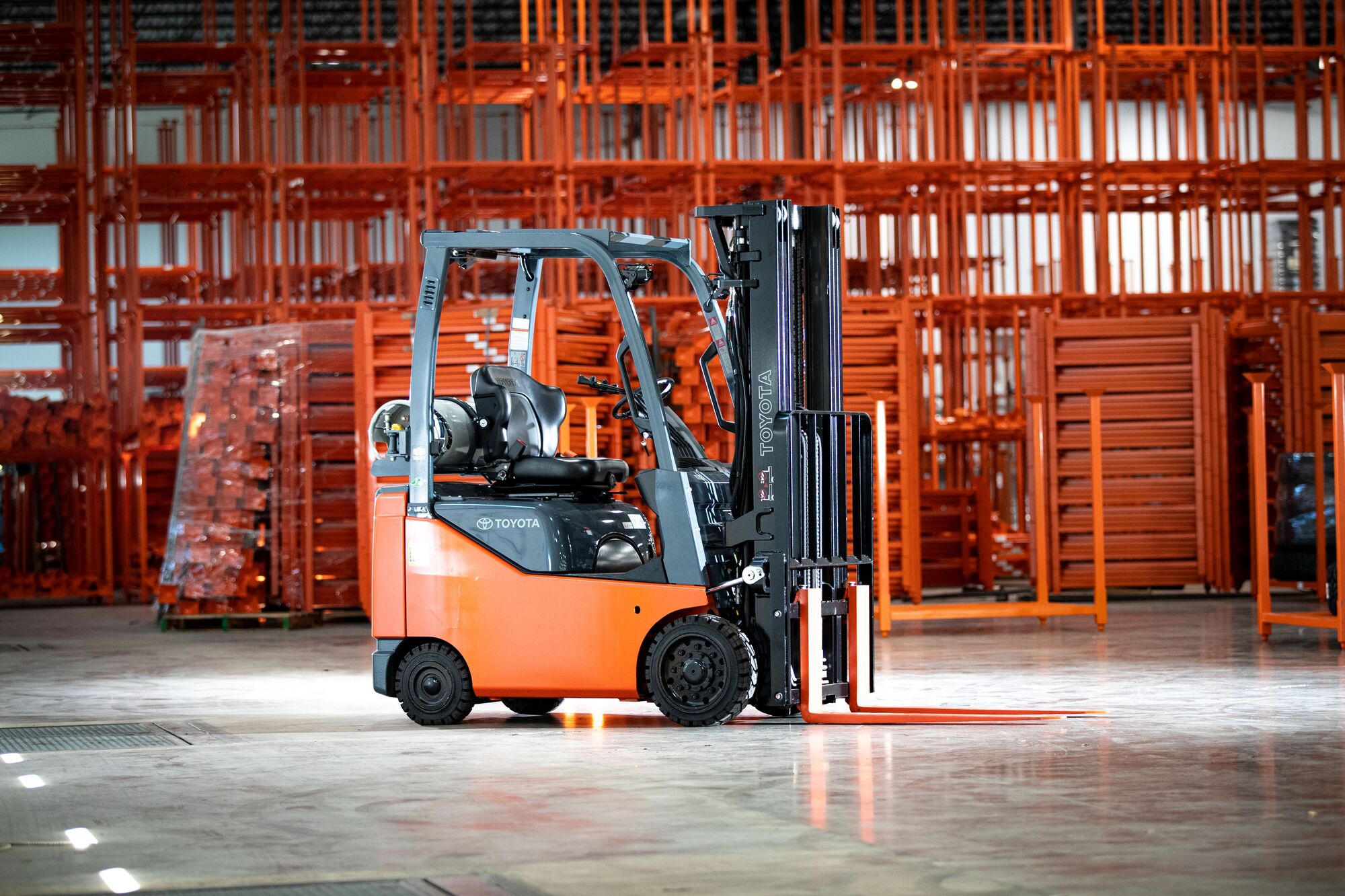

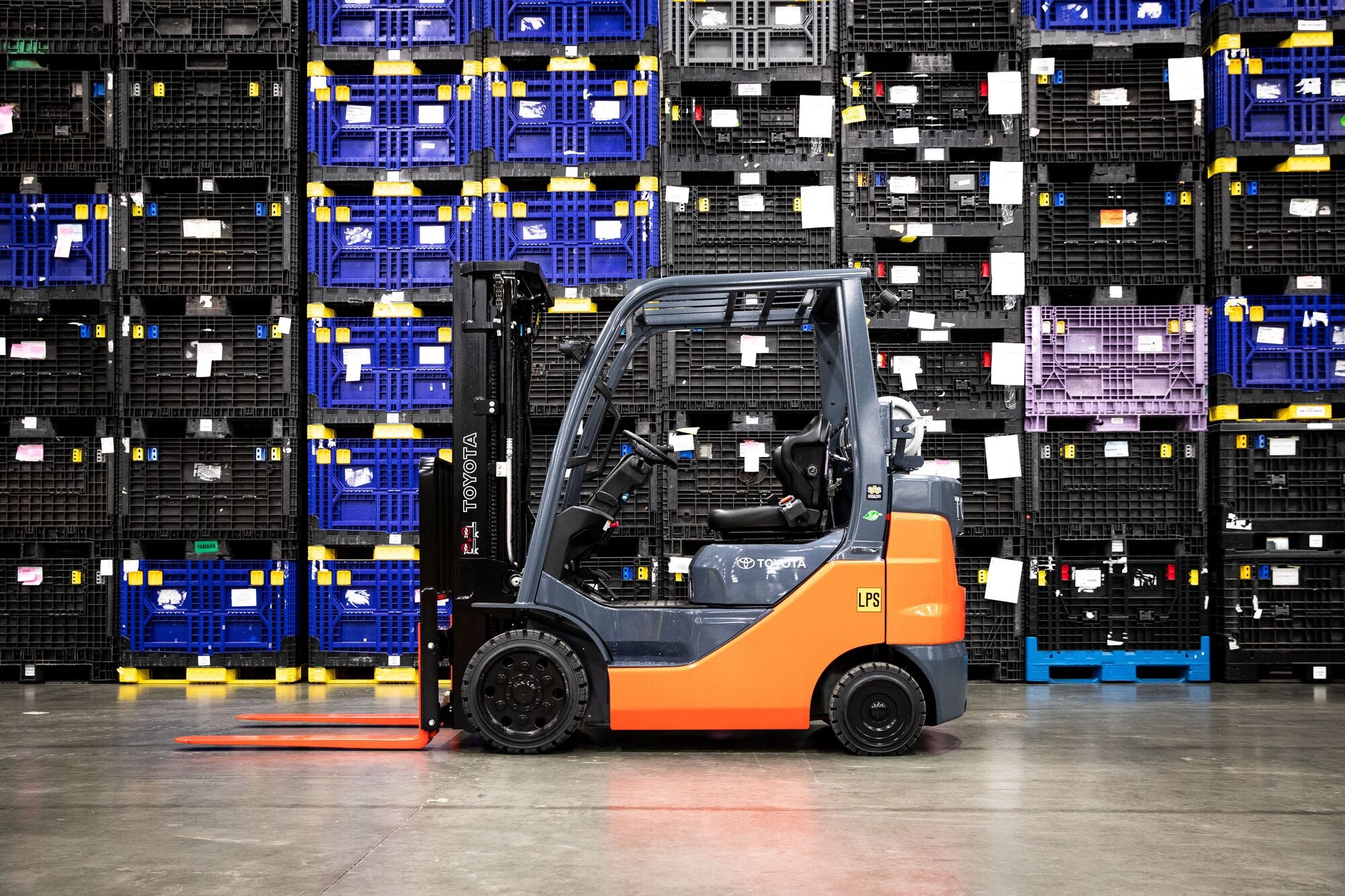

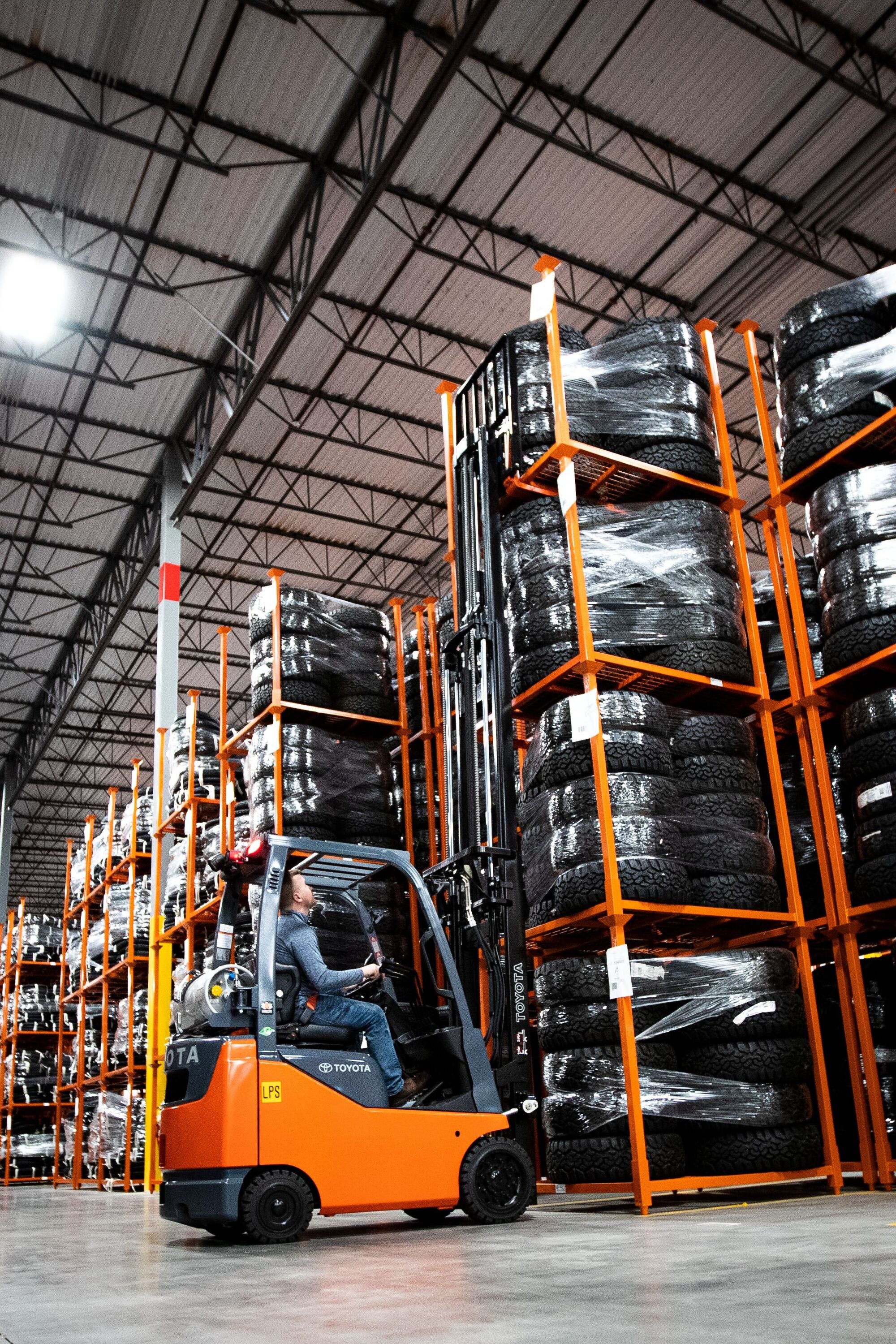

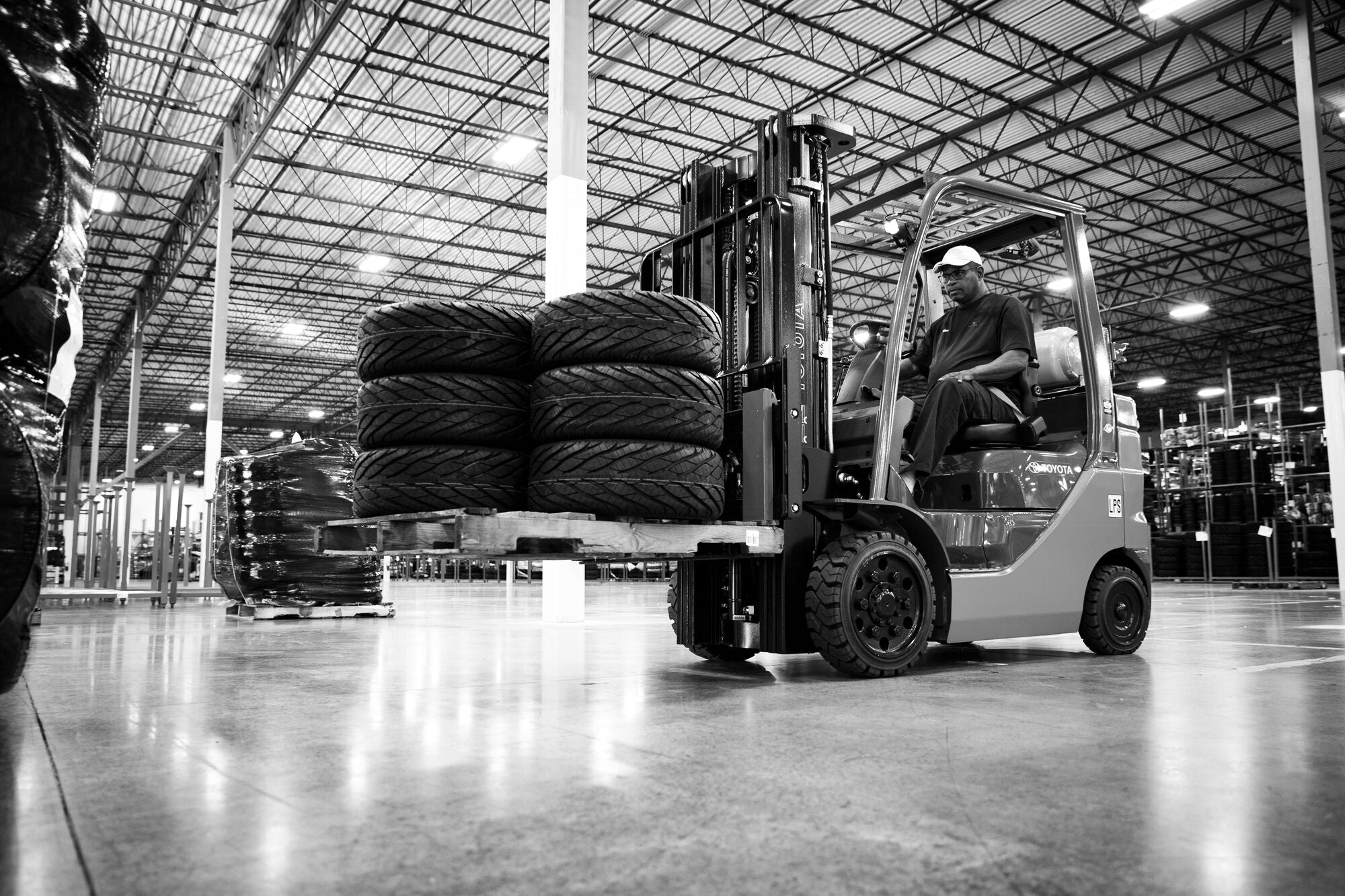

Toyota’s Core IC Cushion Forklift is one of the most popular forklifts in North America. Warehousing and distribution applications, the auto industry, general manufacturing plants and retail storefronts often utilize Toyota’s Core IC Cushion for its extreme versatility. Powerful enough to lift up to 6,500 lbs. yet capable of navigating in 12 foot aisles, the Core IC Cushion forklift is a trusted multipurpose forklift. Model numbers: 8FGCU15-32 | 8FGCSU20

CORE IC CUSHION FORKLIFT SPECIFICATIONS

MODEL NUMBER	LOAD CAPACITY* (LBS.)	MAX. TRAVEL SPEED FULL LOAD (MPH)	MAX. LIFT SPEED FULL LOAD (FPM)	MAX. GRADEABILITY FULL LOAD (%)	BASIC RIGHT ANGLE STACK** (IN.)
50-8FGCU15	3,000	10.9	110	43	83.5
50-8FGCU18	3,500	10.9	110	40	86
50-8FGCSU20	4,000	10.9	110	35	87.6
50-8FGCU20	4,000	10.6	120	35	92.3
50-8FGCU25	5,000	10.6	120	30	94.3
50-8FGCU30	6,000	10.6	98	24	97.5
50-8FGCU32	6,500	10.6	98	24	98.8

Length to forkface 82.3 - 98.6 in

Overhead Guard Height 80.1 - 80.7 in

Overall Width 37.2 - 43.7 in

Performance

48

HORSEPOWER
10.9

MPH TRAVEL SPEED
#1

SELLING IC CUSHION FORKLIFT
