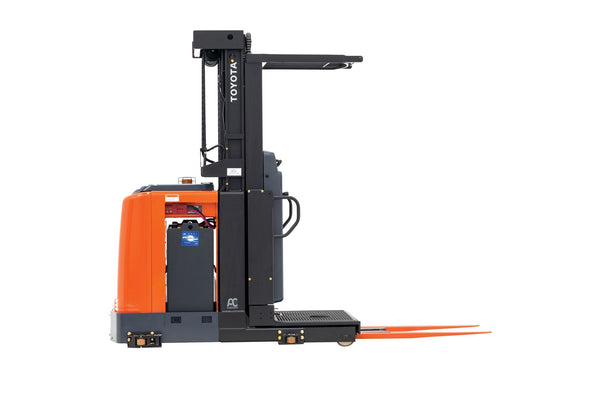

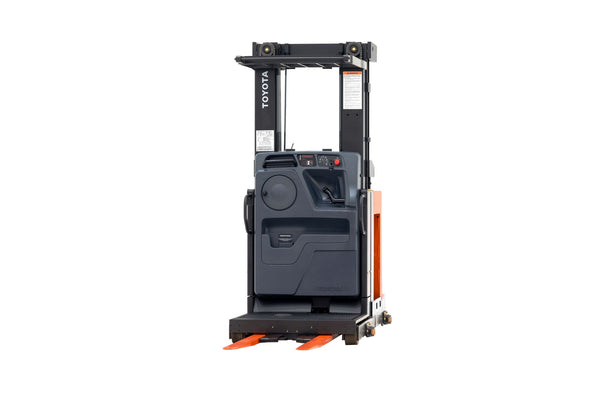

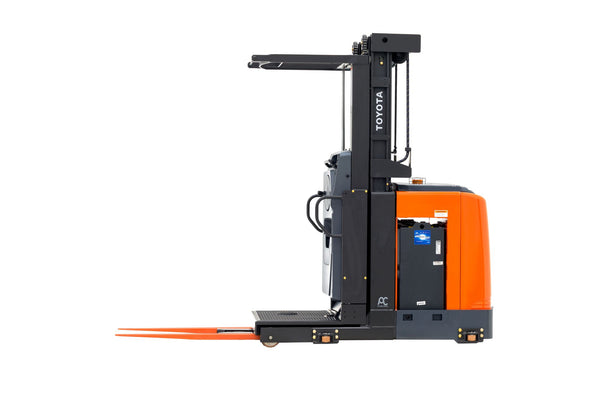

Toyota Order Picker

Toyota Order Picker

  • Rail & Wire Guidance Systems Available

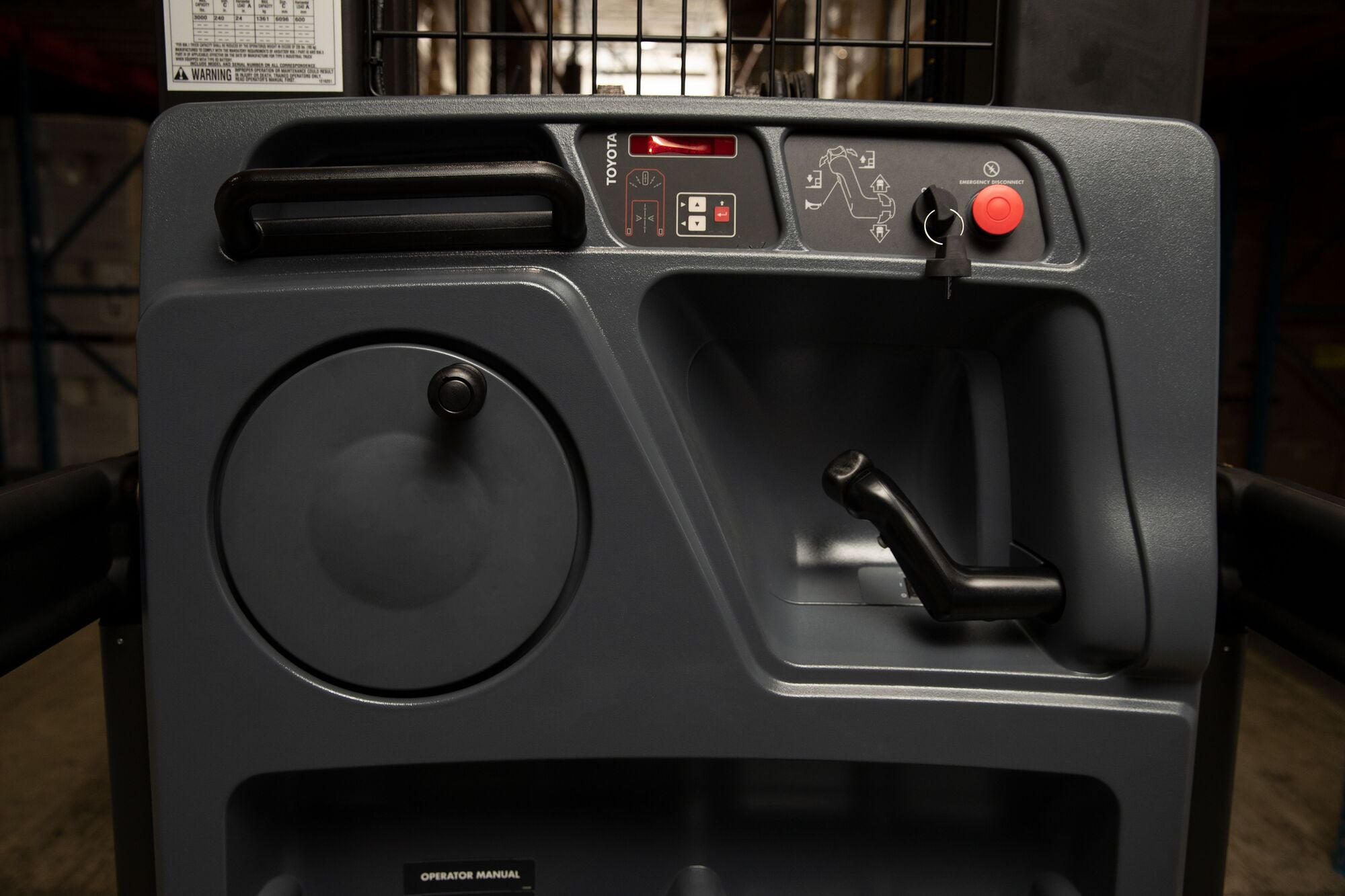

  • On-Board Diagnostics
  • 24V or 36V Electrical System
  • Programmable Performance

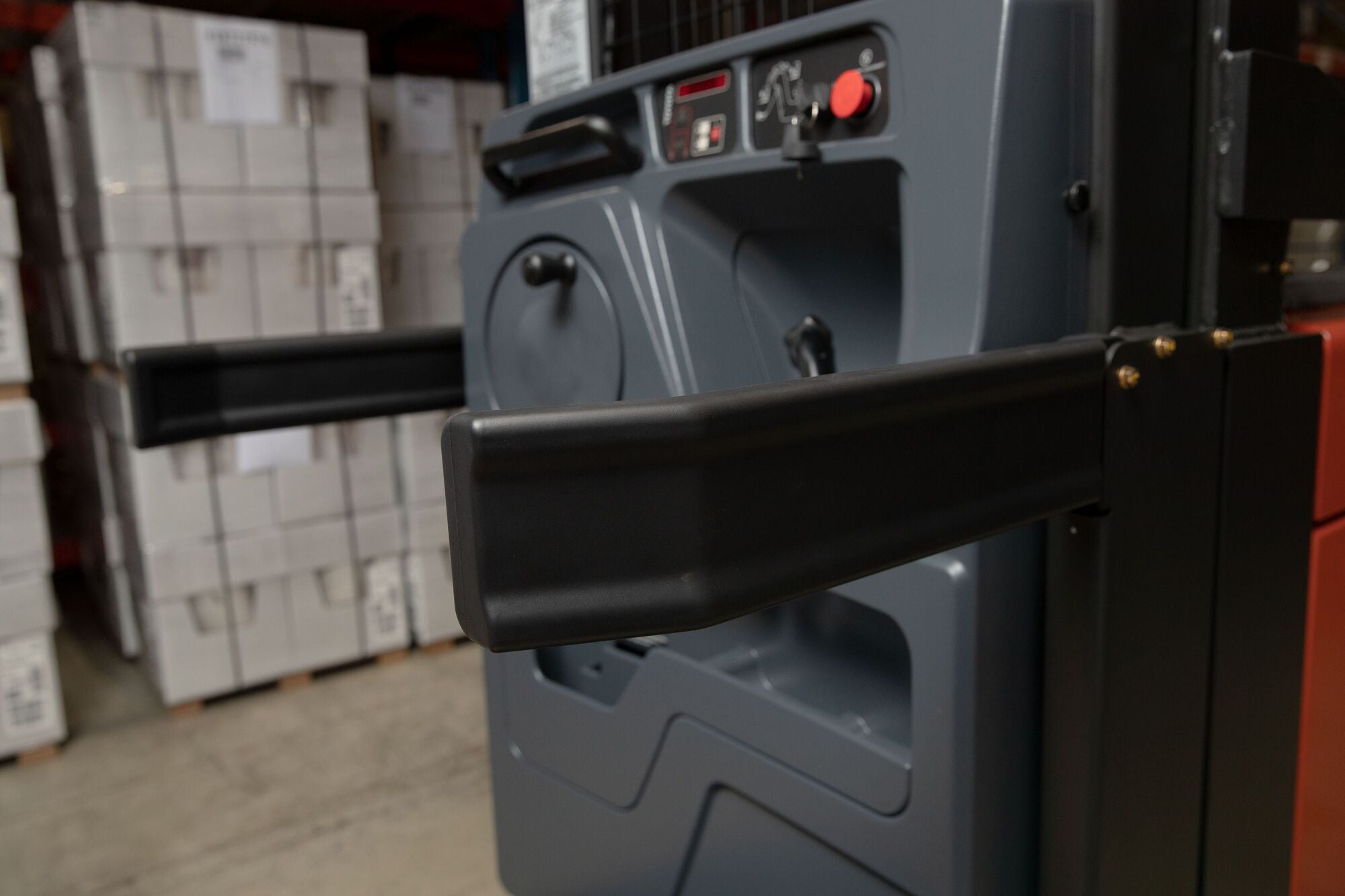

  • Automatic Locking Pallet Clamp

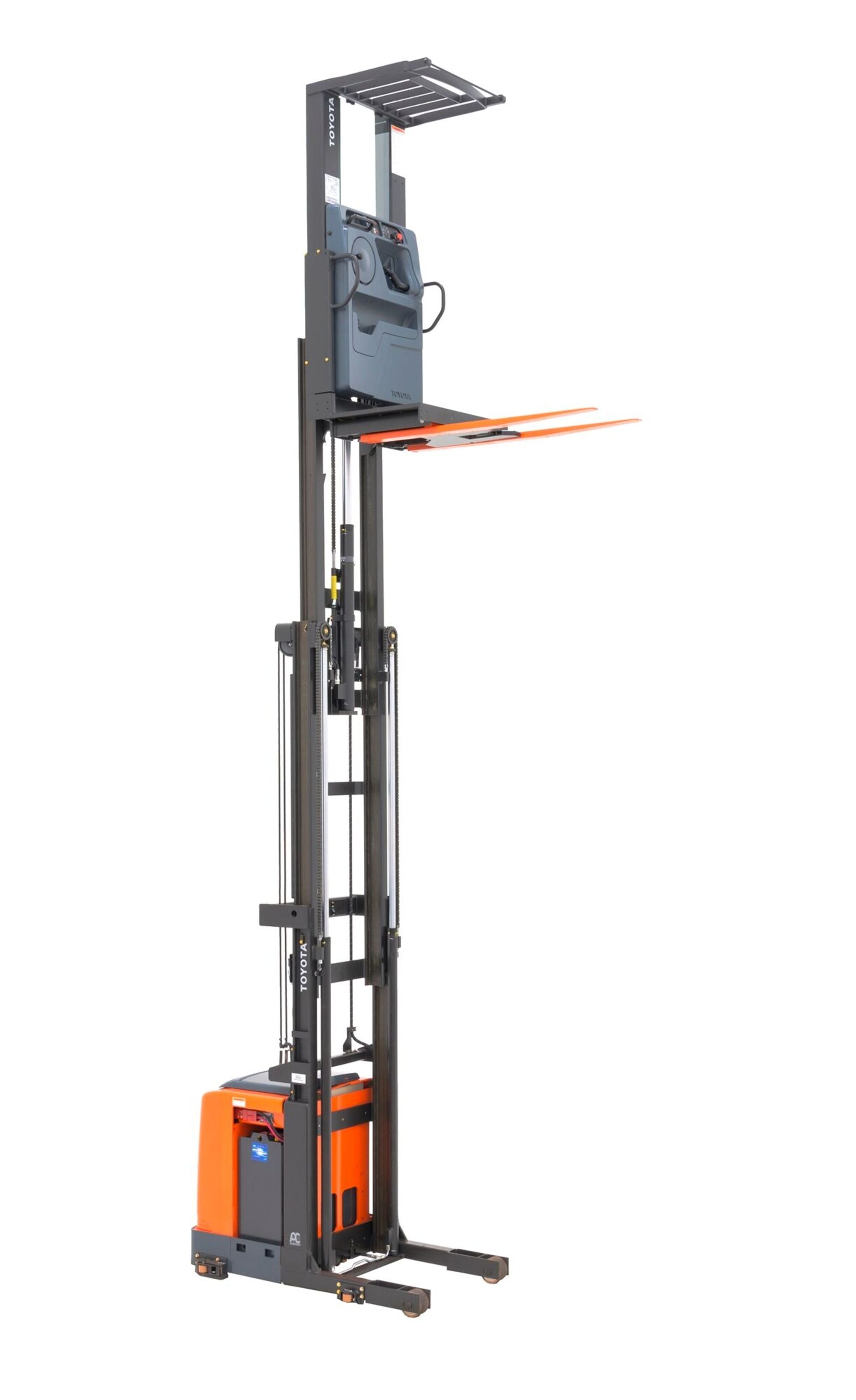

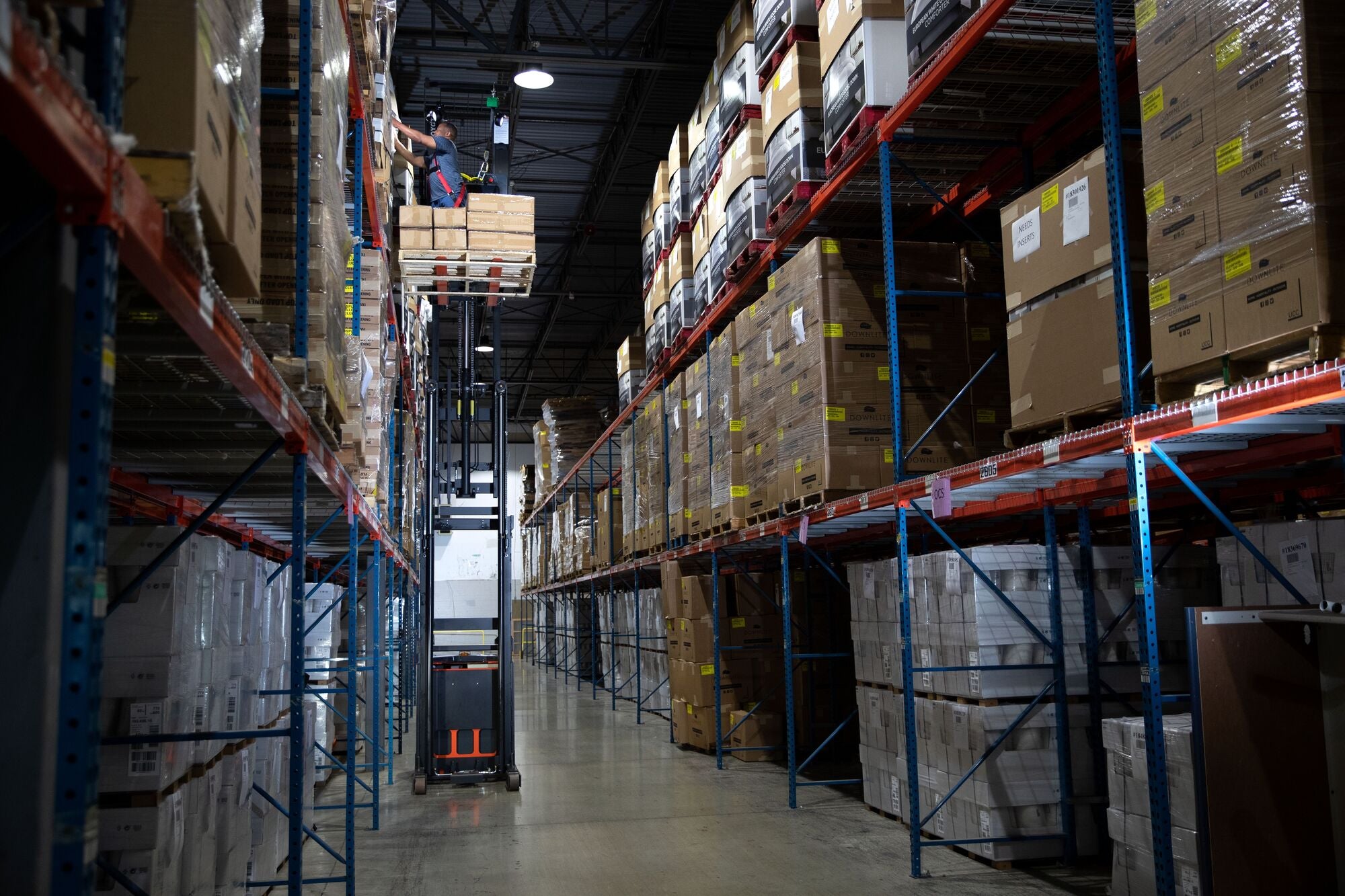

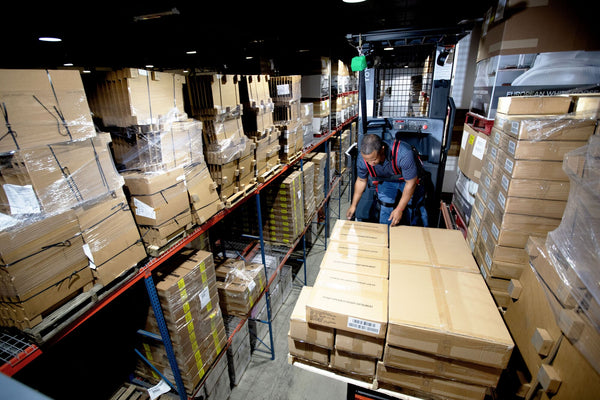

The Toyota Order Picker solves even the most challenging high-reaching warehouse needs. With lift heights up to 390 inches and cushioned mast staging, it helps operators comfortably reach your tallest racks for order picking. The Toyota Order Picker easily maneuvers narrow aisles in warehouses with minimized rack impact during case picking thanks to optional wire guidance and double rail guidance systems. You’ll also drive to optimal efficiency with optional Lift Logic technology that continuously monitors lift height, allowing for optimized travel speed at various lift heights while still maintaining safe operation.

ORDER PICKER SPECIFICATIONS

MODEL NUMBER LOAD CAPACITY* (LBS.) MAX. TRAVEL SPEED FULL LOAD (MPH) MAX. LIFT SPEED FULL LOAD (FPM) MAX. GRADEABILITY FULL LOAD (%) BASIC RIGHT ANGLE STACK** (IN.)
8BPUE15 3,000 6.5 33 N/A N/A
8BPU15 3,000 6.5 57 N/A N/A
8BPUH15 3,000 6.5 80 N/A N/A
Length to forkface 74 - 83.75 in
Overhead Guard Height 88.25 in
Overall Width 40 - 60 in

Performance

  • 36V

    Model Available

  • 390 in.

    Lift Height

  • Industry-Leading

    Lift/Lower Speeds
