Toyota Tora-Max® Straddle Stacker

The Toyota Tora-Max® Straddle Stacker delivers powerful, flexible stacking with up to 4,000 lb lifting capacity and adjustable base legs to handle a wide range of pallet sizes. Built for smooth control and reliable performance, it’s ideal for warehouses, manufacturing, and retail environments.

Tora-Max® Straddle Stacker

  • Up to 4,000 lb lifting capacity
  • Adjustable base legs (38–50’) for varied pallet sizes
  • AC drive motor for smooth, low‑maintenance operation
  • Electric lift and lower controls
  • Up to 207″ maximum lift height
  • On‑board charger and 24 V battery system

The Toyota Tora-Max® Straddle Stacker is built to handle heavier loads with greater flexibility. Adjustable base legs allow operators to accommodate a wide range of pallet sizes, while the AC drive system delivers smooth, reliable performance. Designed for warehouses, manufacturing, and retail, it provides efficient stacking in demanding environments.

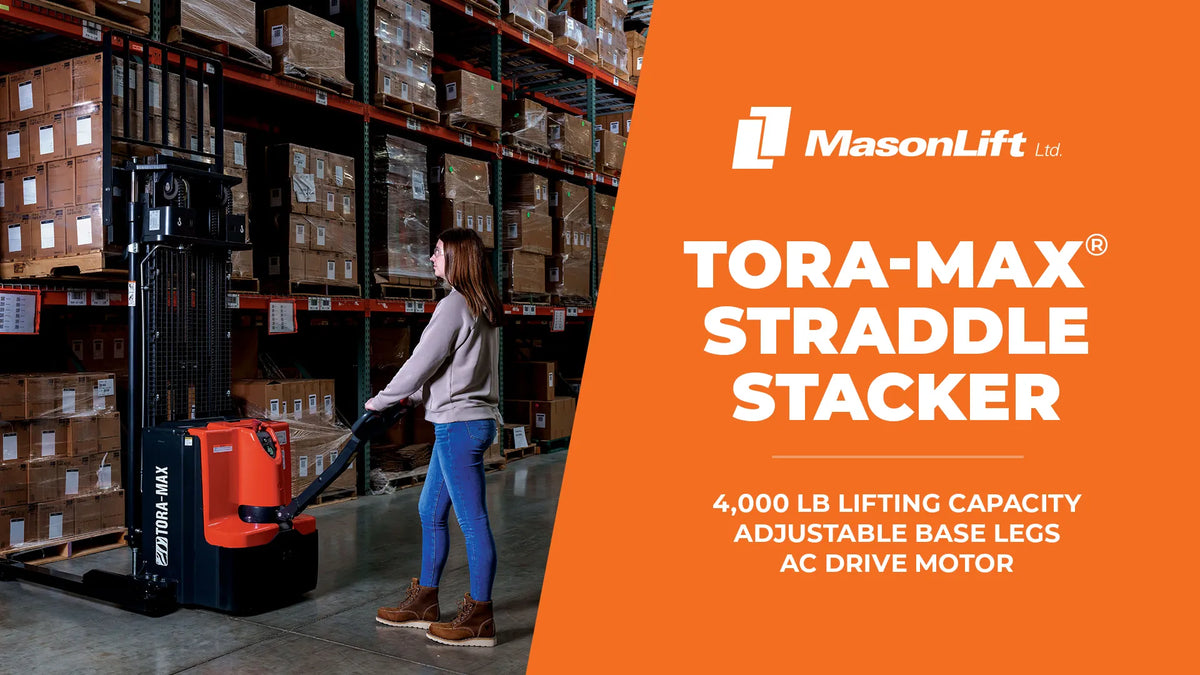

Play Video

Tora-Max® Straddle Stacker Specifications

Model Load Capacity (lbs) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in)
2TSB35 3,500 3.4 25.59 6 96
2TSB40 4,000 3.4 25.59 6 96.3
Overall Length 82-82.4 in
Overall Height 77.1-95.6 in
Overall Width 58 in

Performance

  • 4,000

    Max Load Capacity (lb)

  • 38-50

    Adjustable base legs (in)

  • 207

    Max Lift Height (in)

Toyota Tora-Max Straddle Stacker

RECOMMENDED INDUSTRIES

Industries

General Manufacturing

Industries

Beverage

Industries

General Warehouse Solutions

FAQs | Toyota Tora-Max® Straddle Stacker

A straddle stacker is used to lift and stack palletized loads where the legs must straddle the load. This makes it ideal for handling a wider range of pallet types, including closed-bottom pallets and non-standard loads.

The Toyota Tora-Max® Straddle Stacker offers lifting capacities ranging from 3,500 to 4,000 lb, making it suitable for heavier light to medium duty material handling tasks.

A straddle stacker uses adjustable base legs that extend around the load, allowing it to handle more pallet types. Walkie stackers typically require open-bottom pallets, while straddle stackers offer more flexibility.

Depending on the mast configuration, the Tora-Max® Straddle Stacker can reach lift heights of up to 207 inches, allowing for efficient vertical storage in warehouse environments.

Straddle stackers are commonly used in warehousing, manufacturing, retail, distribution, and beverage operations where handling varied pallet sizes and heavier loads is required.

Yes, it features adjustable base legs (typically 38 to 50 inches), allowing operators to handle different pallet sizes and improve load stability during operation.

The Tora-Max® Straddle Stacker is equipped with an AC drive motor, providing smooth acceleration, reliable performance, and reduced maintenance compared to traditional DC systems.

Yes, it features ergonomic controls, fingertip operation, and electric lift and lower functions, helping operators move and stack loads efficiently with minimal fatigue.

While larger than compact walkie stackers, the Tora-Max® Straddle Stacker is still designed for manoeuvrability and can operate effectively in standard warehouse aisle configurations.

You can request pricing, schedule a demo, or purchase the Tora-Max® Straddle Stacker through Liftow, an authorized Toyota Material Handling dealer serving businesses across British Columbia.

×
