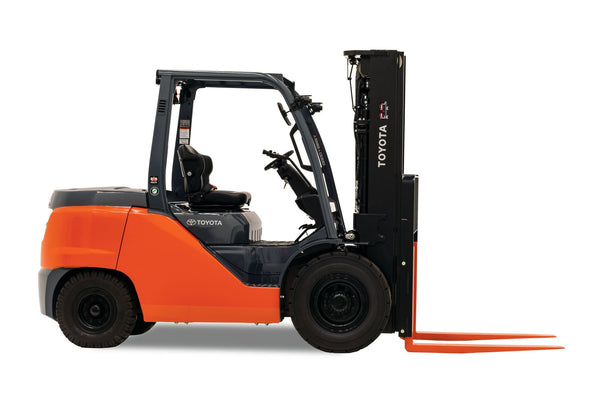

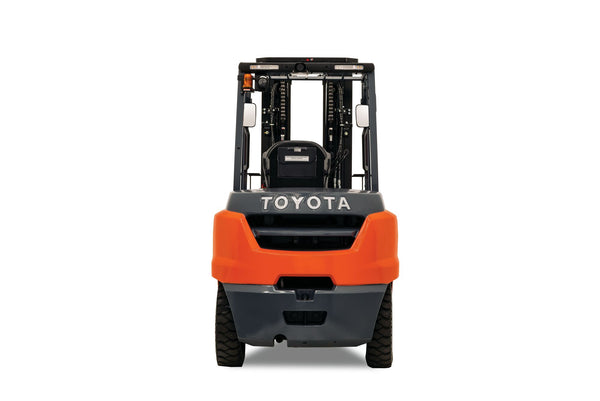

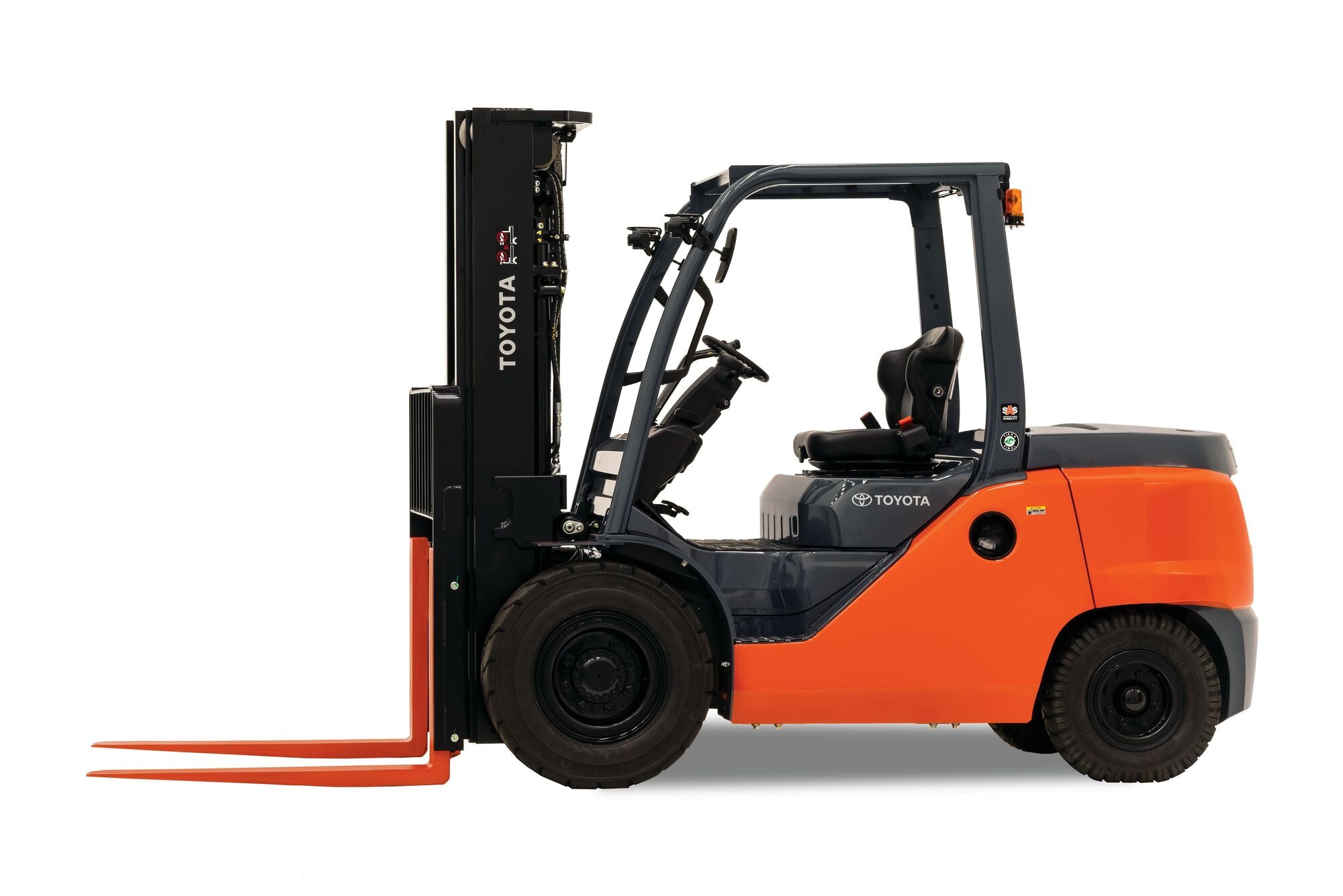

Toyota Mid IC Pneumatic Forklift

Mid IC Pneumatic Forklift

Dash-mounted instrument display
11.8″ diameter two-spoke steering wheel
Load-sensing power steering
Cowl-mount hydraulic control levers with rubber boot covers
12″ dual operator assist grips
Low wide-entry steps
4-Way adjustable vinyl full-suspension seat

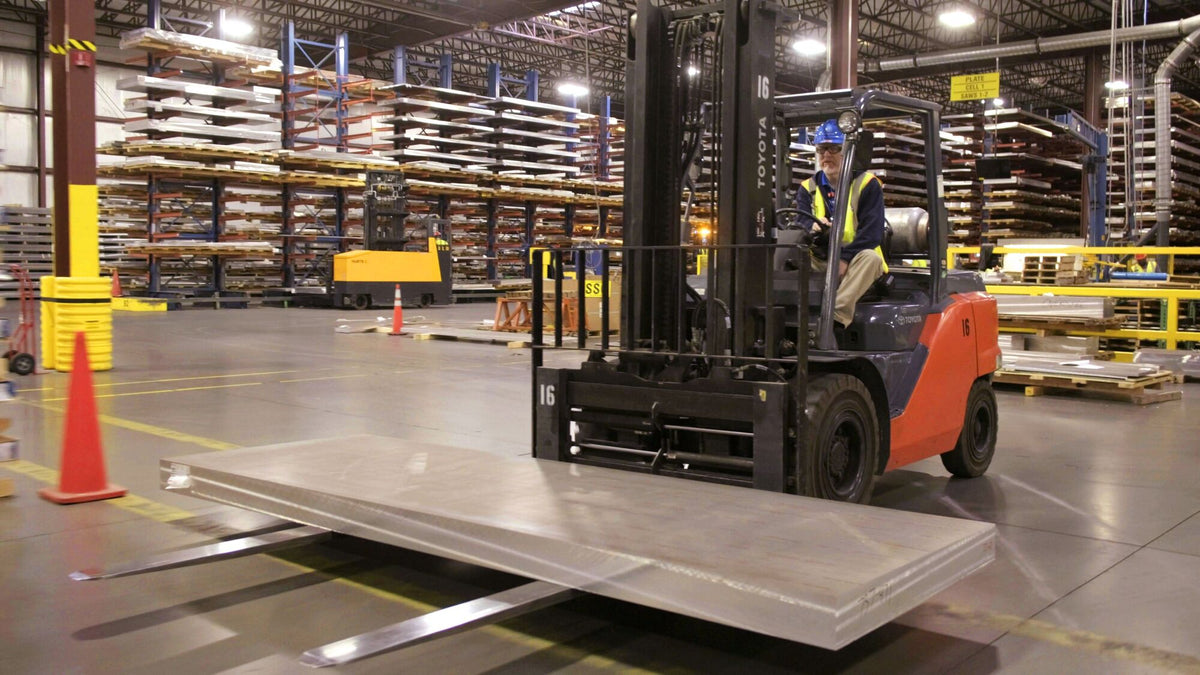

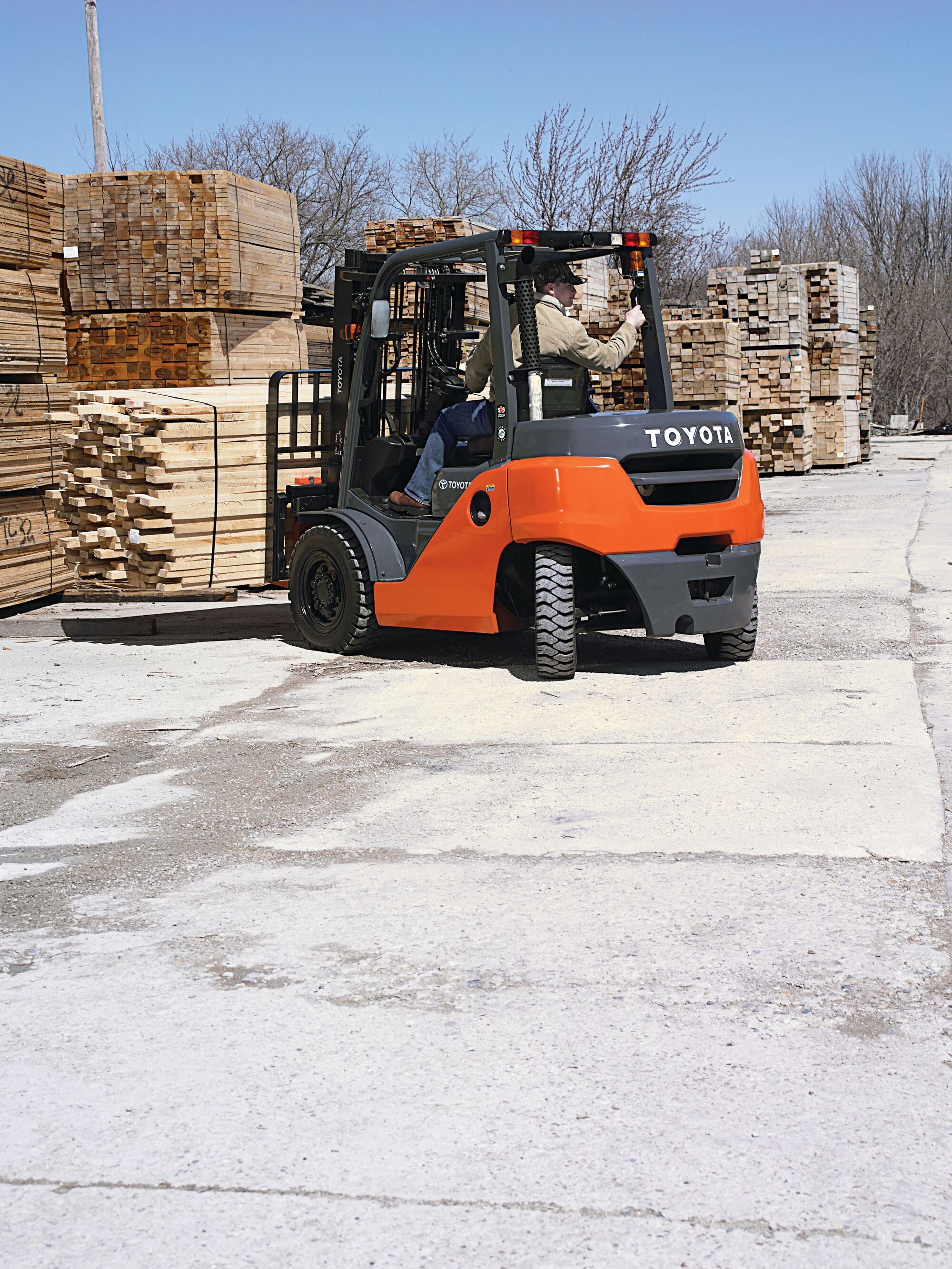

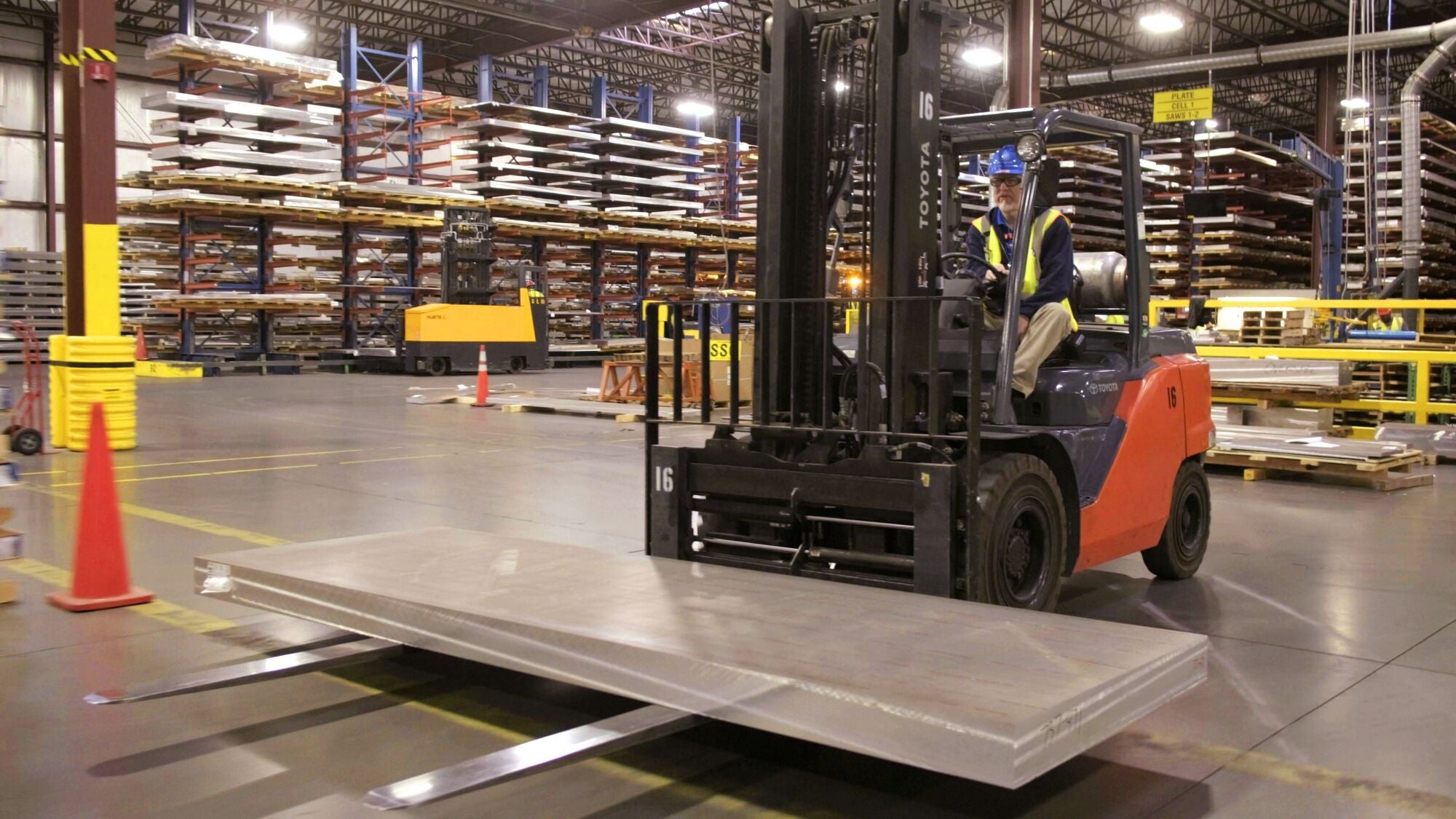

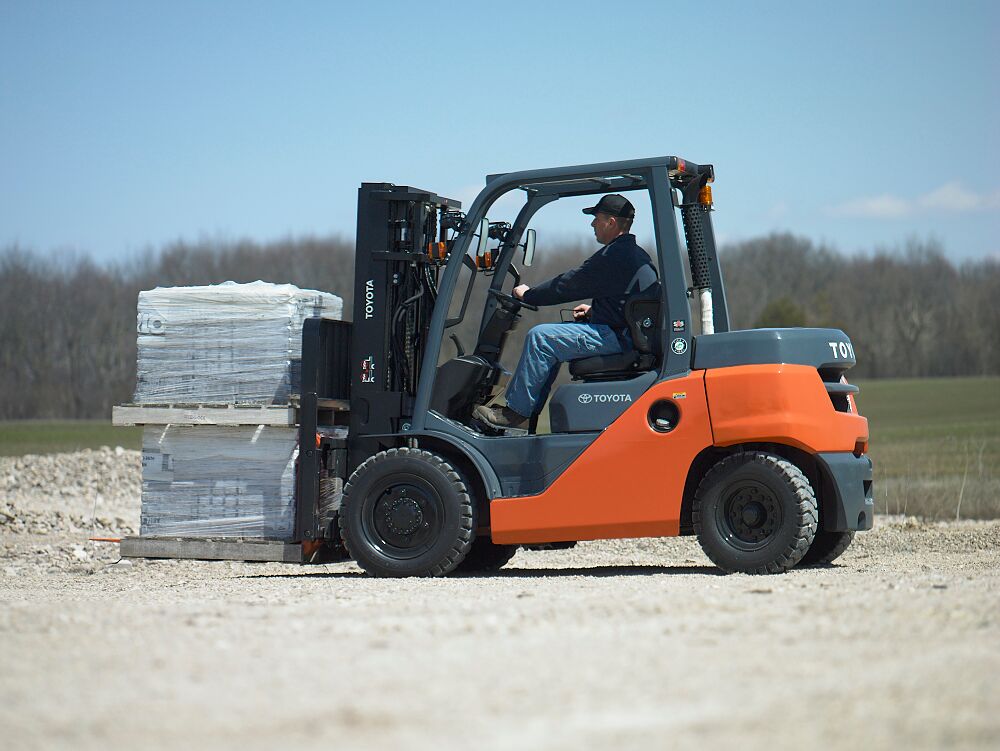

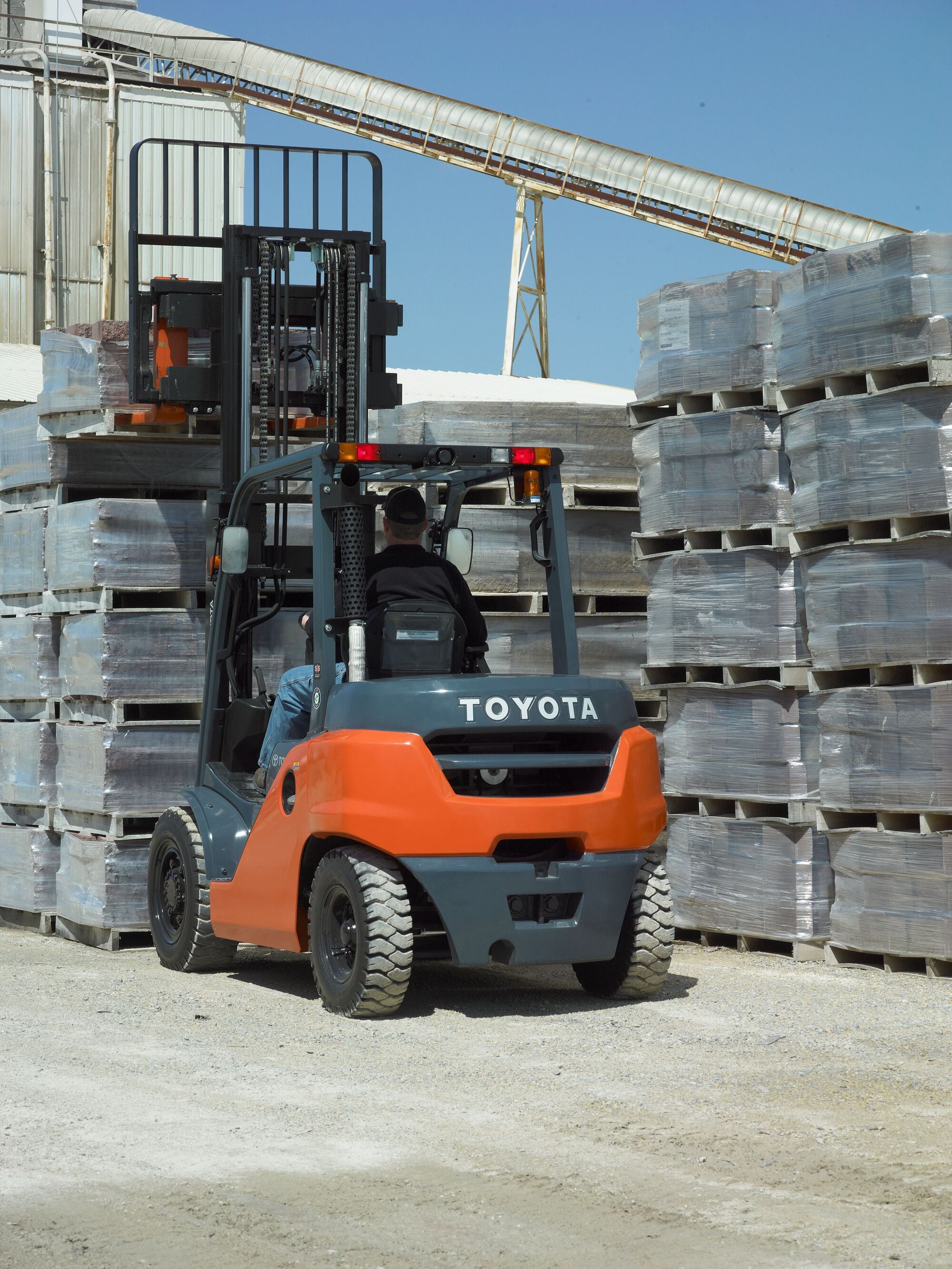

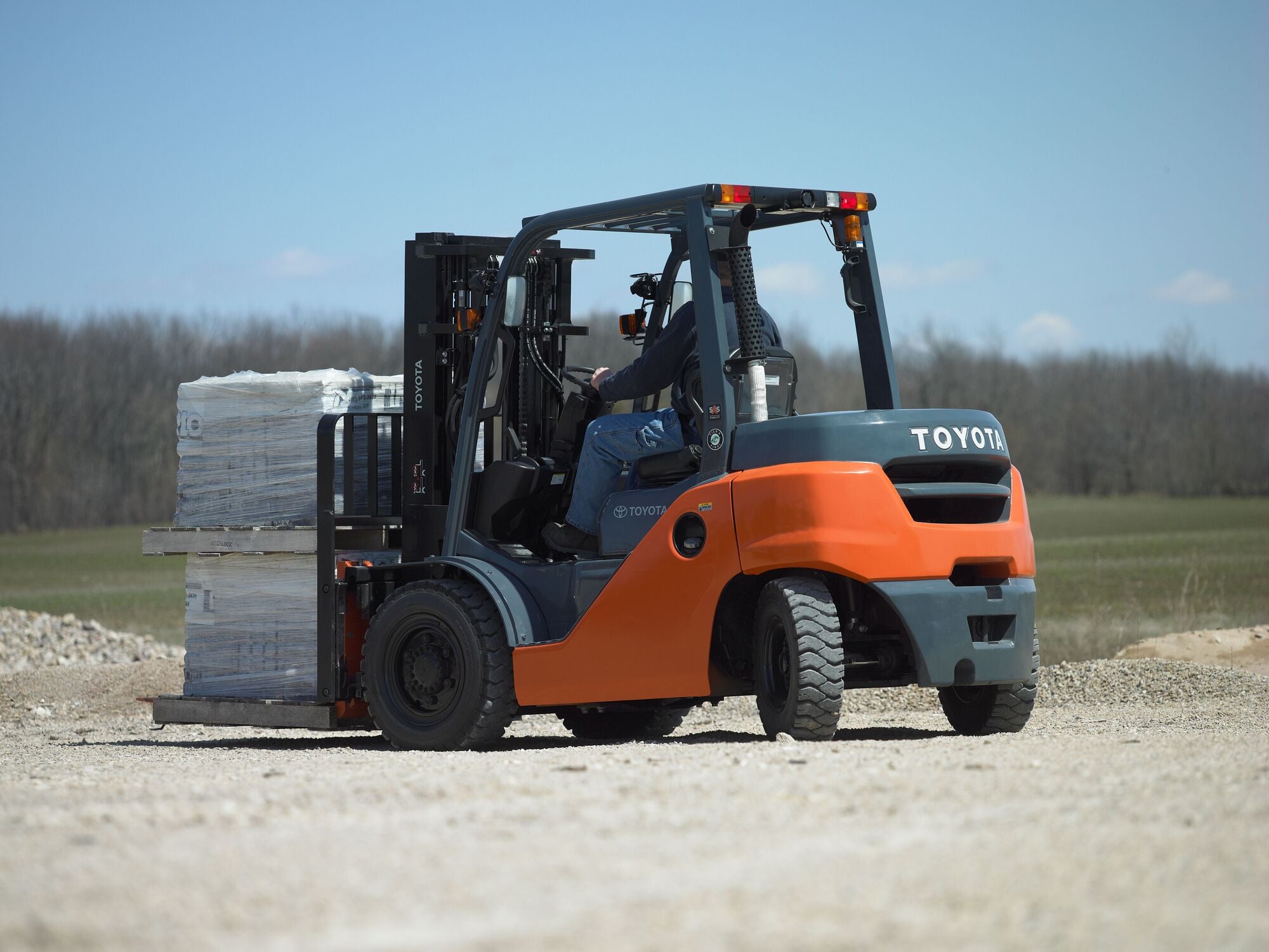

The Toyota Mid IC Pneumatic Forklift, with a capacity of 8,000 – 11,000 lbs., is a premier material handling solution for most mid-capacity outdoor applications. Powerful, durable and engineered with ergonomics in mind, the Mid IC Pneumatic Forklift is ideal for long days in the lumber yard, on construction sites and most other outdoor applications.

MID IC PNEUMATIC FORKLIFT SPECIFICATIONS

MODEL NUMBER	LOAD CAPACITY* (LBS.)	MAX. TRAVEL SPEED FULL LOAD (MPH)	MAX. LIFT SPEED FULL LOAD (FPM)	MAX. GRADEABILITY FULL LOAD (%)	BASIC RIGHT ANGLE STACK** (IN.)
8FD35U	8,000	13.1	103	43	122.5
8FG35U	8,000	13.7	103	42	122.5
8FD40U	9,000	13.1	103	39	124.5
8FG40U	9,000	13.7	103	38	124.5
8FD45U	10,000	13.1	94	35	129.5
8FG45U	10,000	13.7	94	34	129.5
8FD50U	11,000	13.1	94	31	132.5
8FG50U	11,000	13.7	94	31	132.5
