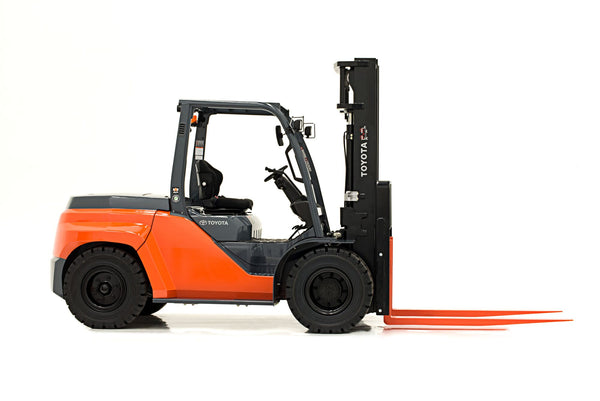

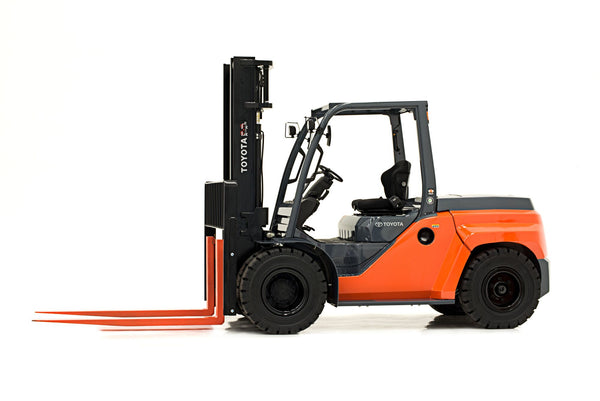

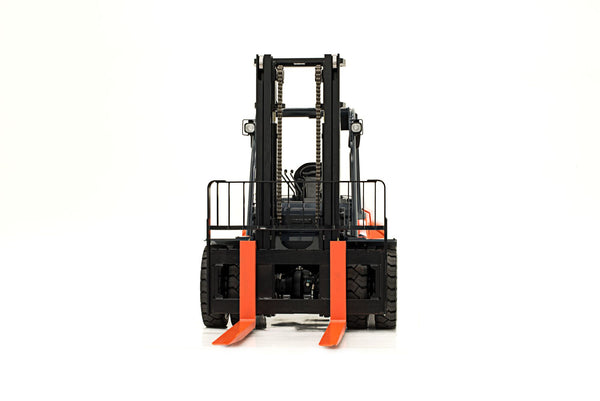

Toyota Large IC Pneumatic Forklift

Large IC Pneumatic Forklift

  • Dash-mounted instrument display
  • 11.8″ diameter two-spoke steering wheel
  • Load-sensing power steering
  • Cowl-mount hydraulic control levers
  • 12″ dual operator assist grips
  • Low wide-entry steps
  • 4-Way adjustable vinyl full-suspension seat

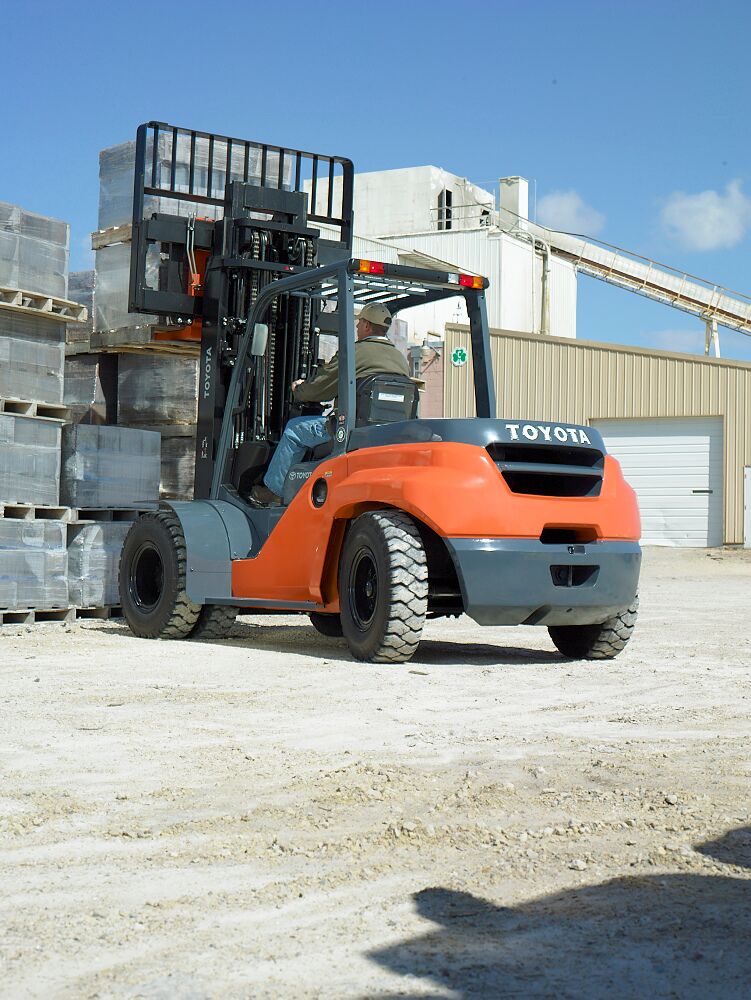

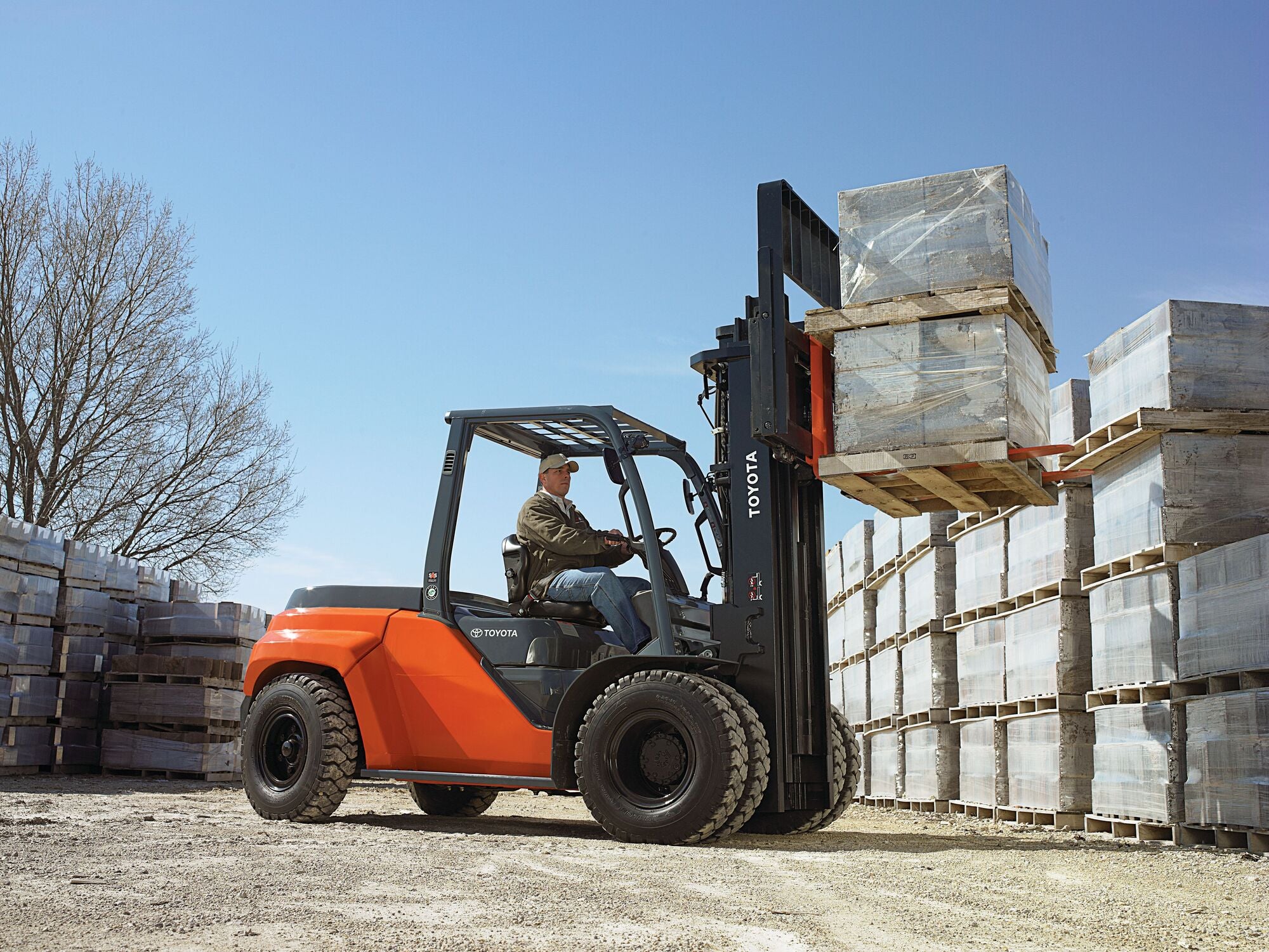

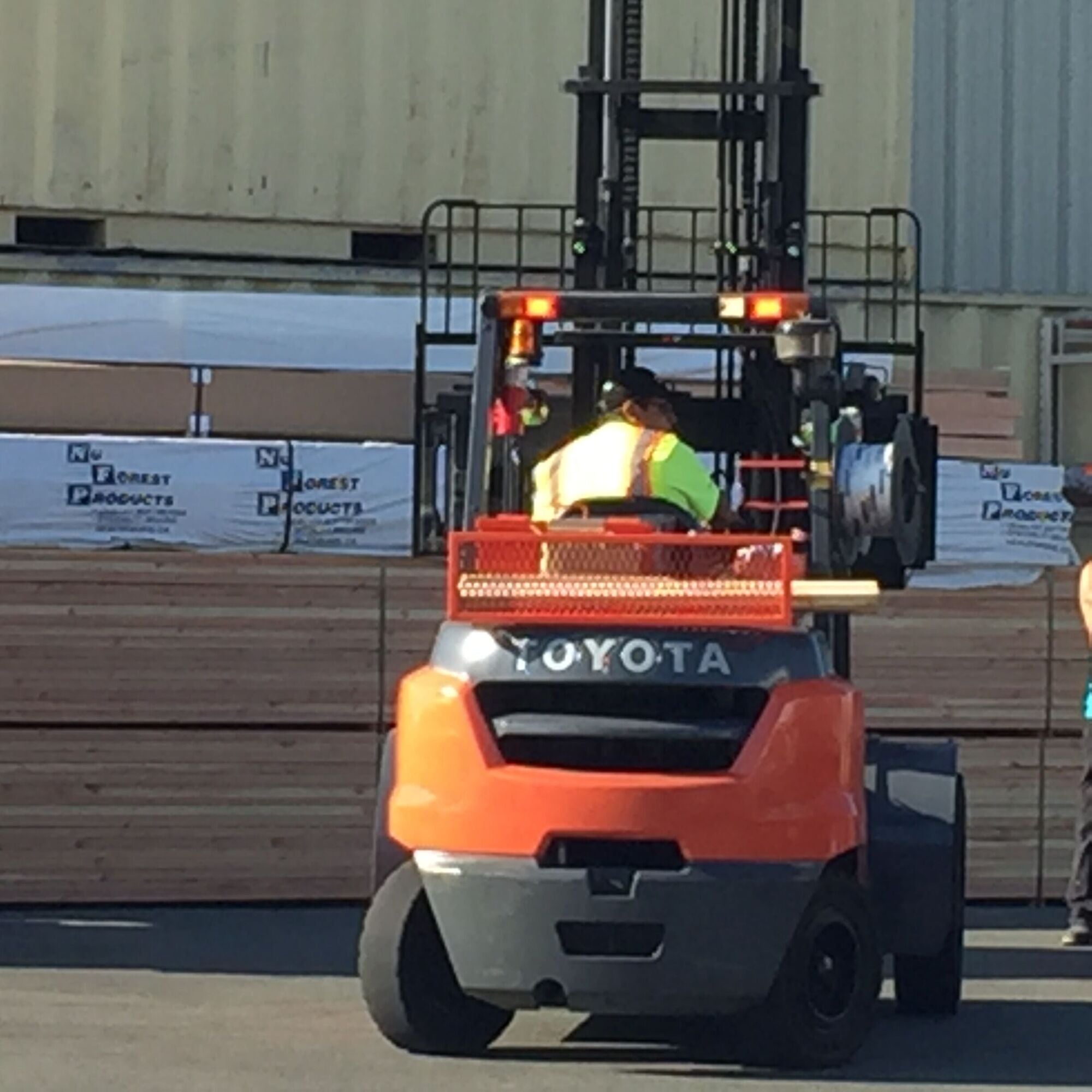

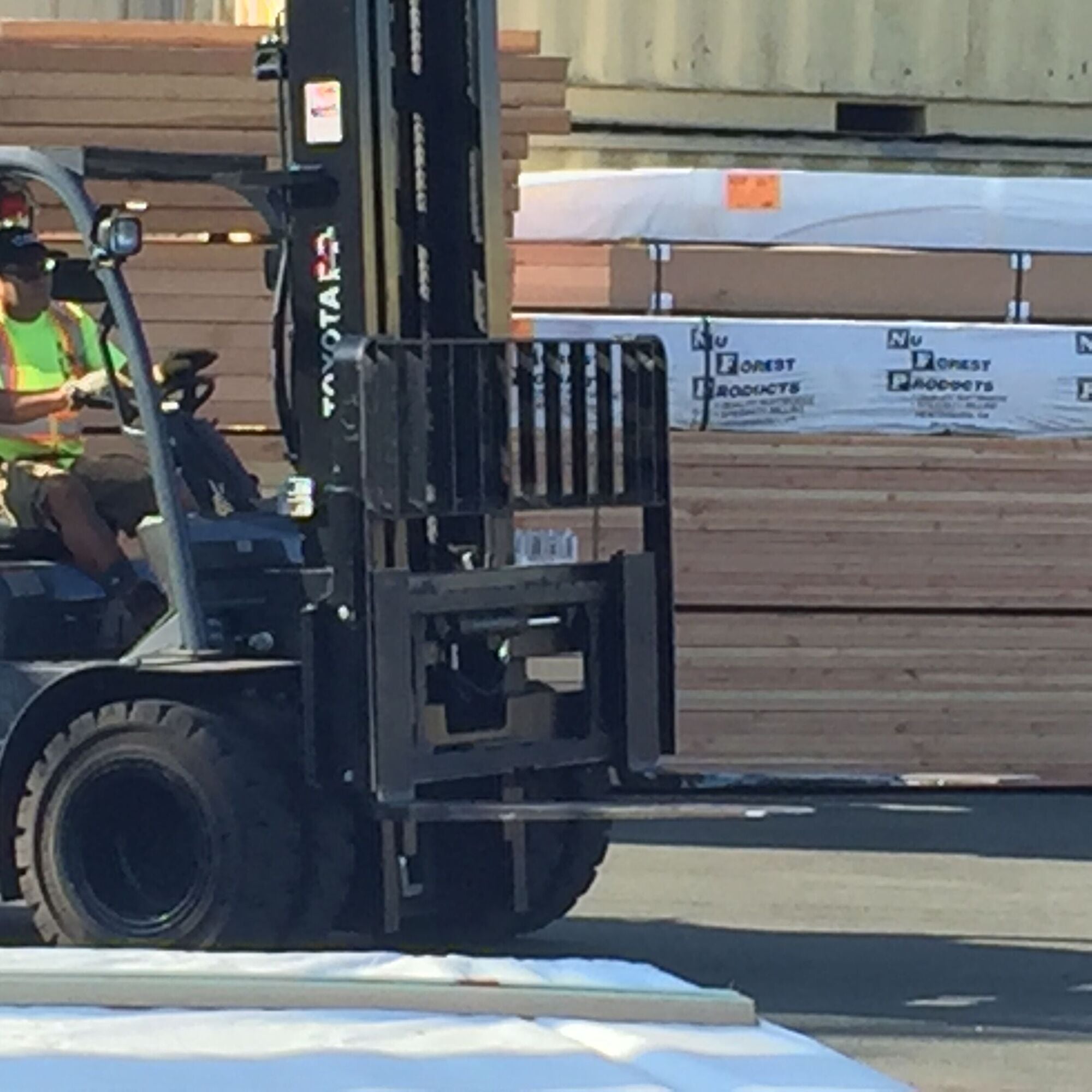

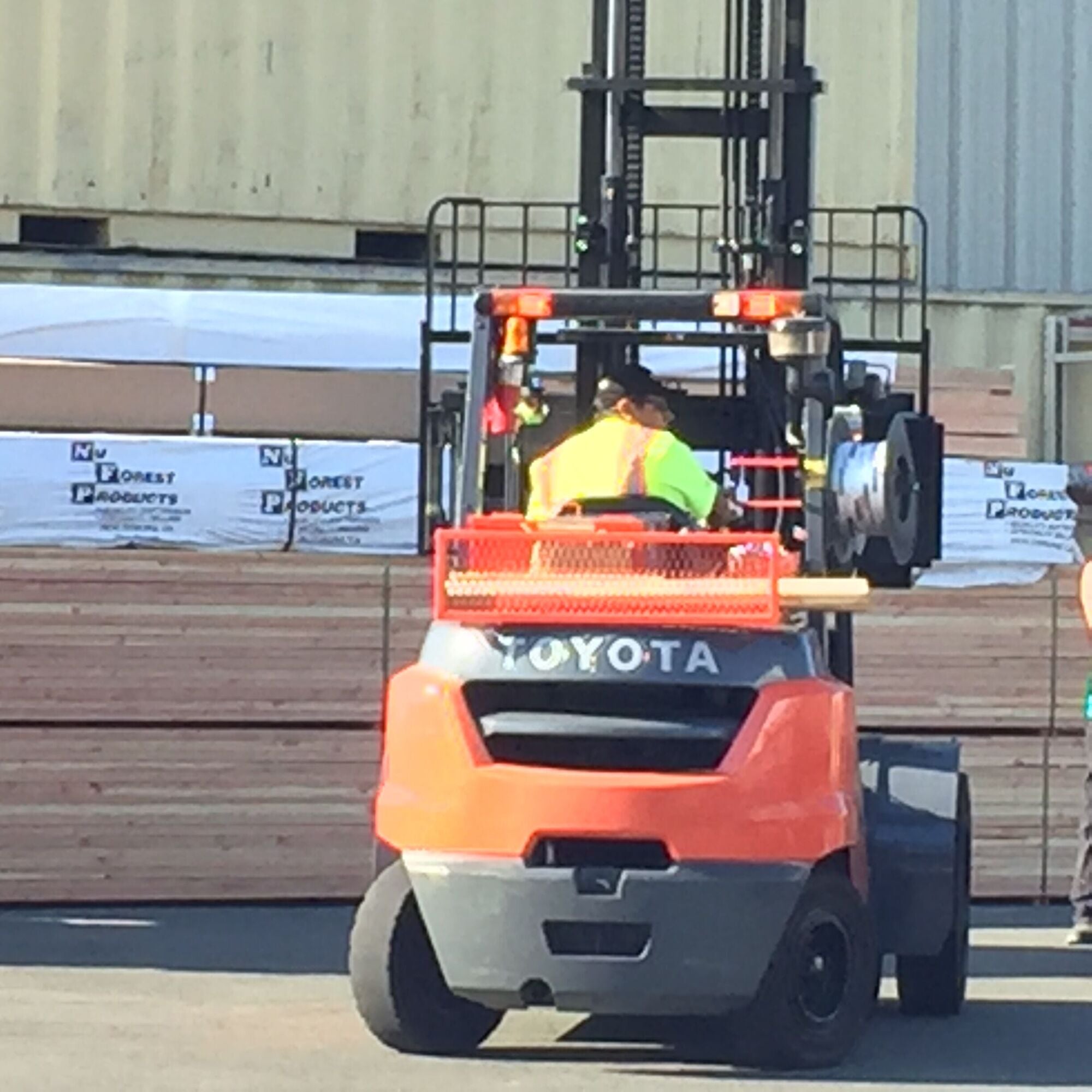

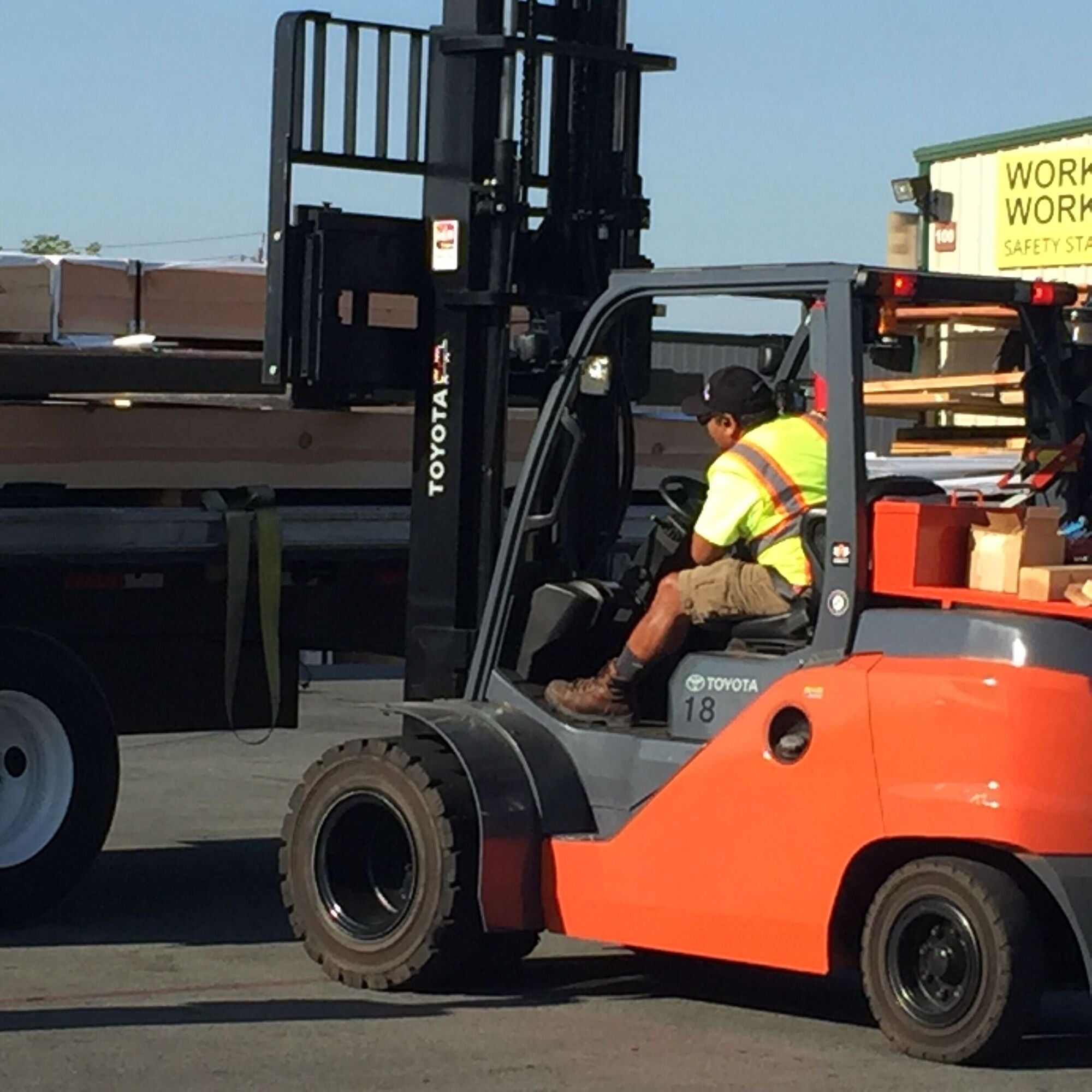

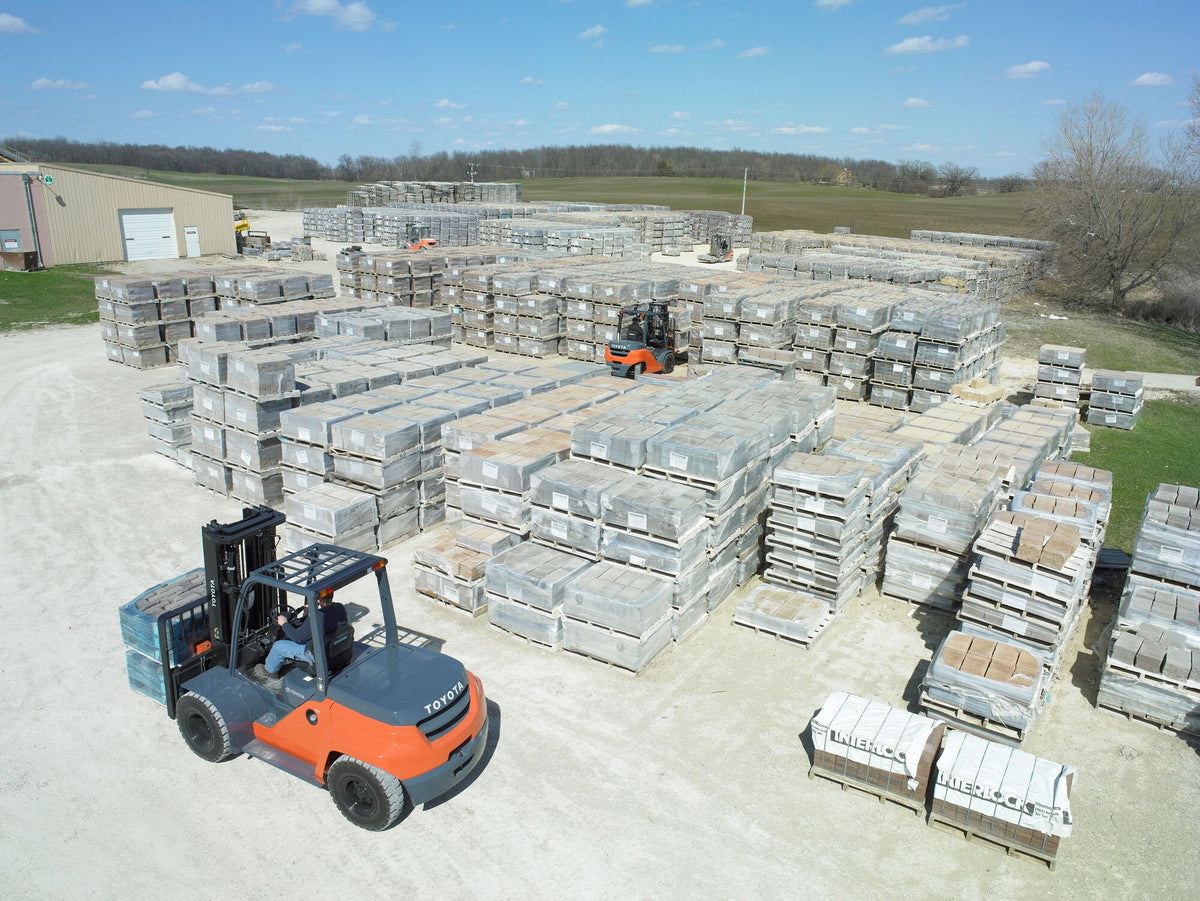

The Toyota Large IC Pneumatic Forklift can lift up to 17,500 lbs. and can easily navigate in gravel, dirt and asphalt. Popular on construction sites as well as in lumber yards, brick and stone distribution centers, specialized warehouses and heavy-duty manufacturing plants, this large heavy-duty forklift is engineered to be extremely durable and efficient in all conditions.

LARGE IC PNEUMATIC FORKLIFT SPECIFICATIONS

MODEL NUMBER LOAD CAPACITY* (LBS.) MAX. TRAVEL SPEED FULL LOAD (MPH) MAX. LIFT SPEED FULL LOAD (FPM) MAX. GRADEABILITY FULL LOAD (%) BASIC RIGHT ANGLE STACK** (IN.)
8FD60U 13,500 11.8 81 34 150
8FG60U 13,500 11.8 81 34 150
8FD70U 15,500 11.8 81 30 152
8FG70U 15,500 11.8 81 30 152
8FD80U 17,500 11.8 71 26 154
8FG80U 17,500 11.8 75 26 154
Length to Forkface 137.4 - 141.3 in
Overhead Guard Height 90.9 in
Overall Width 78.5 in.

Performance

  • 81

    FPM Lifting Speed

  • 1FS / 1KD

    Toyota Built Engines

  • 2 Speed

    Automatic Transmission
