Toyota Large Electric Forklift

Large Electric Forklift

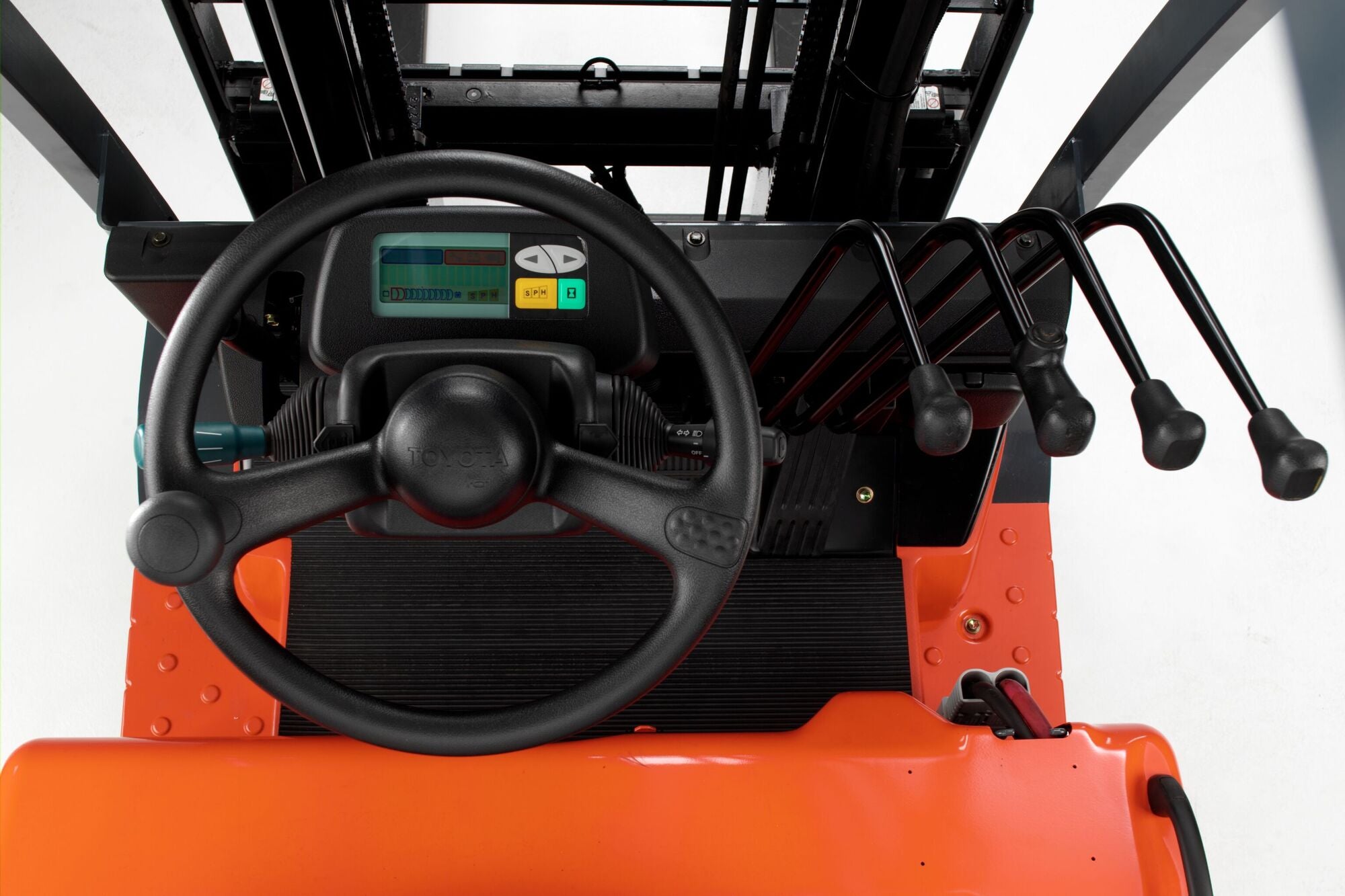

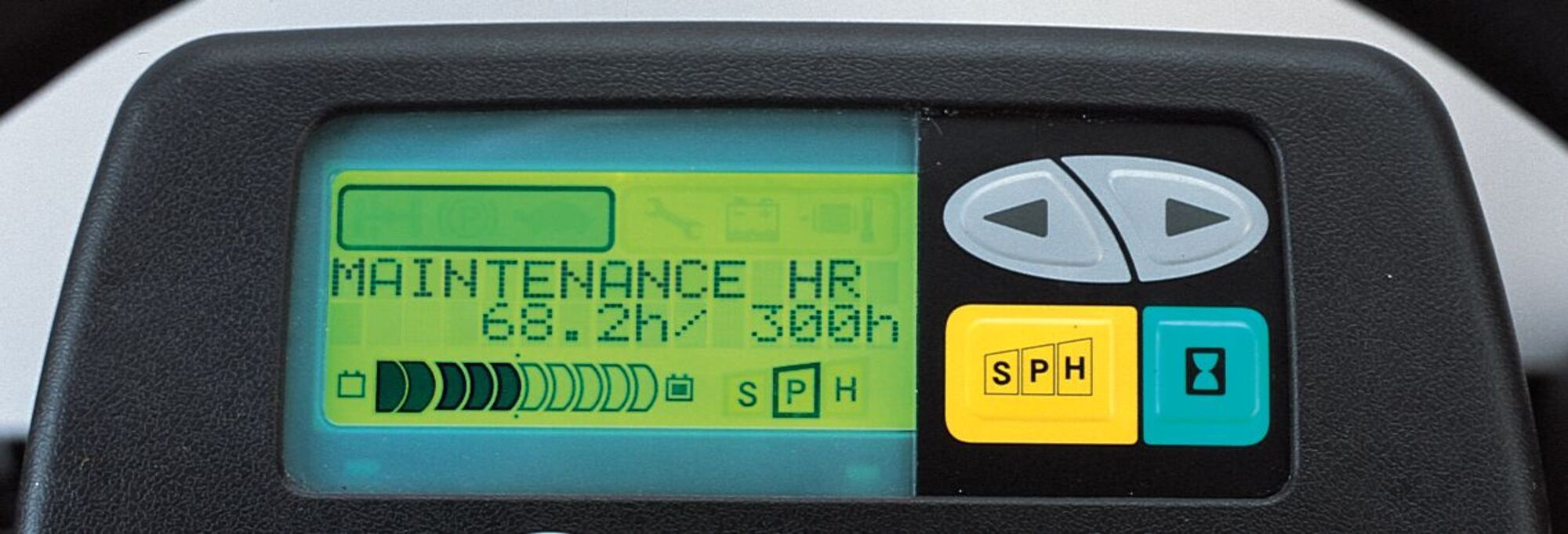

Strategically configured instrument display
Hydrostatic Power Steering

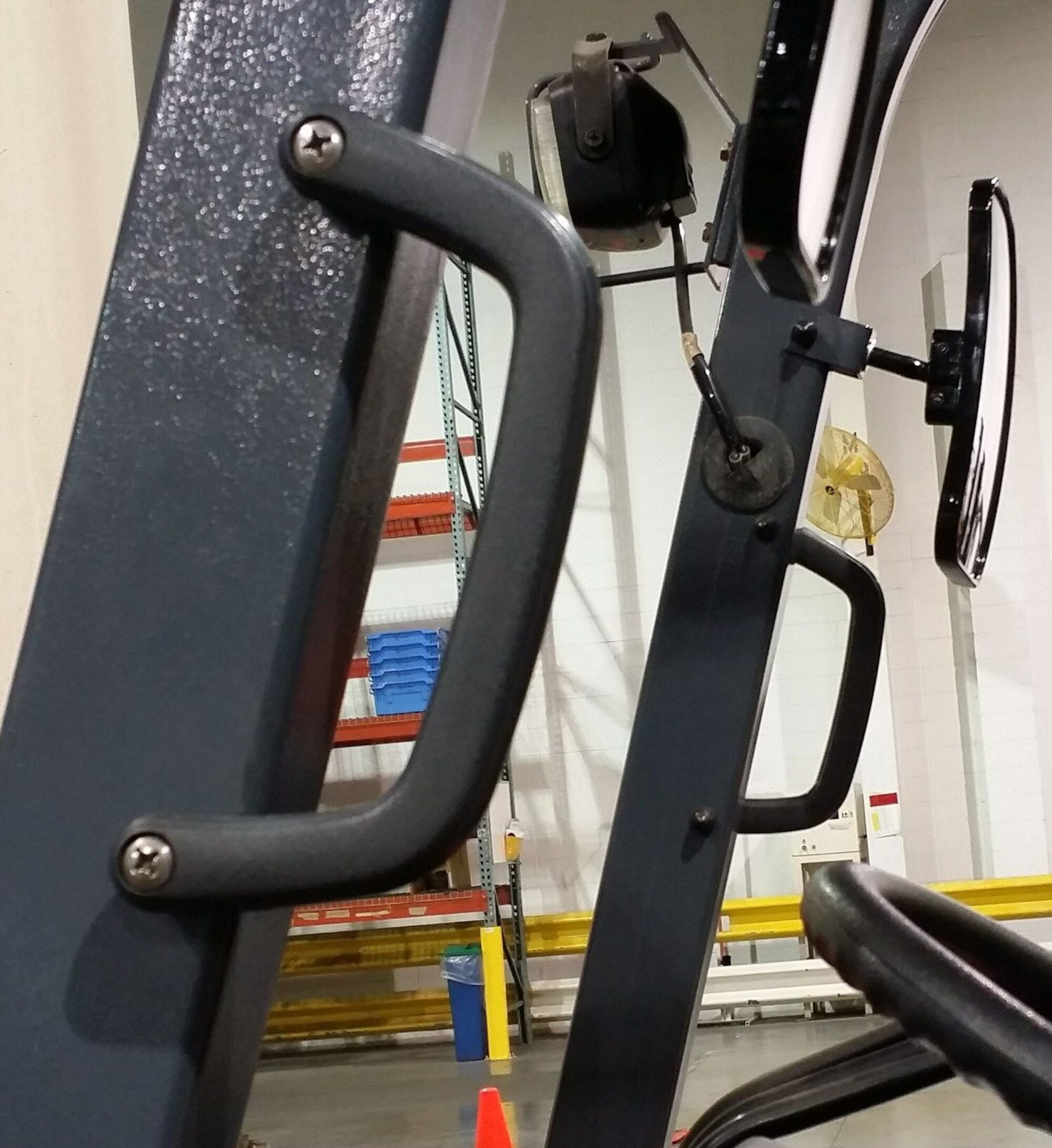

Dual operator assist grips
Electric directional shift control
Memory tilt steering column
Two-spoke steering wheel
Cowl-mounted hydraulic controls

Toyota’s Large Electric Forklift gets the job done, quietly and reliably. With 12,000 pounds of lifting power, its a zero-emissions ride that is perfect for your toughest warehousing challenges, even in the food and beverage industries. It speaks softly and carries a big lift.

LARGE ELECTRIC FORKLIFT SPECIFICATIONS

MODEL NUMBER	LOAD CAPACITY* (LBS.)	MAX. TRAVEL SPEED FULL LOAD (MPH)	MAX. LIFT SPEED FULL LOAD (FPM)	MAX. GRADEABILITY FULL LOAD (%)	BASIC RIGHT ANGLE STACK** (IN.)
7FBCU35	8,000	8.4 (36V), 10.9 (48V)	51.2 (36V), 72.9 (48V)	16 (36V), 22 (48V)	102.6
7FBCU45	10,000	7.8 (36V), 10.9 (48V)	43 (36V), 57 (48V)	13 (36V), 18 (48V)	106.7
7FBCU55	12,000	7.5 (36V), 9.3 (48V)	37 (36V), 53 (48V)	14 (36V), 20 (48V)	116.9
