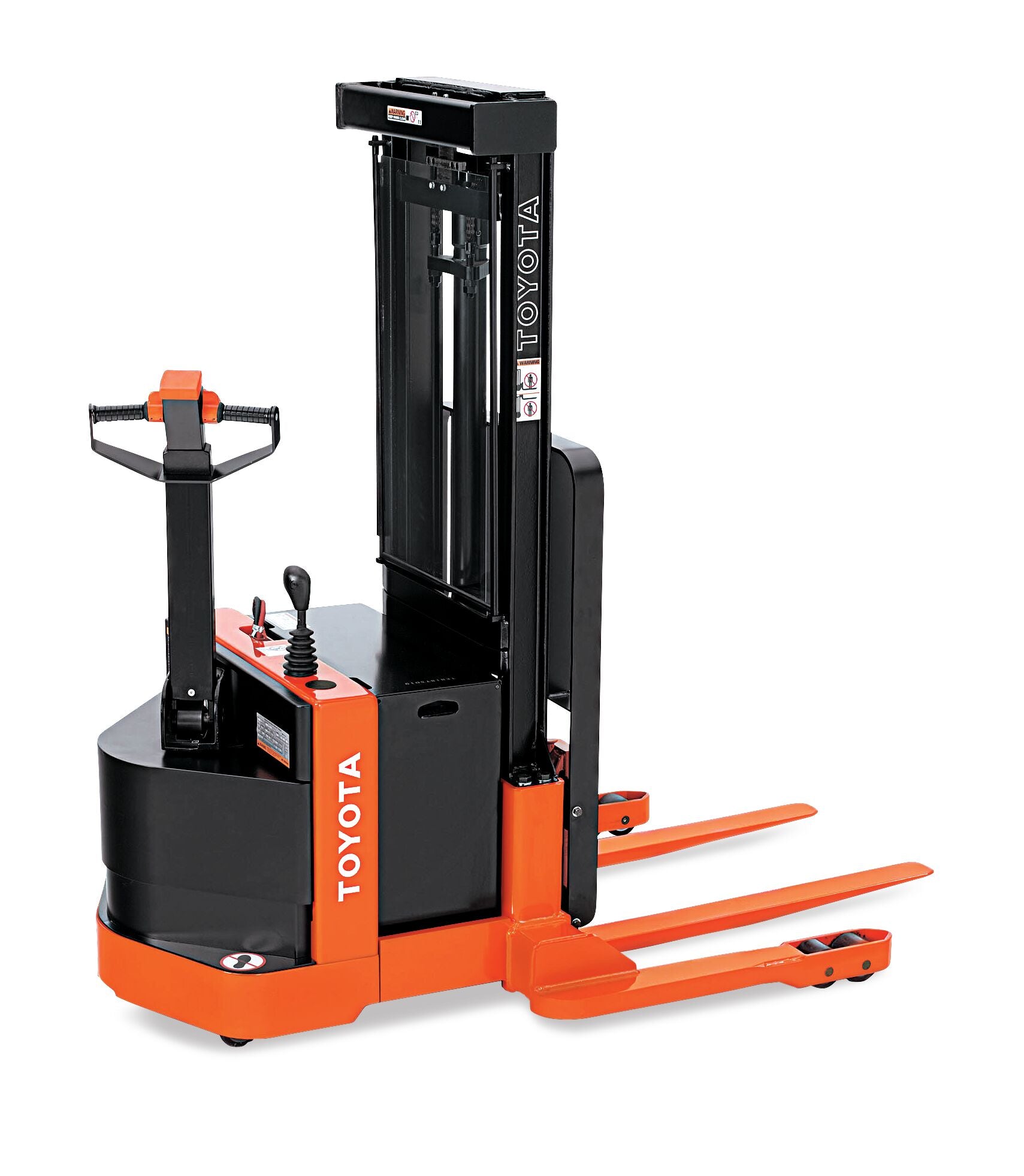

Toyota Industrial Walkie Stacker

Industrial Stacker

High-Visibility Mast
Fully-Programmable Drive System
24 Volt Electrical System
Steel Access Door

When a traditional forklift isn’t necessary but lifting product above a second-tier rack is, the Toyota Industrial Stacker is a cost-efficient, easy-to-use solution. With top-of-the-line durability and long-run performance, the Industrial Stacker is an economical complement to nearly any forklift fleet.

INDUSTRIAL WALKIE STACKER SPECIFICATIONS

MODEL NUMBER	LOAD CAPACITY* (LBS.)	MAX. TRAVEL SPEED FULL LOAD (MPH)	MAX. LIFT SPEED FULL LOAD (FPM)	MAX. GRADEABILITY FULL LOAD (%)	BASIC RIGHT ANGLE STACK** (IN.)
6BWS11	2,200	2.9	32	6	81
6BWS15	3,000	2.9	32	6	85
6BWS20	4,000	2.6	27	6	88

Length to forkface 38.4 - 47.9 in

Mast Lowered Height 83 in

Overall Width 40 - 58 in

Performance

0

Emissions
2.8

MPH Travel Speed
60

FPM Lower Speed

Toyota Industrial Walkie Stacker

RECOMMENDED INDUSTRIES

Industries

Retail

Industries

General Manufacturing

Industries

Beverage
