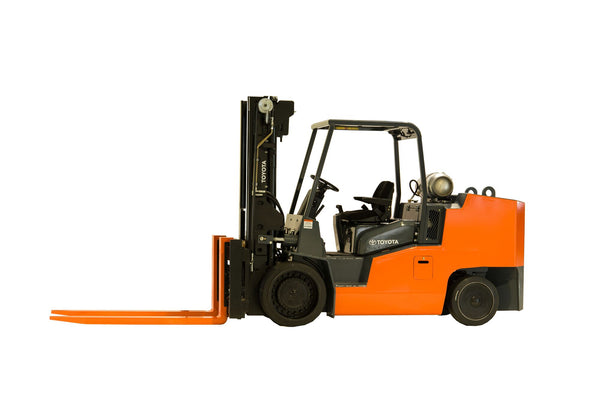

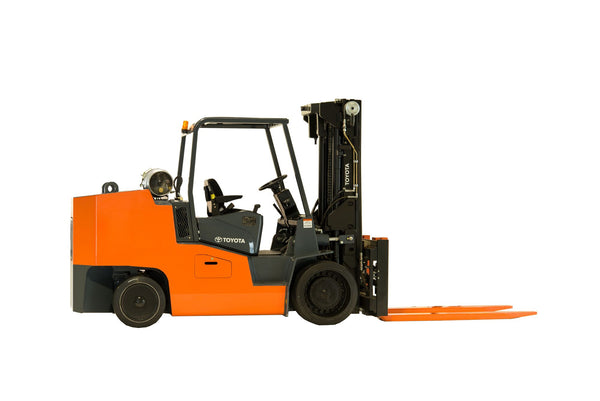

High-Capacity IC Cushion Forklift

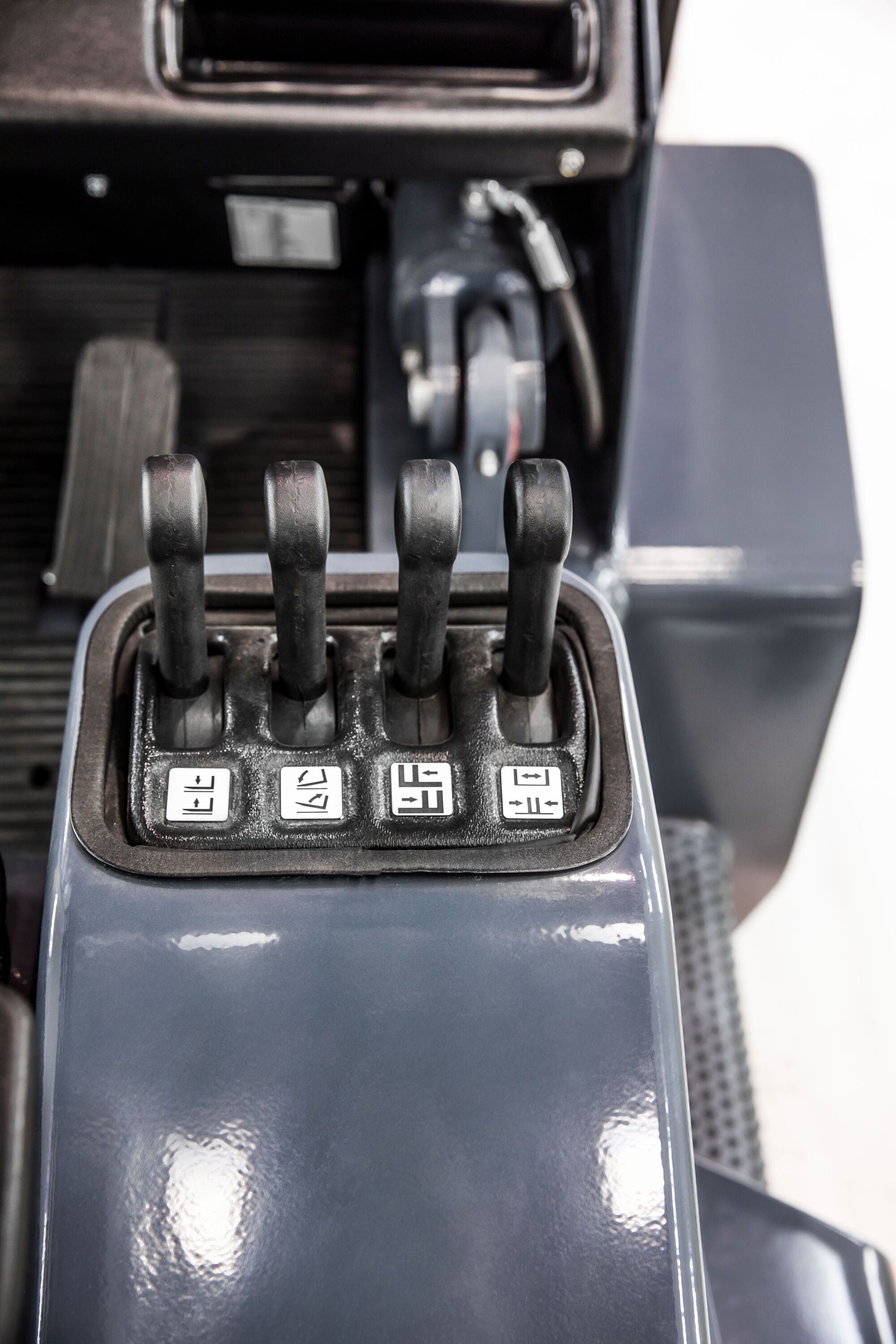

Finger-Tip Hydraulic Controls

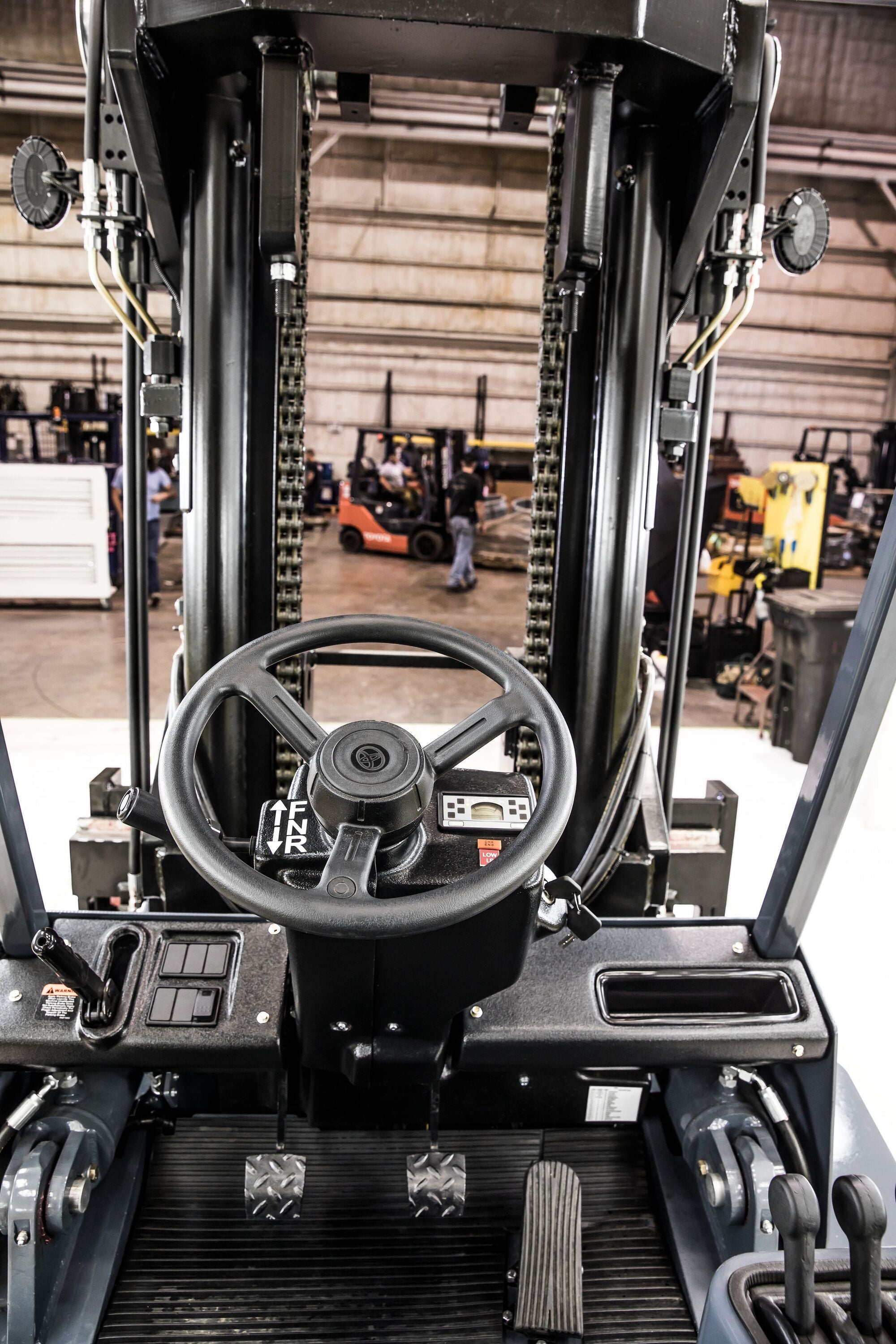

Tilt Steering Column
2 ¾ Turn Lock-to-Lock Steering Wheel
Left Hand Shift Lever
Low-Height, Non-Skid Steps

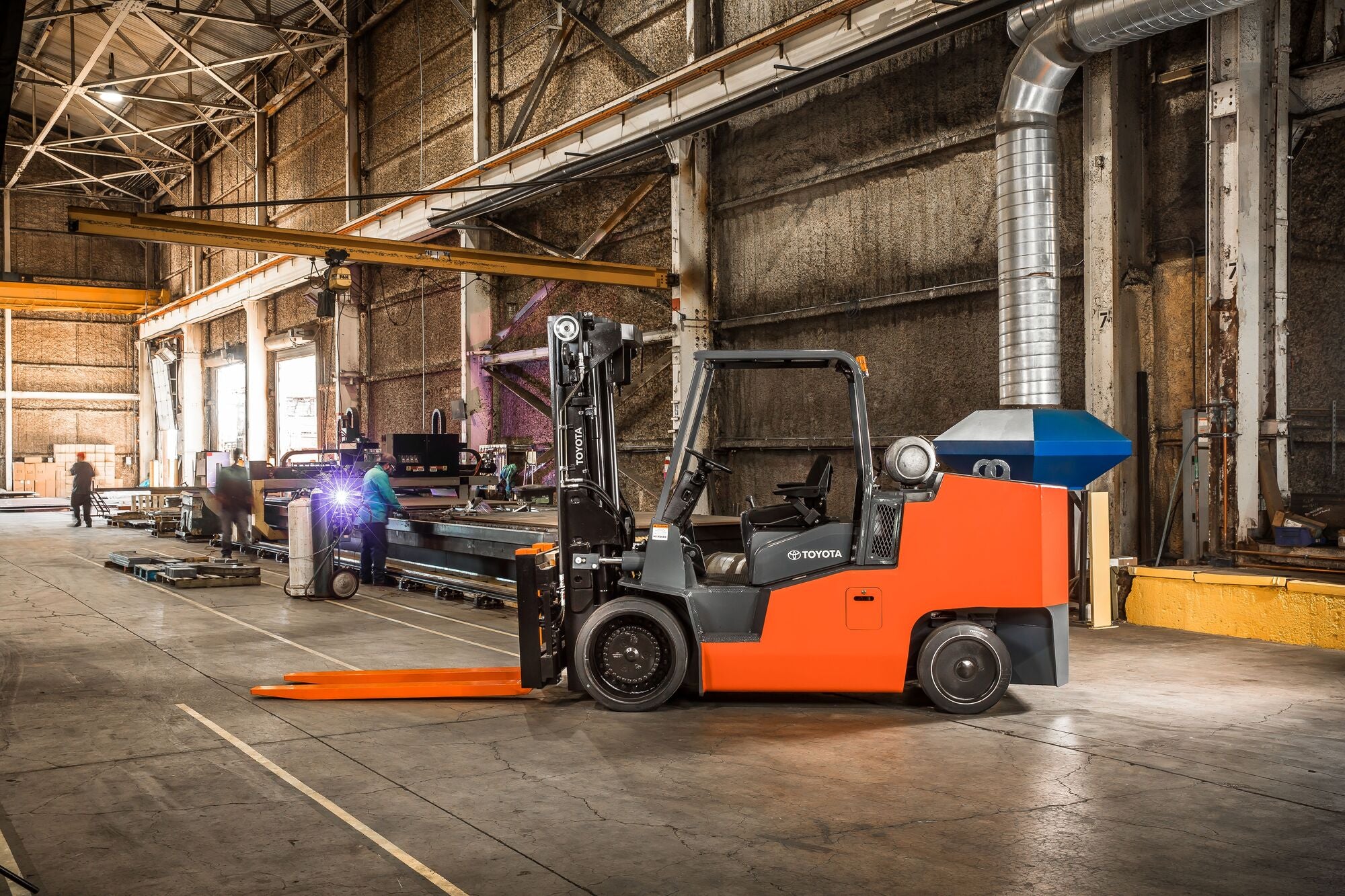

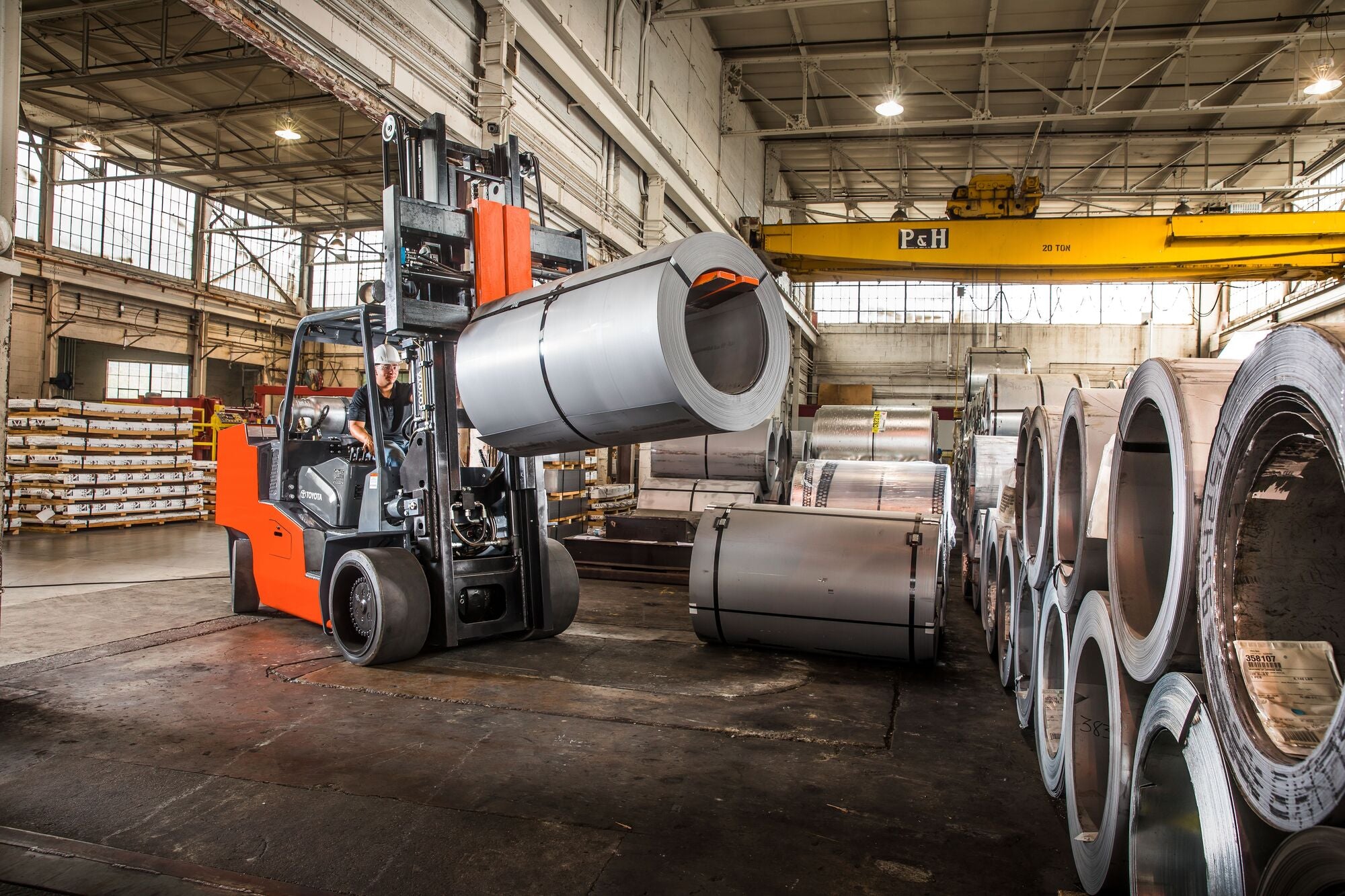

The High-Capacity IC Cushion Forklift is a homerun when it comes to versatility in the warehouse or manufacturing facility. Need to lift large pallets full of heavy components? The High-Capacity Cushion has you covered with its ability to lift up to 22,000 lbs. you’ll have those pallets of metal moving in no time. Have a paper plant with larger than normal rolls? The High-Capacity Cushion can come with a roll clamp to make those operations a cinch.

HIGH-CAPACITY CUSHION FORKLIFT SPECIFICATIONS

MODEL NUMBER	LOAD CAPACITY* (LBS.)	MAX. TRAVEL SPEED FULL LOAD (MPH)	MAX. LIFT SPEED FULL LOAD (FPM)	MAX. GRADEABILITY FULL LOAD (%)	BASIC RIGHT ANGLE STACK** (IN.)
THDC1800-24	18,000	14.3	50	30.5	140.6
THDC1800-36	18,000	14.3	46	27.4	144.3
THDC2200-24	22,000	14.3	46	25.2	144.3
THDC2200B-24	22,000	14.3	46	24.8	133.4

Length to Forkface 123.8 - 135.7 in

Overhead Guard height 88.9 in

Overall Width 60.7 in

Performance

14.3

MPH Travel Speed
3

Speed Dana Power Transmission
4.3

L V6 Engine

High Capacity Cushion Forklift

RECOMMENDED INDUSTRIES

Industries

Brick, Block & Pipe

Industries

General Manufacturing

Industries

Forging & Casting
