Toyota Core Electric Forklift

Core Electric Forklift

  • Four-way adjustable full-suspension seat
  • Hydrostatic (On Demand) Power Steering
  • Dual operator assist grips
  • 11.8″ diameter two-spoke steering wheel
  • Cowl-mounted hydraulic controls

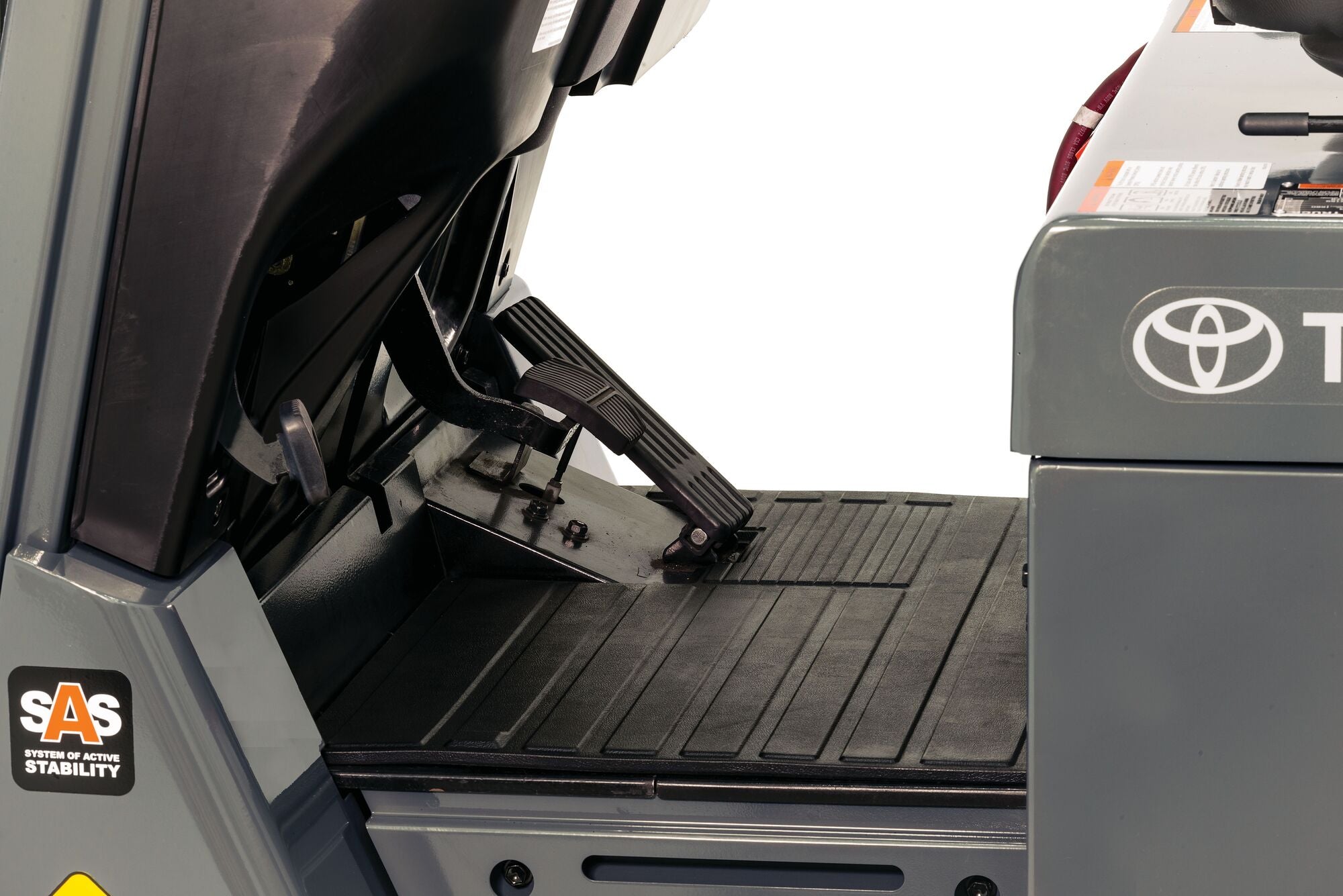

  • Heavy-duty, non-slip floor mat
  • Electric directional shift control

The Toyota Core Electric Forklift is an ideal compact four-wheel electric lift truck solution for most indoor and warehouse applications. The Core Electric Forklift is capable of moving most any standard load while maintaining the ability to fully operate in spaces as small as 11 feet wide. And Toyota designed and built AC motors provide new levels of performance, efficiency, and reliability to maximize your productivity and return on investment.

CORE ELECTRIC FORKLIFT SPECIFICATIONS

MODEL NUMBER LOAD CAPACITY* (LBS.) MAX. TRAVEL SPEED FULL LOAD (MPH) MAX. LIFT SPEED FULL LOAD (FPM) MAX. GRADEABILITY FULL LOAD (%) BASIC RIGHT ANGLE STACK** (IN.)
8FBC15U 3,000 11.5 (36V), 11.5 (48V) 88 (36V), 108 (48V) 20 (36V), 21 (48V) 82.1
8FBC18U 3,500 11.3 (36V), 11.3 (48V) 79 (36V), 100 (48V) 18 (36V), 20 (48V) 82.1
8FBCU20 4,000 9.9 (36V), 11.5 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 87.2
8FBCU20-COMP 4,000 9.9 (36V), 11.5 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 85.2
8FBCHU25 5,000 9.6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 24 (48V) 93.1
8FBCU25 5,000 9.6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 87.6
8FBCU25-COMP 5,000 9.6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 85.6
8FBCU28 5,500 9.3 (36V), 11.5 (48V) 55 (36V), 73 (48V) 17 (36V), 20 (48V) 90.3
8FBCU30 6,000 9.0 (36V), 11.2 (48V) 51 (36V), 69 (48V) 17 (36V), 20 (48V) 94.9
8FBCU32 6,500 9.0 (36V), 11.2 (48V) 47 (36V), 65 (48V) 17 (36V), 19 (48V) 96.4
Length to Forkface 79.9 - 91.3 in
Overhead Guard Height 88 in
Overall Width 41.9 - 43.7 in

Performance

  • 130+

    Options

  • 23 FT.

    Lift Height

  • No. 1

    Selling Electric Forklift

Toyota Core Electric Forklift

RECOMMENDED INDUSTRIES

Industries

General Warehouse Solutions

Industries

General Manufacturing

Industries

Beverage
