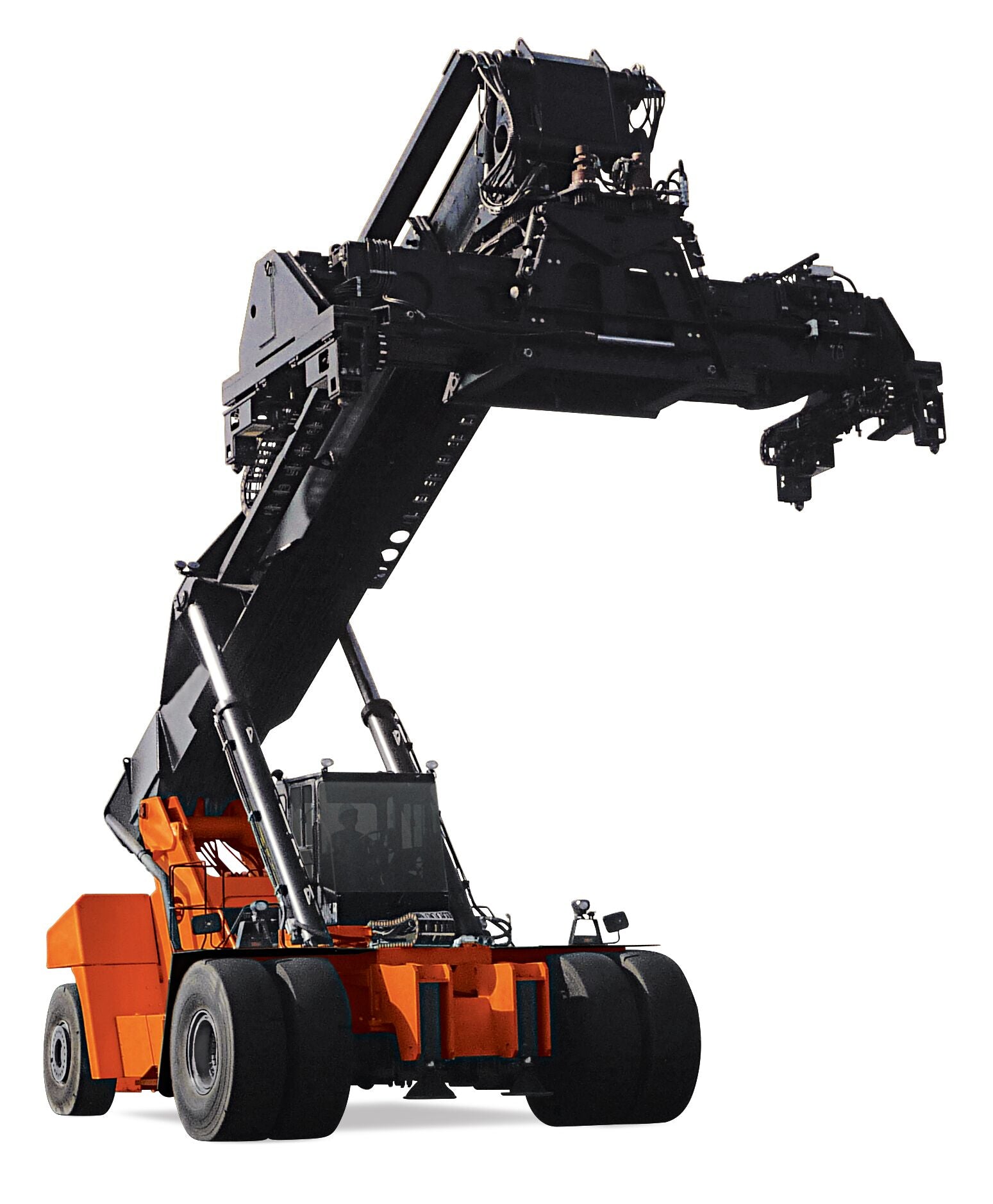

Reach Stacker Container Handler

REACH STACKER CONTAINER HANDLER

Inclination and Optical Distance Sensors

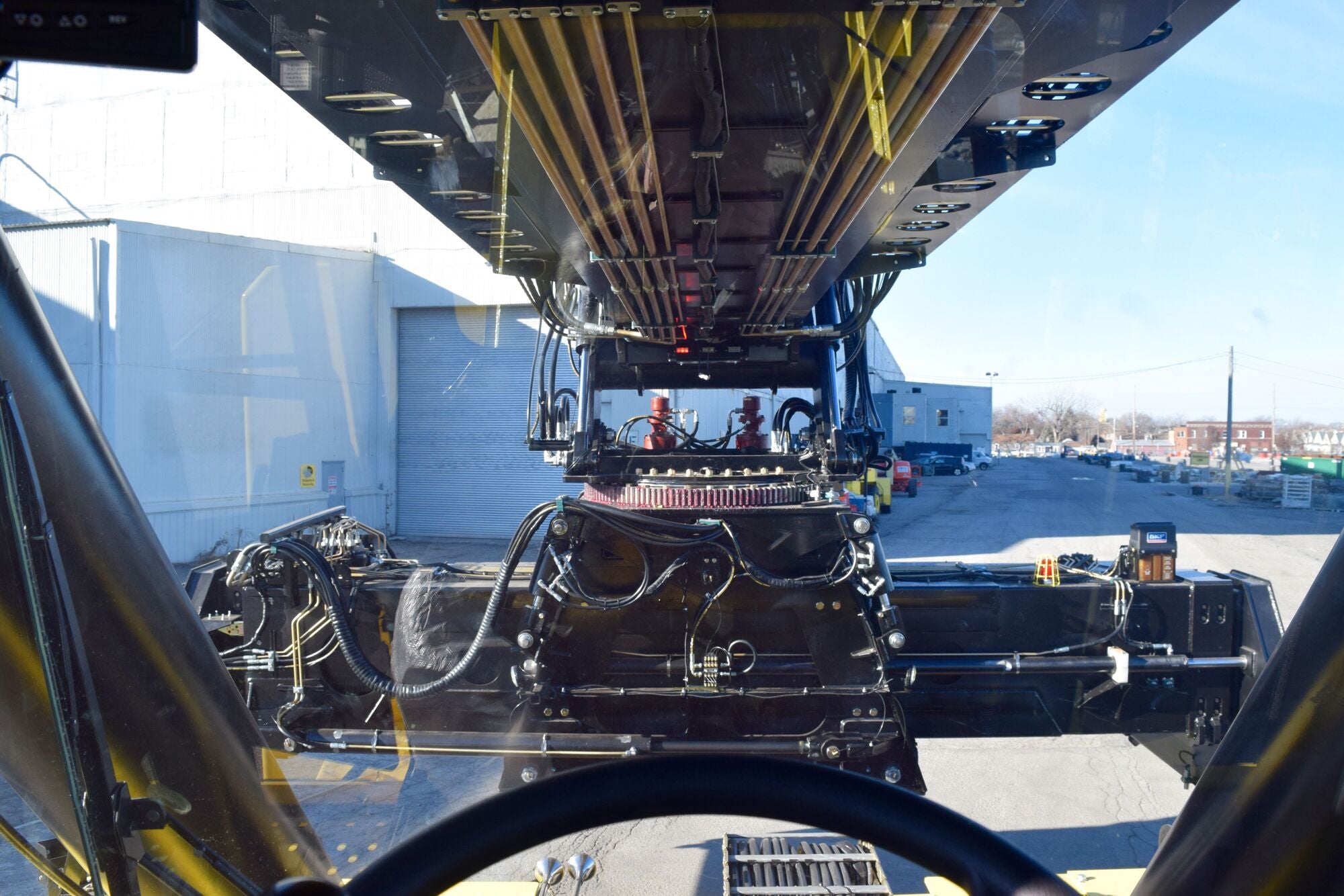

4-Point Top Pick Loaded Container Attachment
Oversized Composite Side Thrust & Main Slide Pads

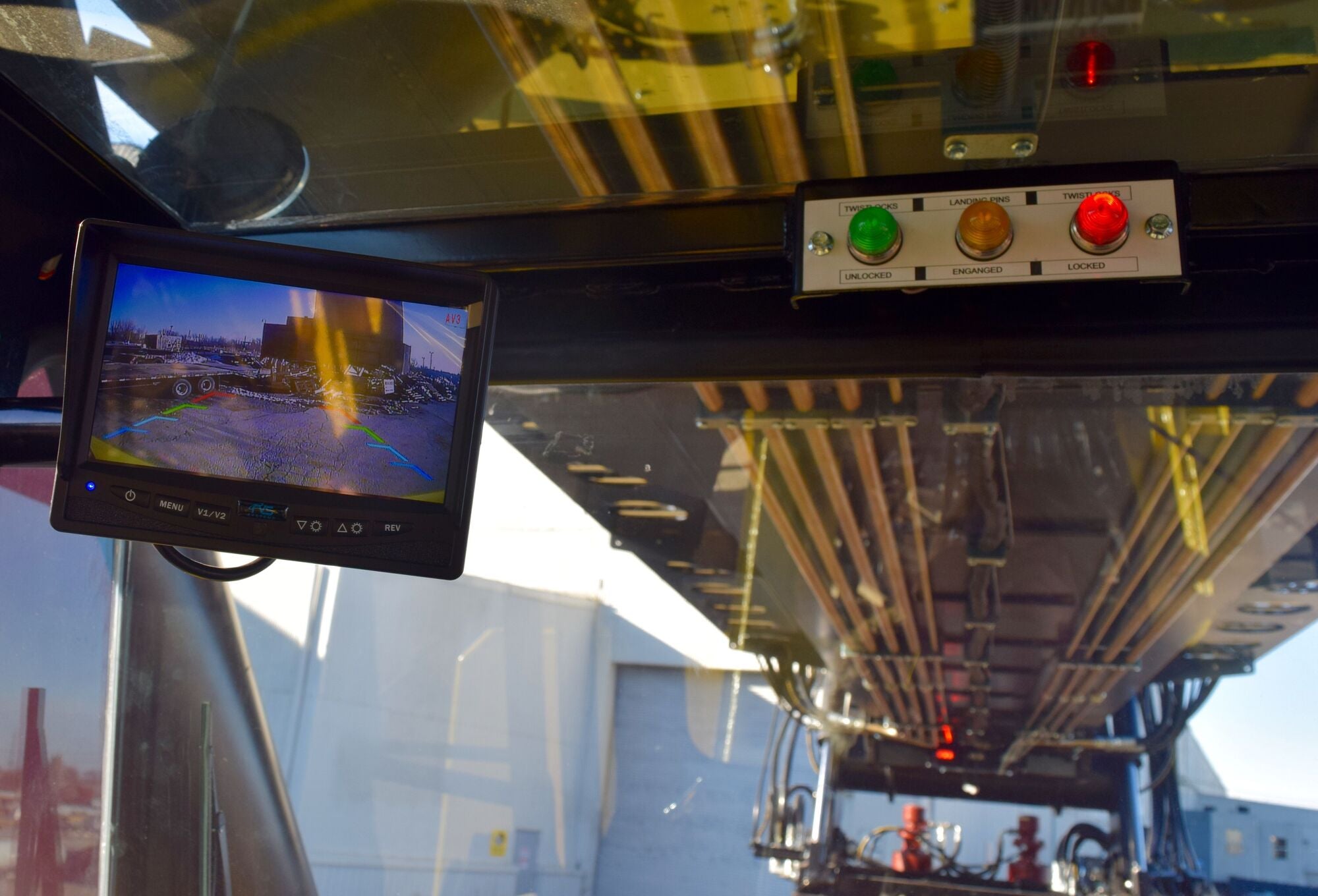

Automatic Pendulum-Floating Twistlocks
Bolted Gland Nut-Style Ram
Double Acting Cylinder

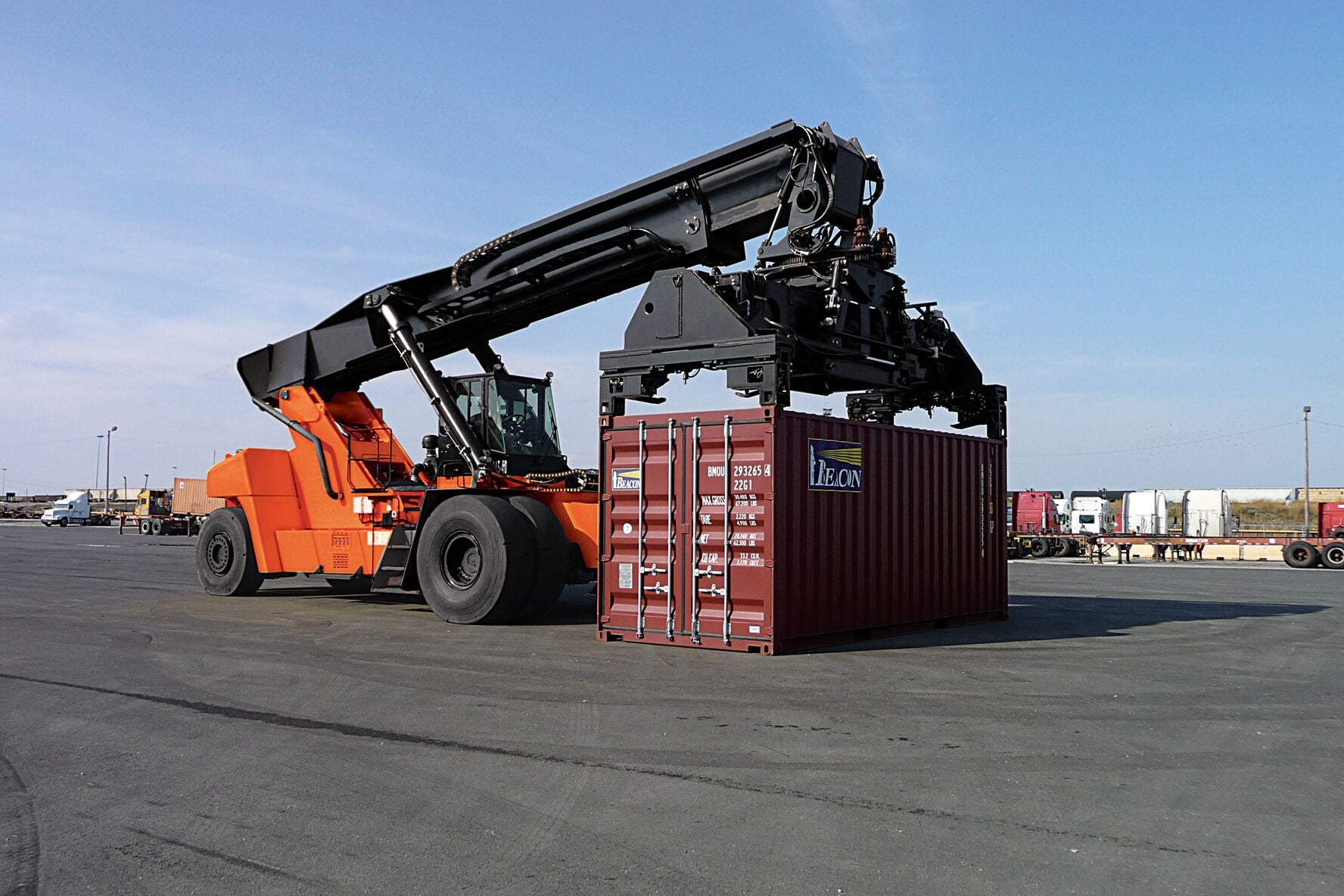

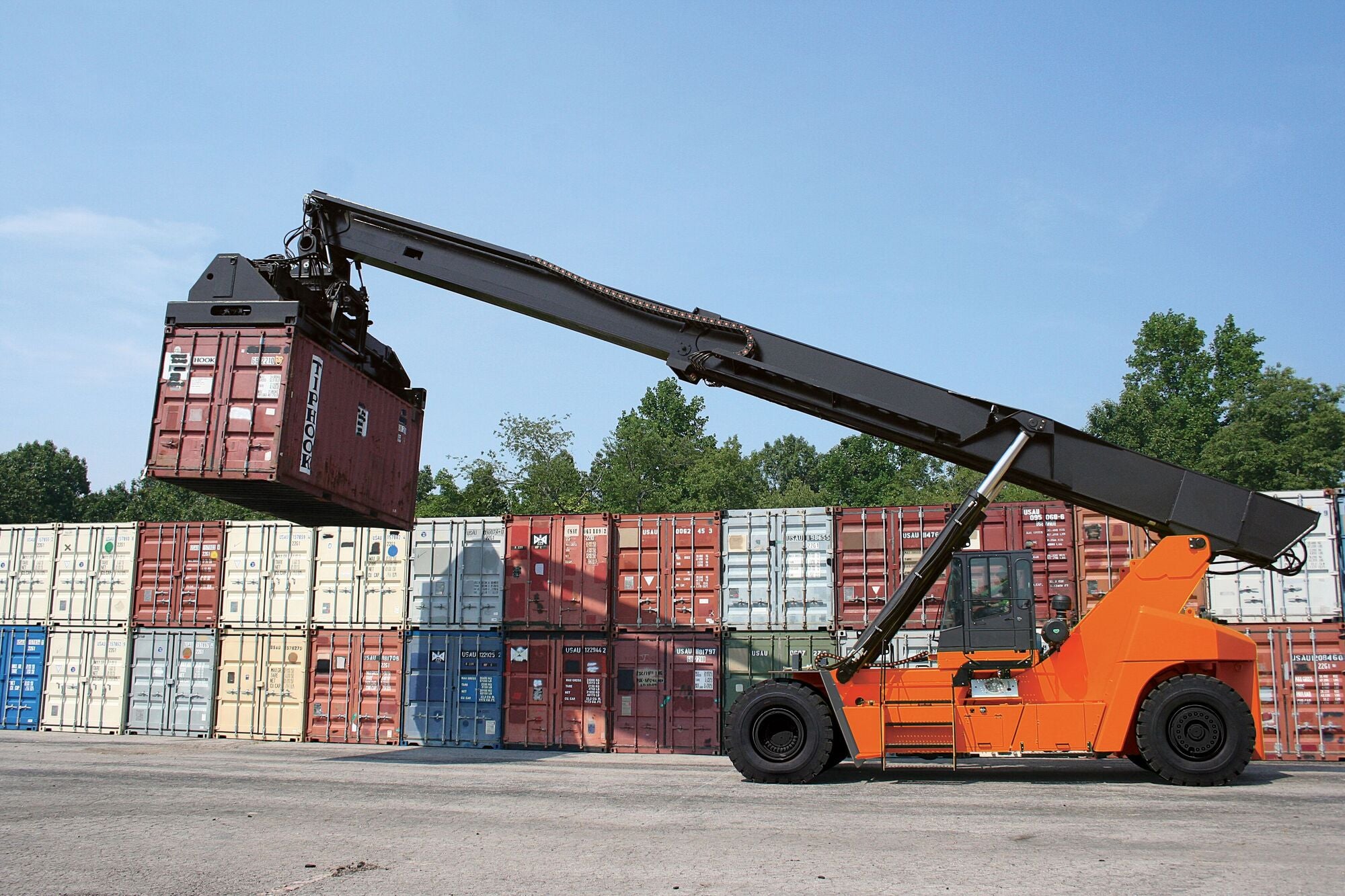

The Toyota Reach Stacker Container Handler is used to handle a diverse range of heavy-lift applications, from loading and unloading trailers to transporting wind turbine components. Stacking up to 5 containers high with a reach depth of 3 rows and lifting capacity of up 99,000 lbs, the Toyota Reach Stacker Container Handler is built for any heavy-duty job.

REACH STACKER CONTAINER HANDLER SPECIFICATIONS

MODEL NUMBER	LOAD CAPACITY* (LBS.)	MAX. TRAVEL SPEED FULL LOAD (MPH)	MAX. LIFT SPEED FULL LOAD (FPM)	MAX. GRADEABILITY FULL LOAD (%)	BASIC RIGHT ANGLE STACK** (IN.)
THD9900-R60	99,000 (1st row) / 60,000 (2nd row) / 30,000 (3rd row)	19.3	60	18.2	480 (20' cont.) / 565 (40' cont.)
THD9900-R68	99,000 (1st row) / 68,000 (2nd row) / 34,000 (3rd row)	19.3	60	17.5	480 (20' cont.) / 565 (40' cont.)
THD9900-R73	99,000 (1st row) / 72,600 (2nd row) / 38,500 (3rd row)	19.3	60	17.2	480 (20' cont.) / 565 (40' cont.)
THD9900-R77	99,000 (1st row) / 77,000 (2nd row) / 44,000 (3rd row)	19.3	60	16.9	480 (20' cont.) / 565 (40' cont.)
THD9900-R85	99,000 (1st row) / 85,000 (2nd row) / 47,000 (3rd row)	20.1	60	15.8	508 (20' cont.) / 586 (40' cont.)
THD9900-R90	99,000 (1st row) / 90,000 (2nd row) / 68,000 (3rd row)	20.1	60	15.6	508 (20' cont.) / 586 (40' cont.)
