Innovation Comes Standard

  • Up to 4,400 lbs. tow capacity
  • Onboard Touchscreen Display
  • Laser Obstacle Scanner(s)
  • Wireless Connectivity
  • Automatic Battery Charging Option

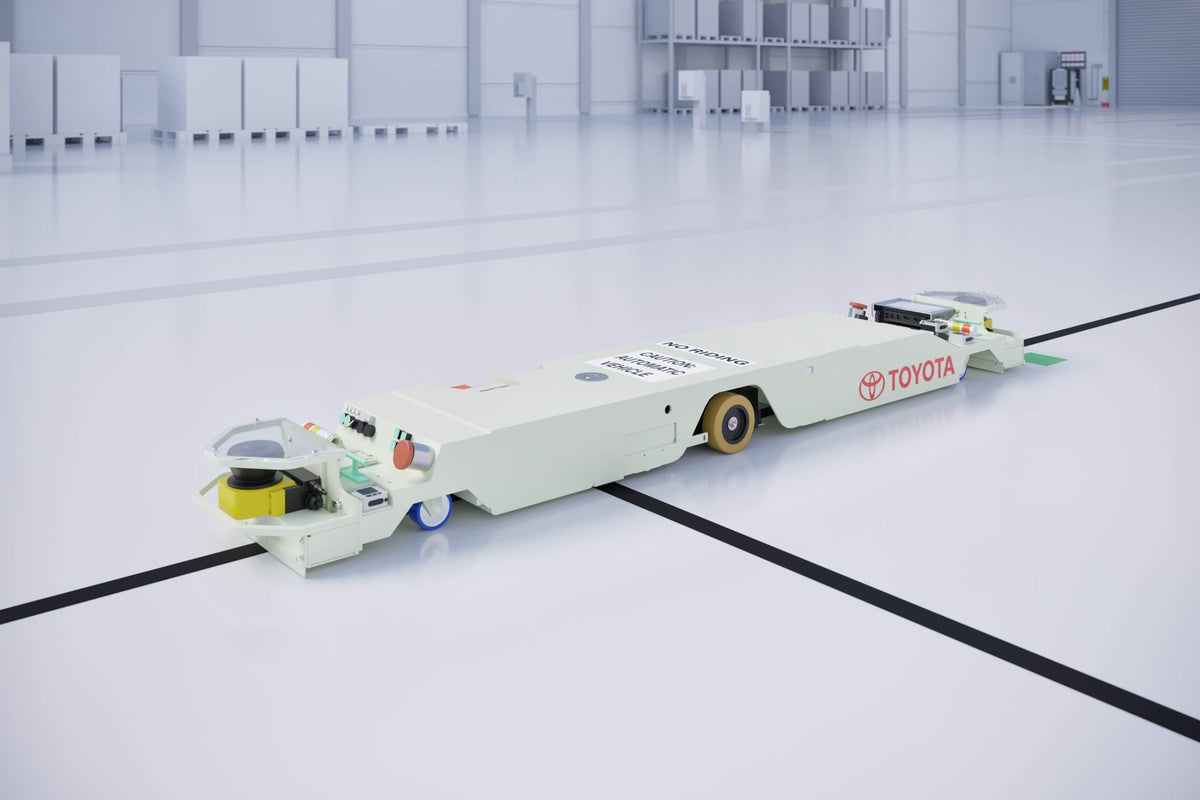

The Toyota Mouse and Mole Automated Guided Carts (AGCs) offer simple and versatile automation solutions that handle repeatable tasks and connect islands of production with ease. With capacities up to 4,400 lbs. and a customizable design to fit your needs, your operation will be able to maximize productivity through reliable and on-time automated station delivery. This intelligent line of automated carts offers highly customized solutions for transporting everything from raw materials to full assemblies, when and where you need them.

MOUSE AND MOLE AUTOMATED GUIDED CARTS SPECIFICATIONS

MODEL NUMBER LOAD CAPACITY* (LBS.) MAX. TRAVEL SPEED FULL LOAD (MPH) MAX. LIFT SPEED FULL LOAD (FPM) MAX. GRADEABILITY FULL LOAD (%) BASIC RIGHT ANGLE STACK** (IN.)
3AS1T 881 1.67 N/A N/A N/A
3A10T 2,204 1.67 N/A N/A N/A
3A15T 3,306 1.23 N/A N/A N/A
3A20T 4,409 0.74 N/A N/A N/A
3AB10T 2,204 1.67 N/A N/A N/A
3AB15T 3,306 1.23 N/A N/A N/A

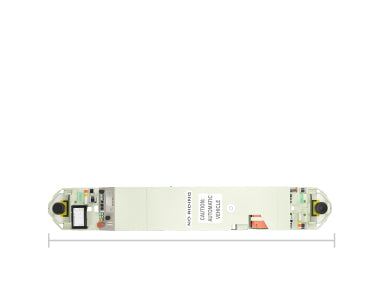

Overall Length 40.2 - 91.3 in.

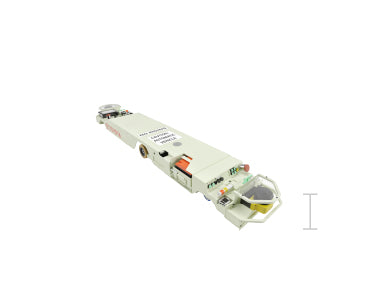

Overall Height 7 - 11.8 in.

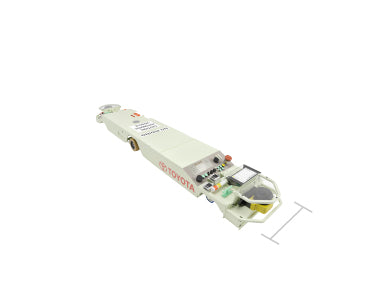

Overall Width 14.6 - 15 in.

Performance

  • 4,400 lbs.

    Tow Capacity

  • 15

    Programmable Speed Settings

  • 6

    Available Models

×
