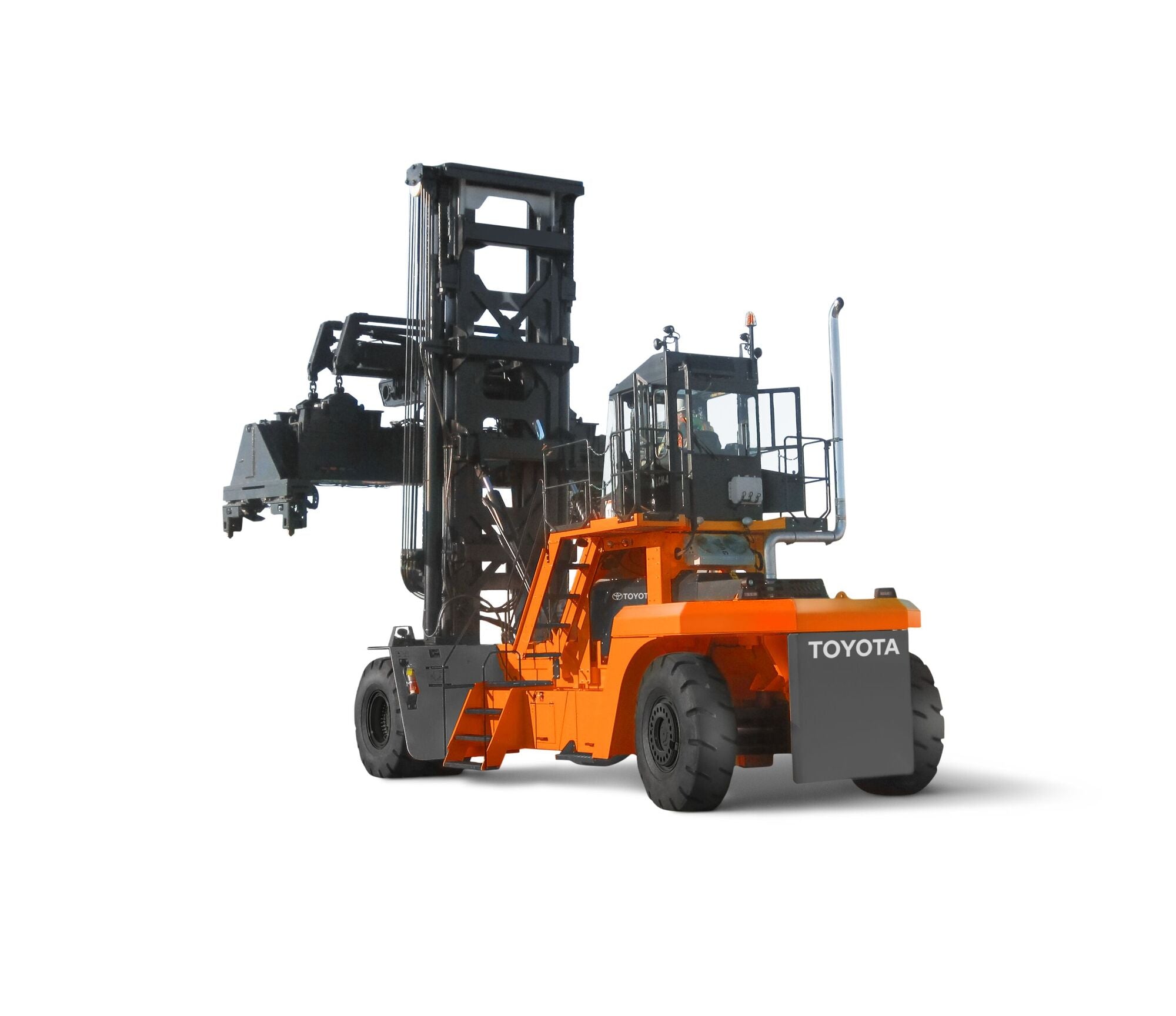

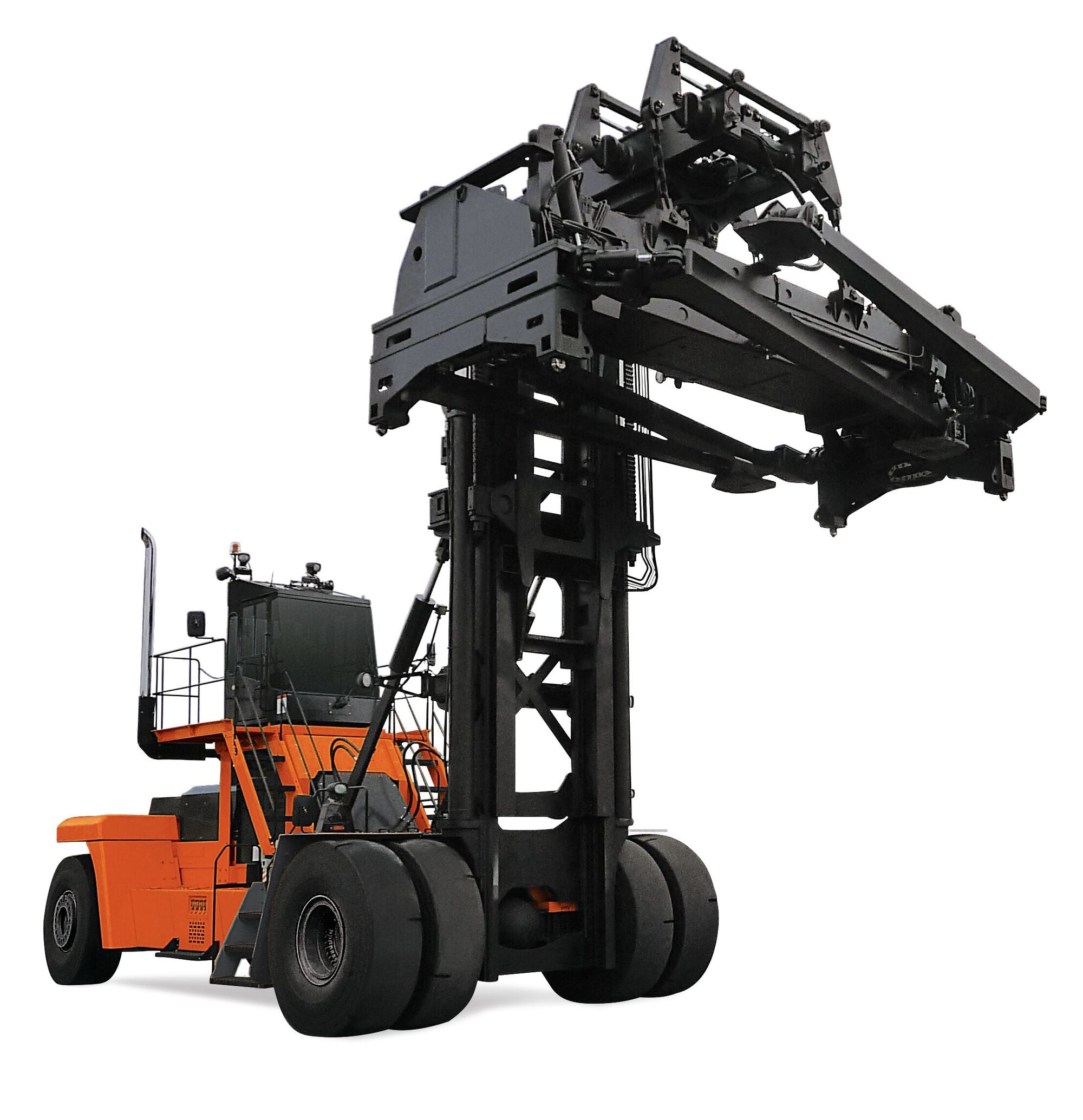

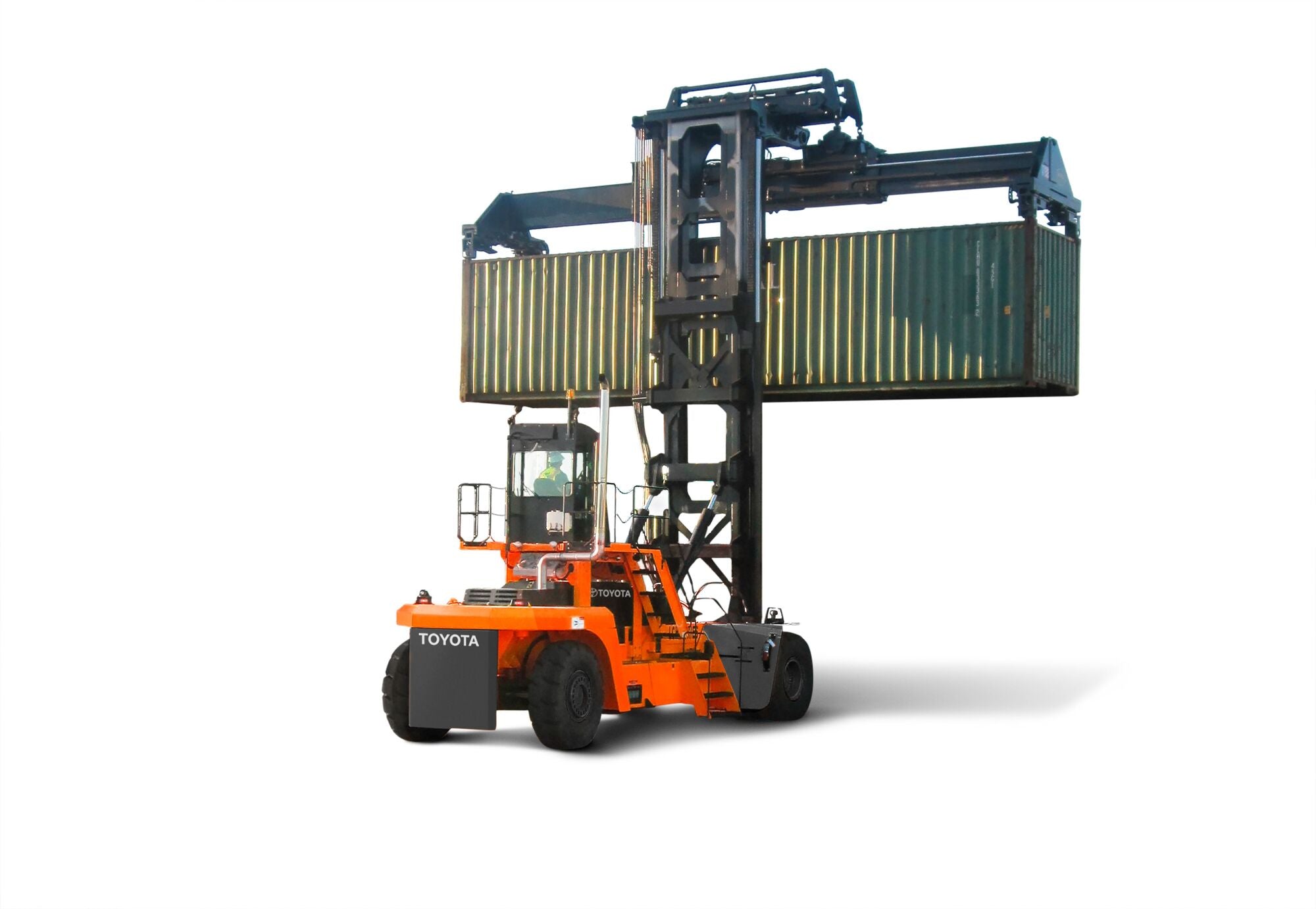

Loaded Container Handler

CUMMINS® QSM- 11 335HP TURBOCHARGED DIESEL ENGINE
WIDE-VIEW MAST
NITROSTEEL® CYLINDER RODS
LOAD SENSE "ON-DEMAND" STEER PUMP
ELECTRONIC DECLUTCH SYSTEM
12-PLATE MODULATION

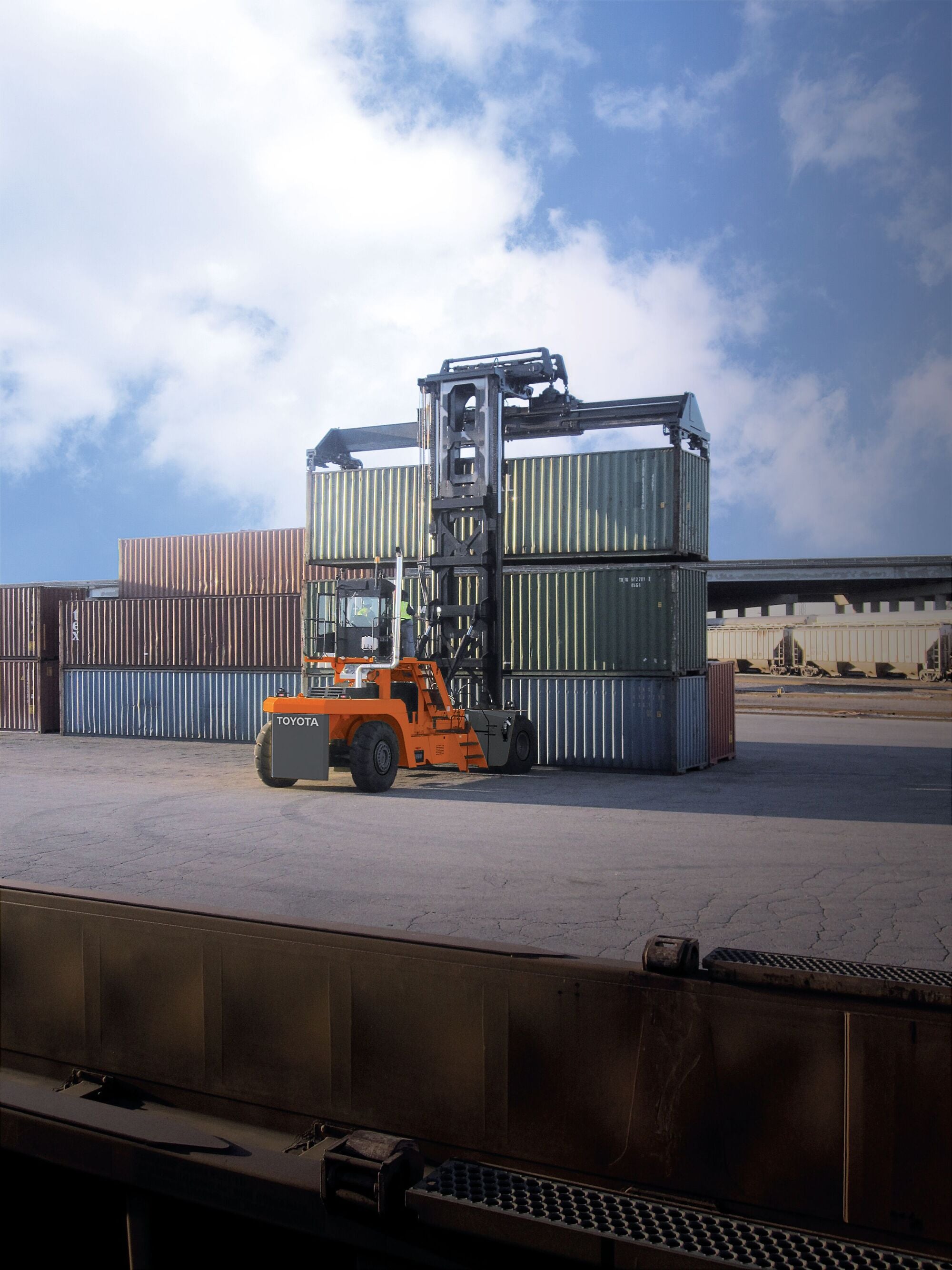

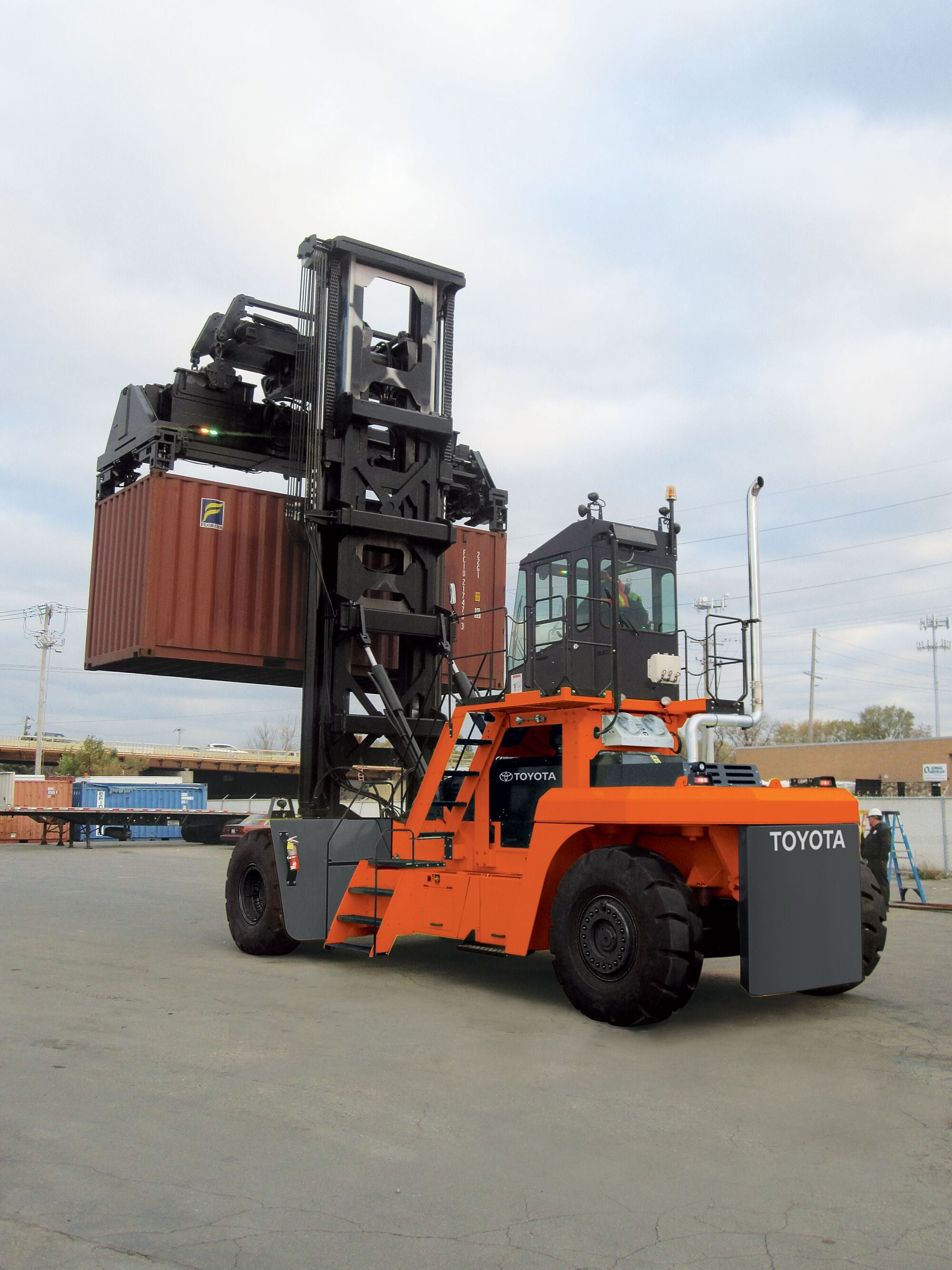

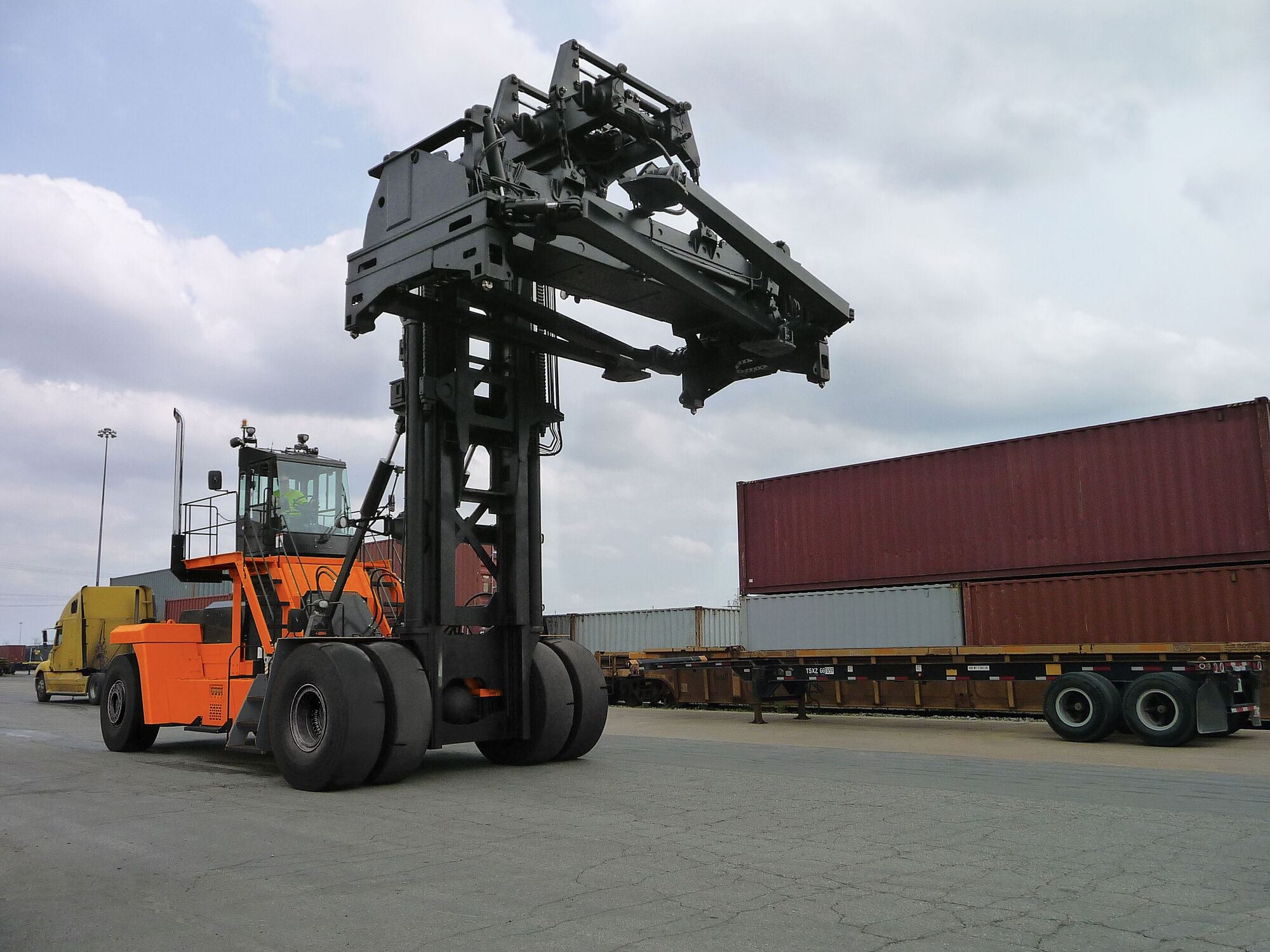

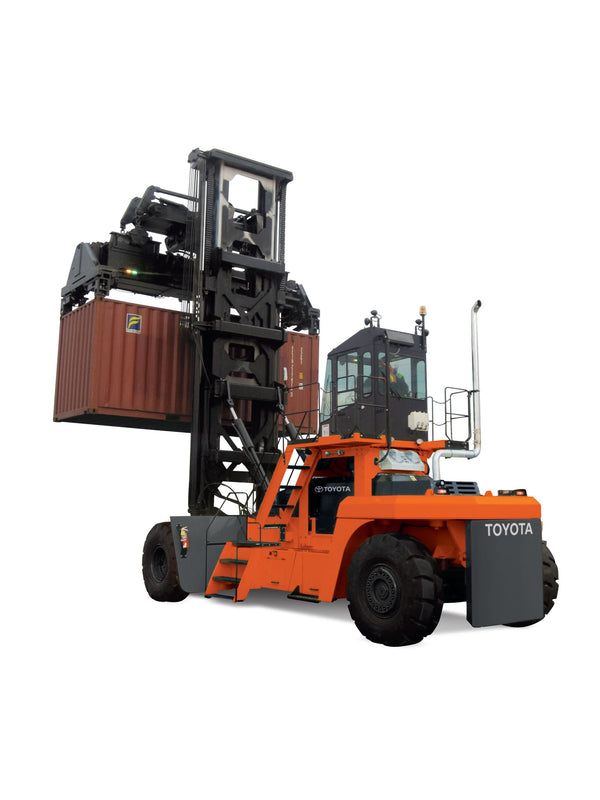

Toyota’s Loaded Container Handler is the king of the port. With a container lifting capacity of up to 90,000 lbs. and the ability to stack up to 6 high, this exceptionally stable container handler can be used in the most rugged applications. Popular in ports, terminals and shipping yards, the Toyota Loaded Container Handler will provide fast lifting cycles, high stacking and reduced freight costs.

LOADED CONTAINER HANDLER SPECIFICATIONS

MODEL NUMBER	LOAD CAPACITY* (LBS.)	MAX. TRAVEL SPEED FULL LOAD (MPH)	MAX. LIFT SPEED FULL LOAD (FPM)	MAX. GRADEABILITY FULL LOAD (%)	BASIC RIGHT ANGLE STACK** (IN.)
THD8000-L6	80,000 (2-High) / 75,000 (6-High)	20	47	9.8	522 (20' cont.) / 601 (40' cont.)
THD8600-L5	86,000 (2-High) / 76,000 (5-High)	19.2	47	10.7	522 (20' cont.) / 601 (40' cont.)
THD9000-L3	90,000 (2-High) / 90,000 (3-High)	19.2	47	11.5	522 (20' cont.) / 601 (40' cont.)
THD9000-L4	90,000 (2-High) / 85,000 (4-High)	19.2	47	11.1	522 (20' cont.) / 601 (40' cont.)
