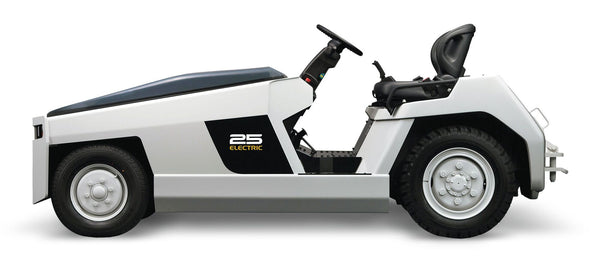

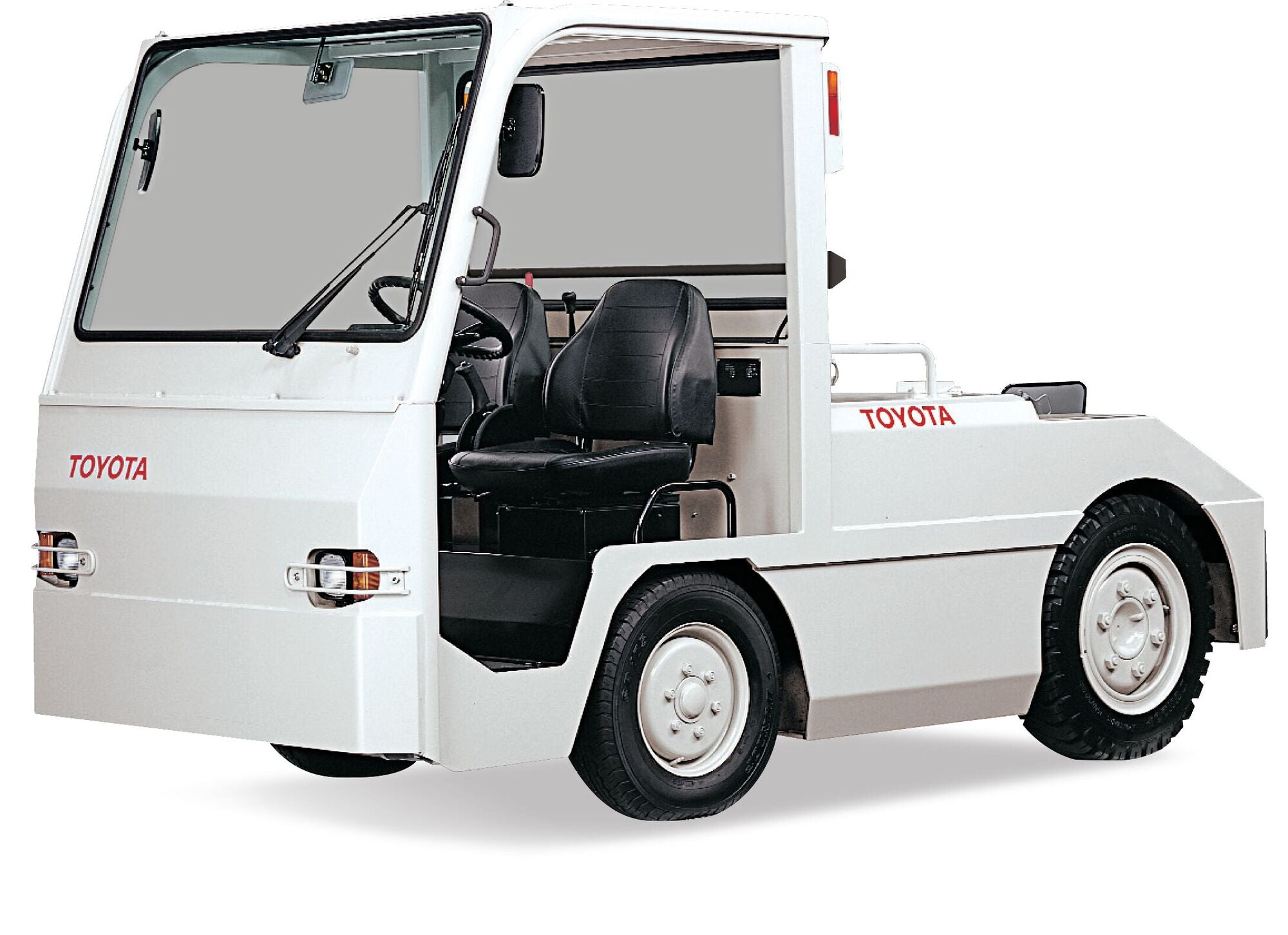

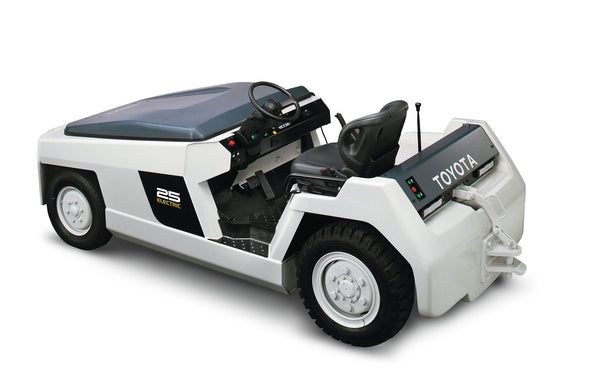

Large Tow Tractor

  • Hydraulic Power Steering
  • 80V AC Drive System
  • Auto Shut-Off
  • Tight Turning Radius
  • Controller Area Network (CAN-BUS)
  • Available Operating Positions (Forward or Rear Compartment)

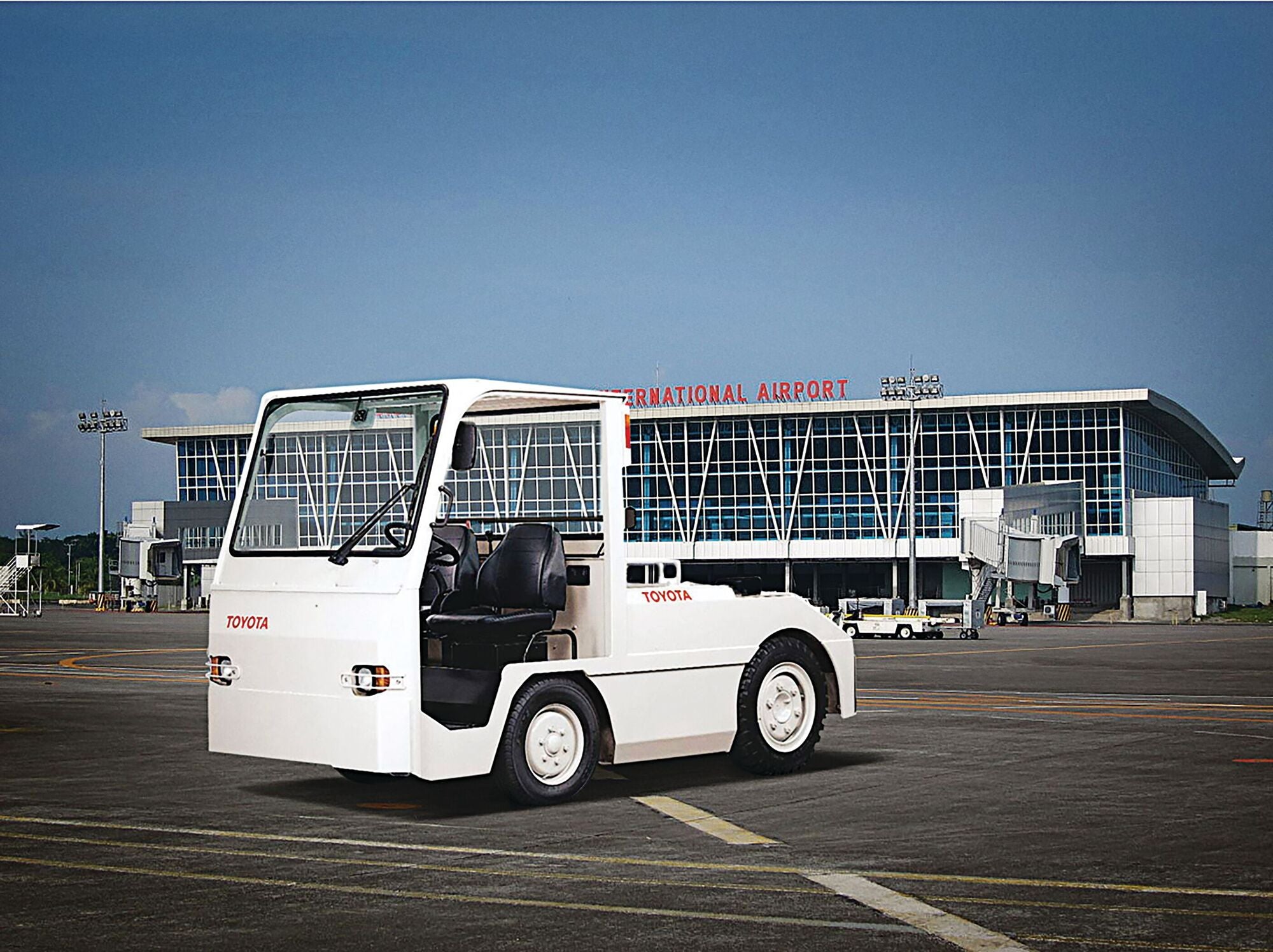

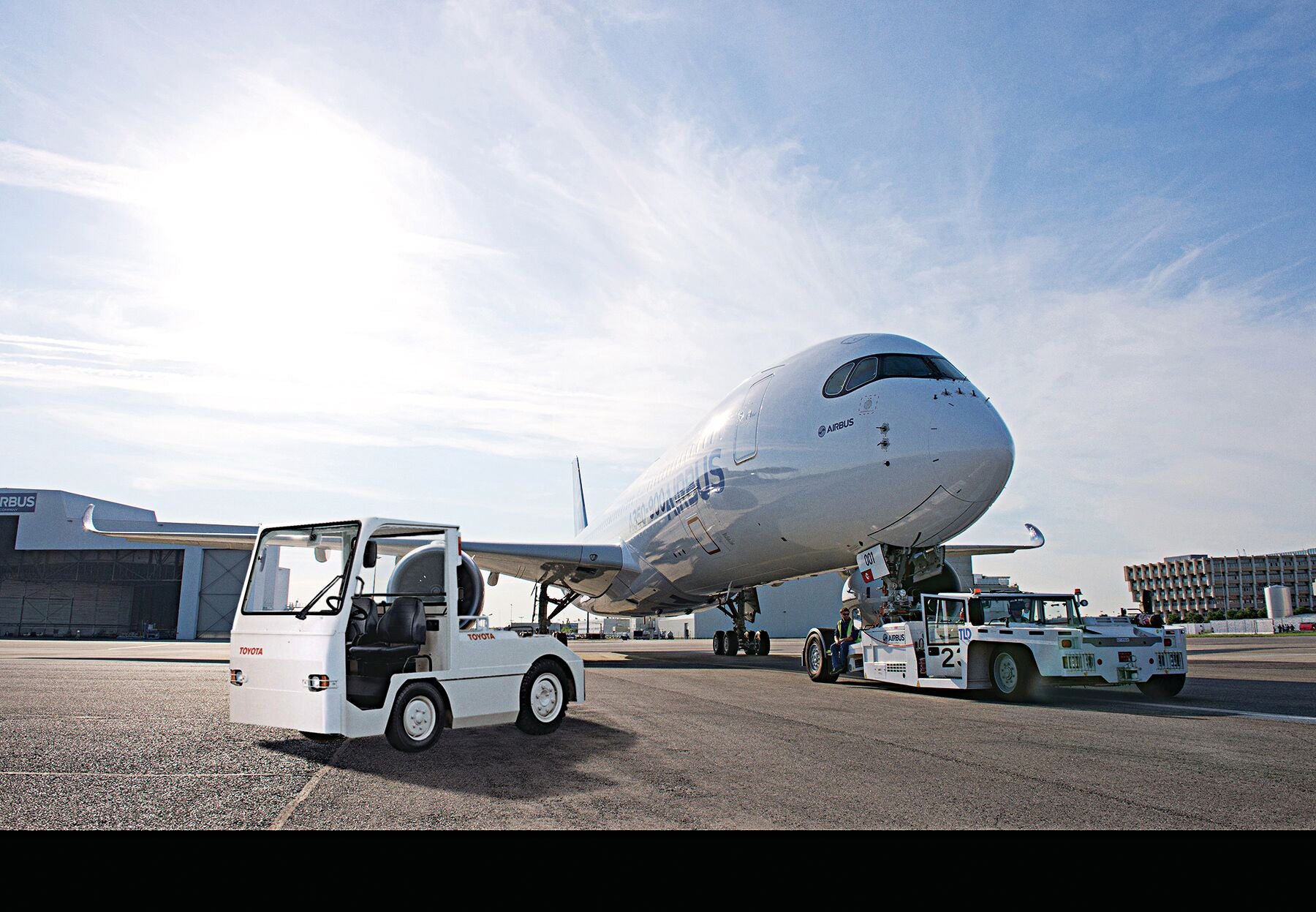

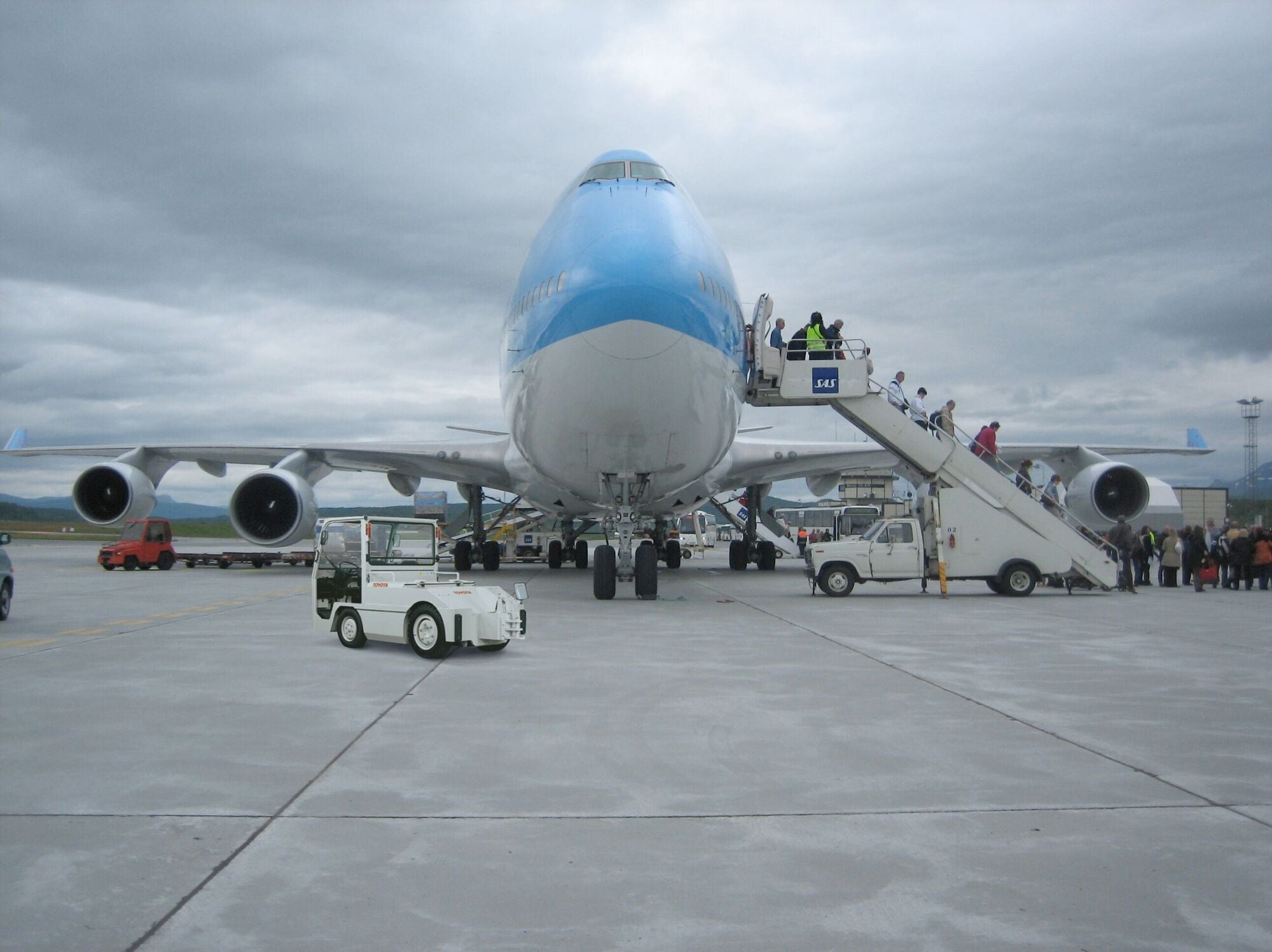

Toyota’s heavy-duty Large Tow Tractor offers the same durable, productivity boost as the Core and Mid Tow Tractors, but with a maximum tugging capacity of over 50,000 lbs. The AC drive system enables quicker acceleration, excellent gradeability, high top speeds, and extended peak operator time. With a tight turn radius, the Toyota Large Tow Tractor is ideal for maneuvering around planes, bag rooms, assembly line areas and ground-support equipment.

Play Video

LARGE TOW TRACTOR SPECIFICATIONS

MODEL NUMBER LOAD CAPACITY* (LBS.) MAX. TRAVEL SPEED FULL LOAD (MPH) MAX. LIFT SPEED FULL LOAD (FPM) MAX. GRADEABILITY FULL LOAD (%) BASIC RIGHT ANGLE STACK** (IN.)
2TE15 44,100 15.6 (no load) N/A 26 N/A
2TE18 55,100 17.5 (no load) N/A 26 N/A
3TE25 59,500 15.5 (no load) N/A 33 N/A
Overall Length 142.3 in
Overall Height w/ Cab 74.6 in
Overall Width 55.9 in - 56.9

Large Tow Tractor

RECOMMENDED INDUSTRIES

Industries

General Manufacturing

Industries

Oil & Gas

Industries

Freezer & Food Storage

×
