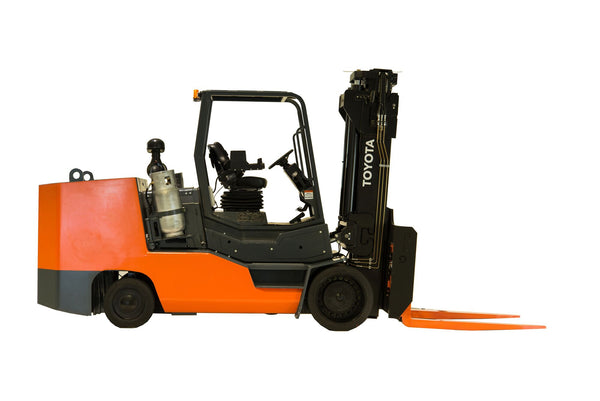

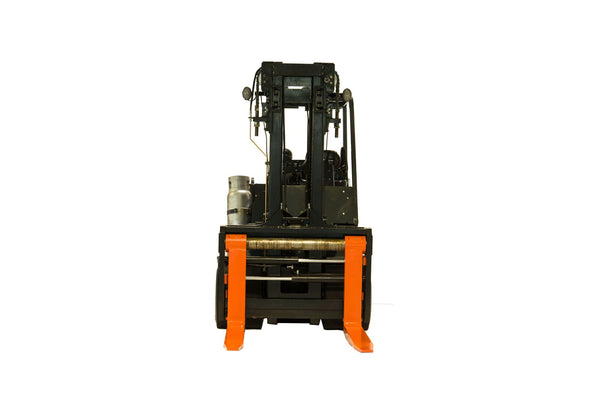

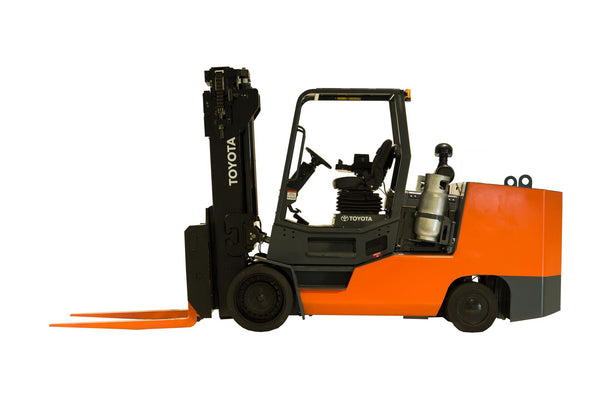

High-Capacity Large Cushion Forklift

High-Capacity Large Cushion

BOLTED OPEN CORE RADIATOR
DUAL-ACTION BOLT-ON STEER CYLINDER
HIGH-IMPACT GREASABLE COMPOSITE TRUNNIONS
2-FUNCTION HYDRAULIC CONTROL VALVE
BUILT-IN HEAT EXCHANGER

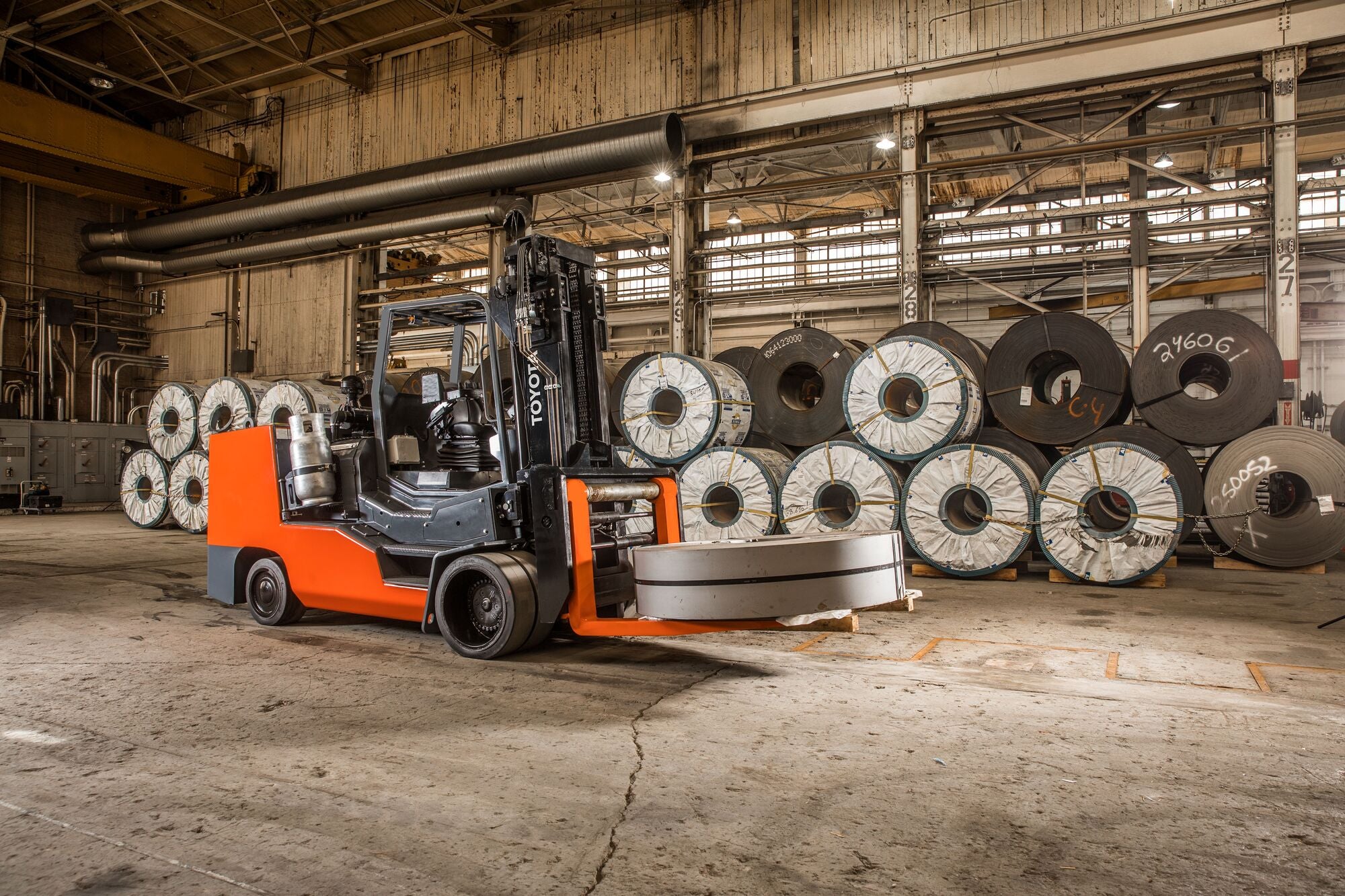

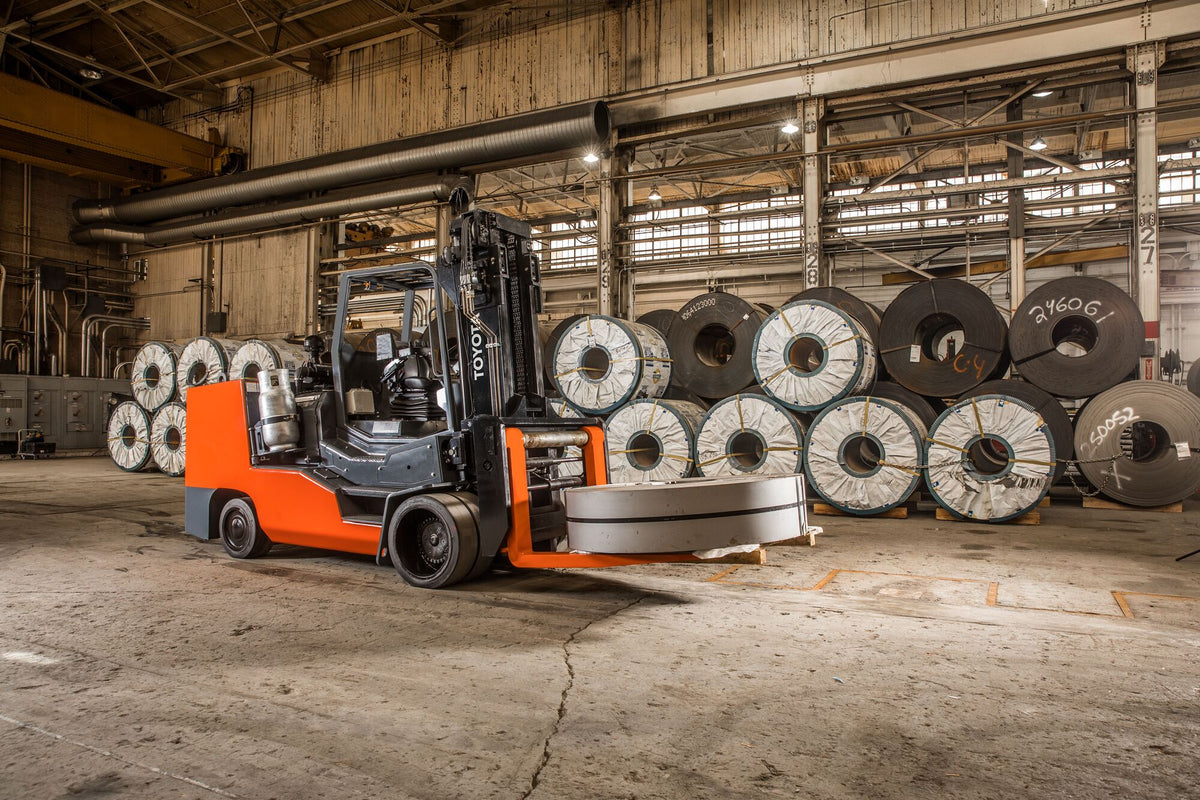

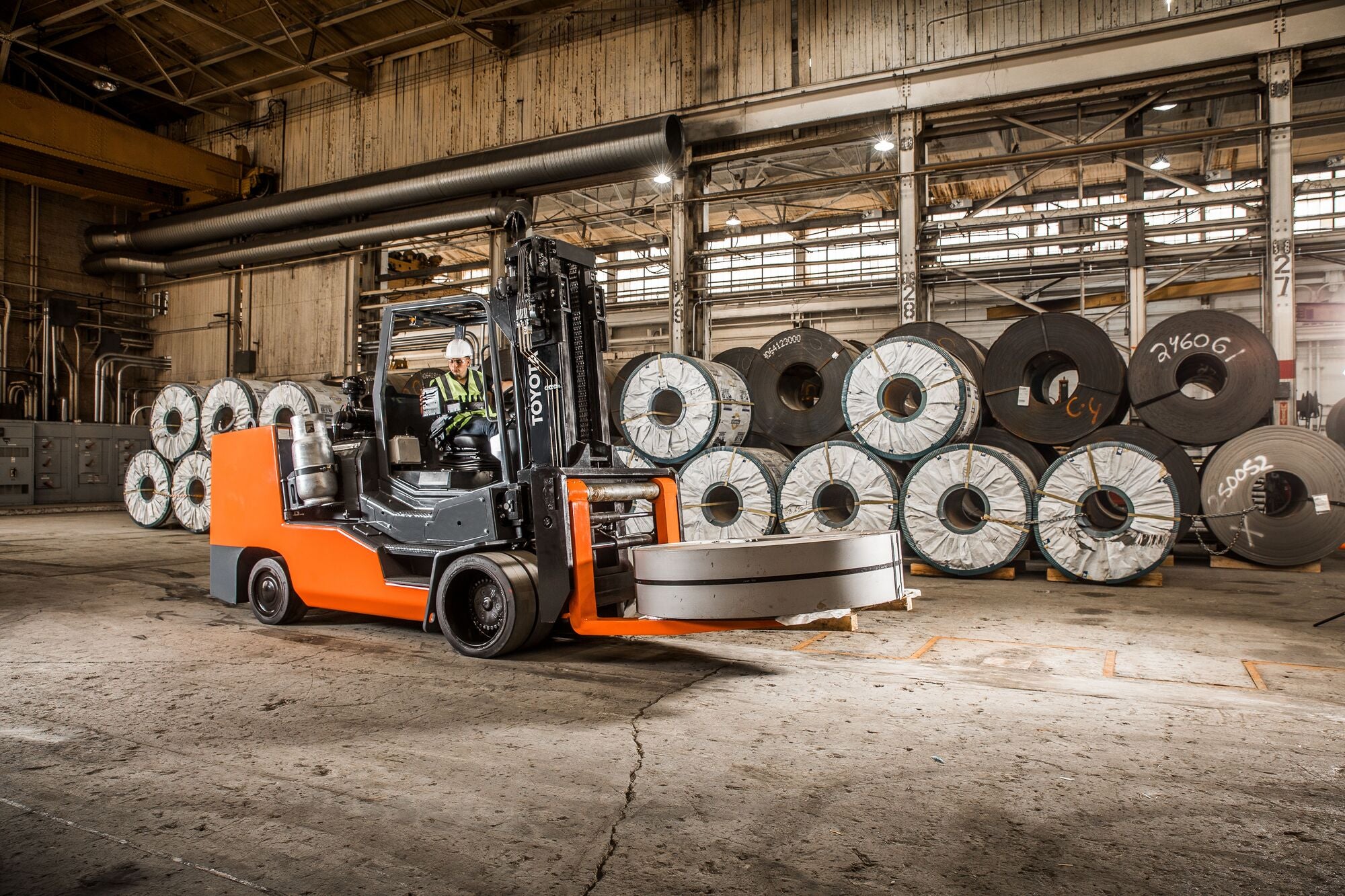

They said all the heavy lifting was happening outside. But Toyota knows that sometimes hauling high capacity loads is an inside job. The Toyota High-Capacity Large IC Cushion Forklift is an indoor mammoth of a machine. Ideal for automotive environments and moving steel inside manufacturing facilities, it gives you the ability to lift up to 100,000 lbs. of the meanest metal around. And with one of the leading engines in its class, the Toyota High-Capacity Large Cushion Forklift is as dependable as it is strong.

HIGH CAPACITY LARGE IC CUSHION FORKLIFT SPECIFICATIONS

MODEL NUMBER	LOAD CAPACITY* (LBS.)	MAX. TRAVEL SPEED FULL LOAD (MPH)	MAX. LIFT SPEED FULL LOAD (FPM)	MAX. GRADEABILITY FULL LOAD (%)	BASIC RIGHT ANGLE STACK** (IN.)
THDC2500-24	25,000	9.7	61	73.7	167
THDC2500-30	25,000	9.7	61	69.9	167.1
THDC3000-24	30,000	9.7	61	67.1	167
THDC3000-30	30,000	9.7	61	64.7	174
THDC3000-36	30,000	9.7	58	61.2	174.3
THDC3500-24	35,000	9.7	58	62.9	174.3
THDC4000-30	40,000	9.7	41	49.8	184.2
THDC4000-36	40,000	9.7	41	47.4	186
THDC4500-30	45,000	9.7	41	46.6	186
THDC4500-36	45,000	10.3	20	35.3	217.5
THDC5000-30	50,000	10.3	20	34.7	217
THDC5000-36	50,000	10.3	20	33.3	217.5
THDC5500-36	55,000	10.3	20	31.5	217.5
