High-Capacity IC Pneumatic

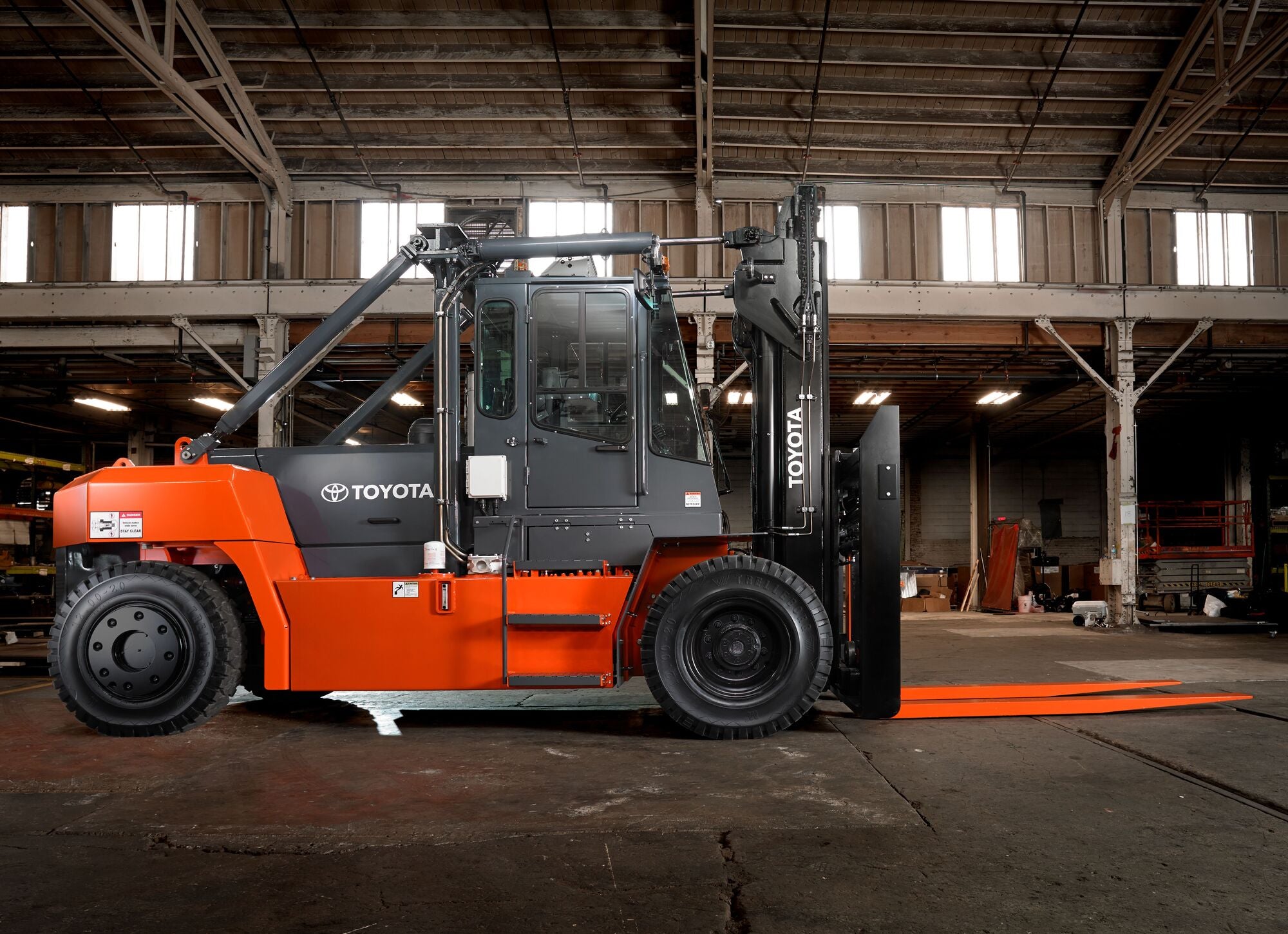

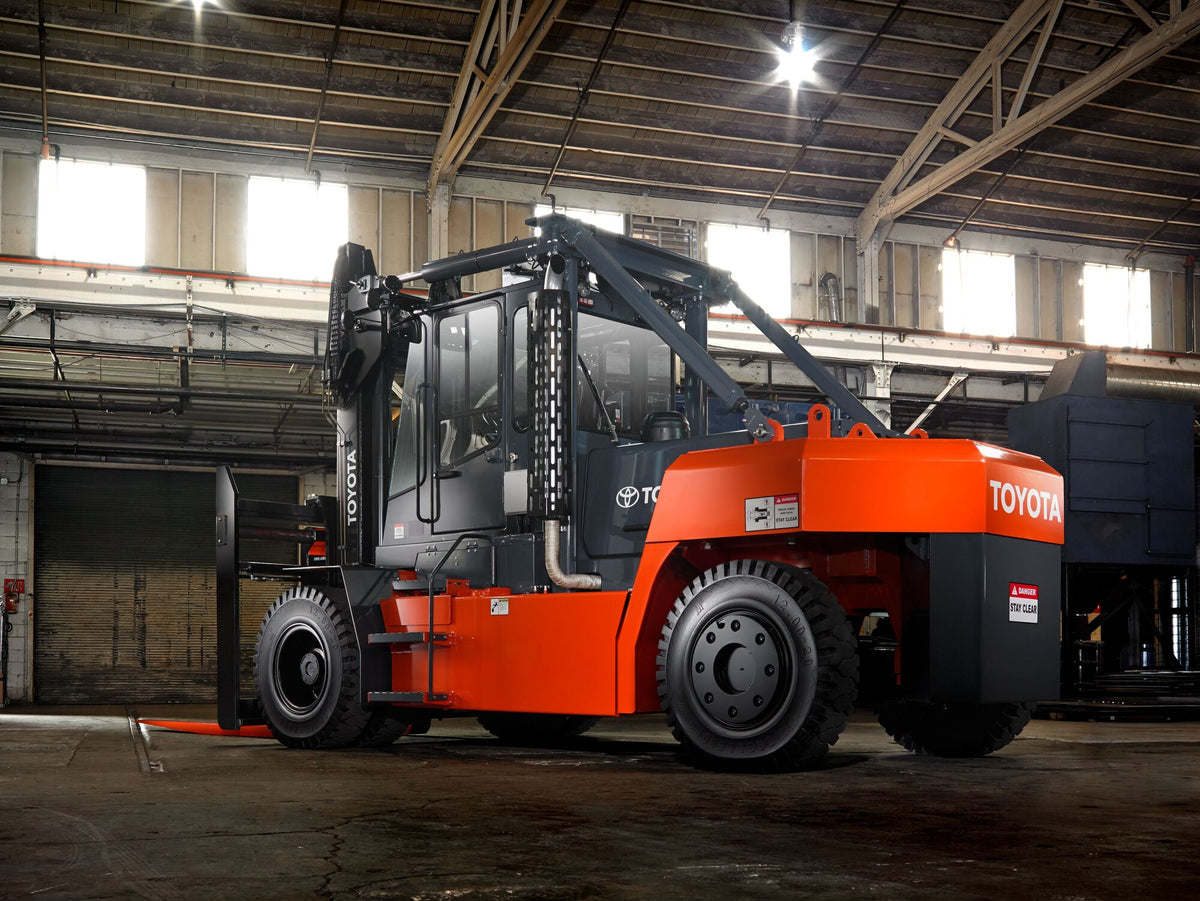

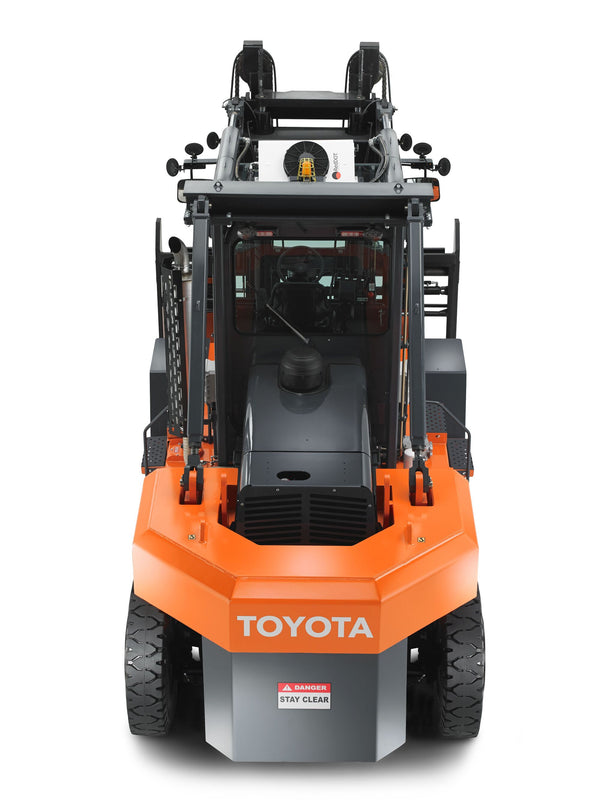

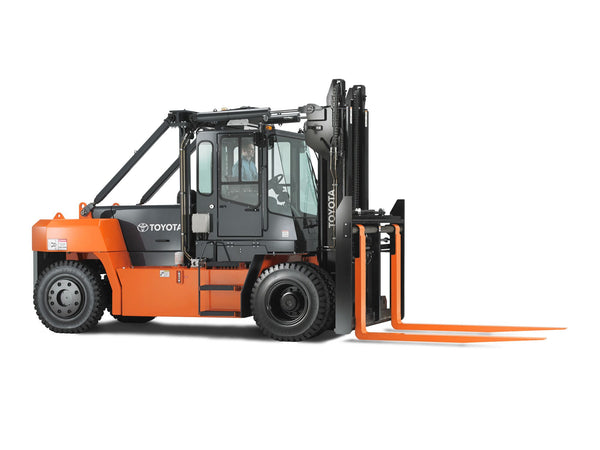

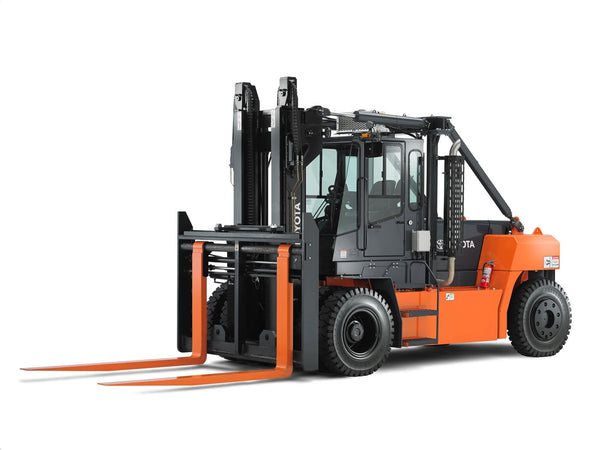

Toyota High-Capacity IC Pneumatic Forklift

Wet disc brakes with dedicated oil cooling system
Engine protection system
Wide view steel cabin
7″ Touch Screen Multi-function display
Fingertip Hydraulic Controls
Standard Air Ride Seat
Standard LED Head Lights and Rear Work Lights

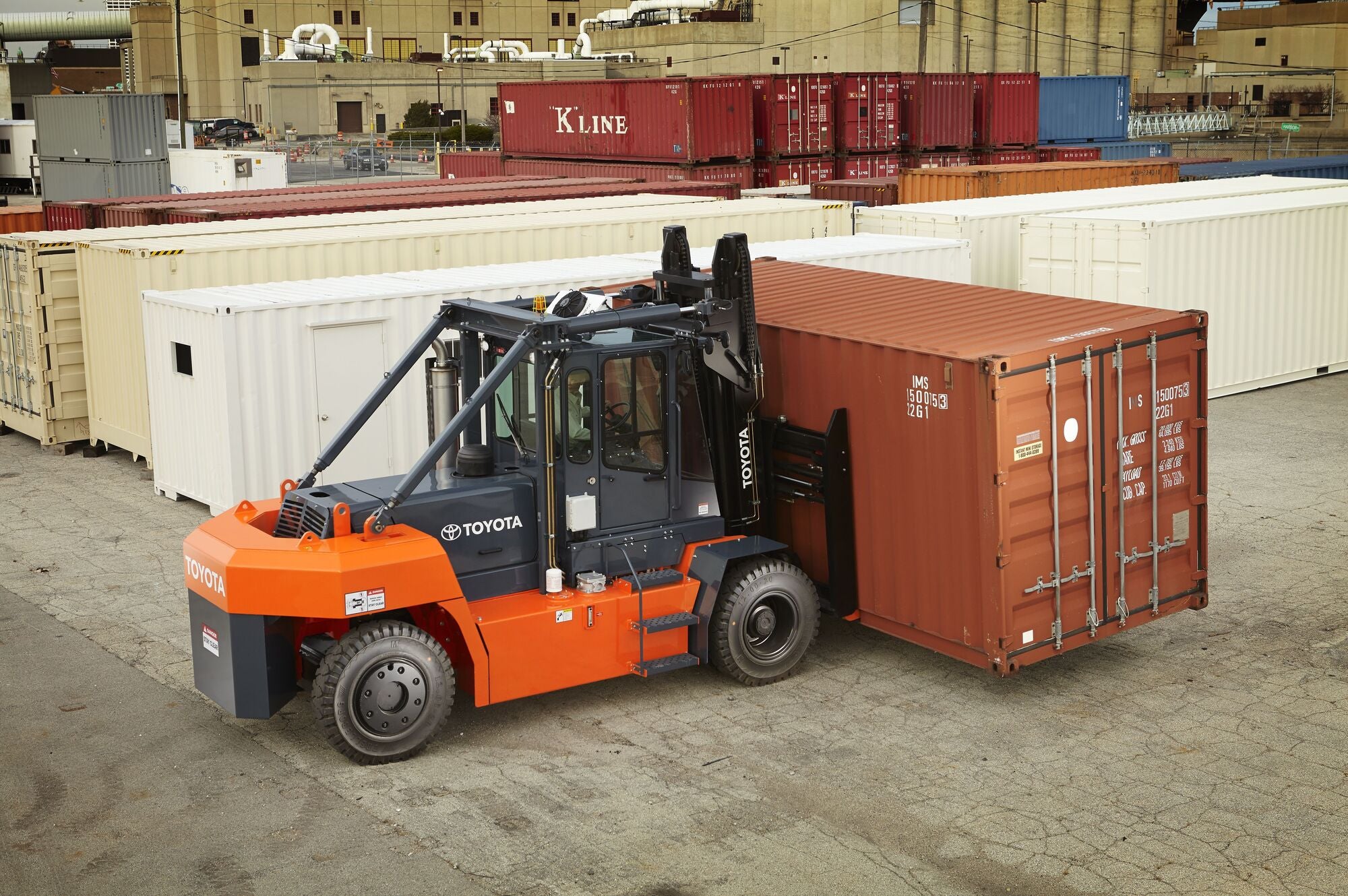

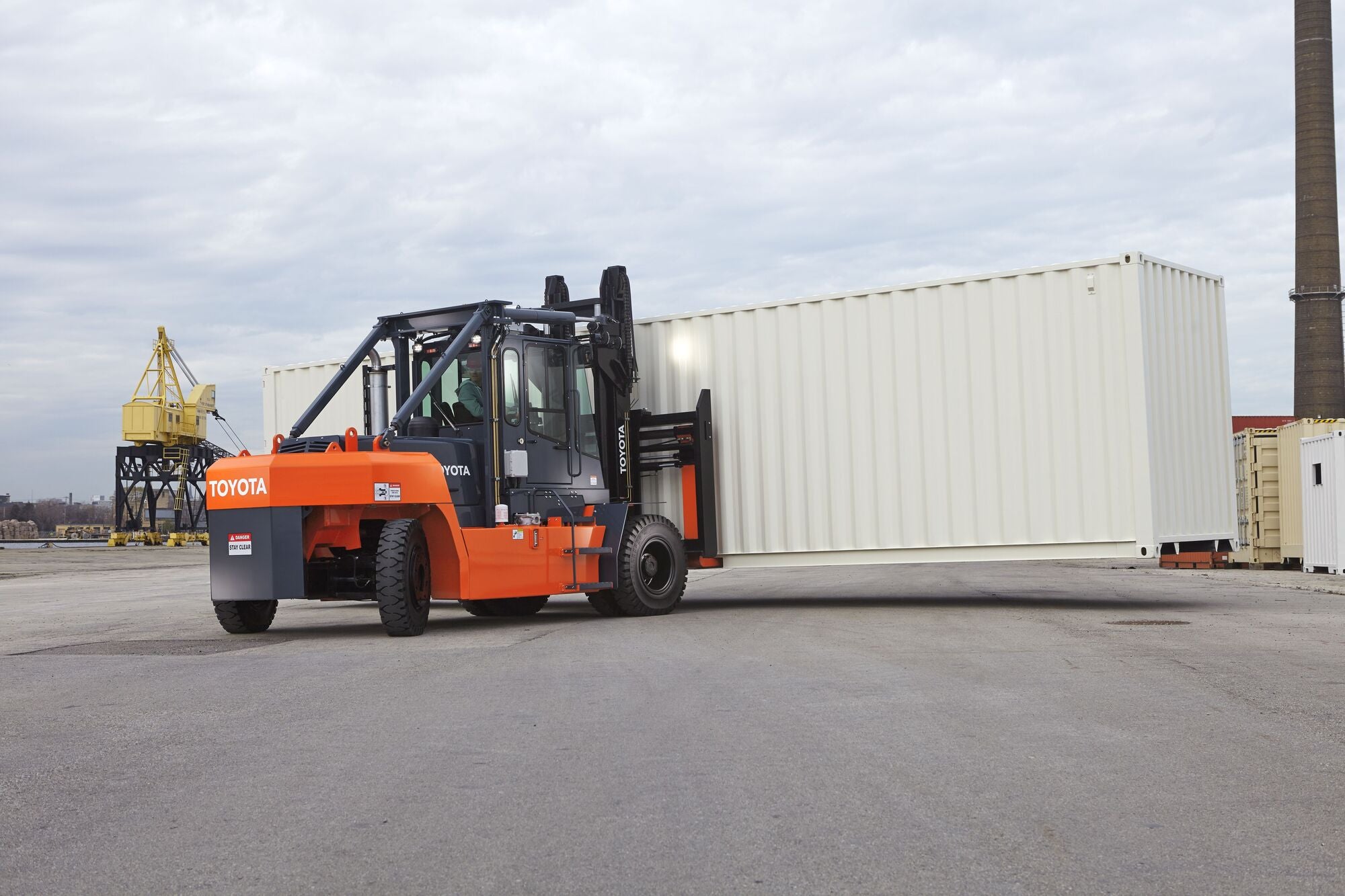

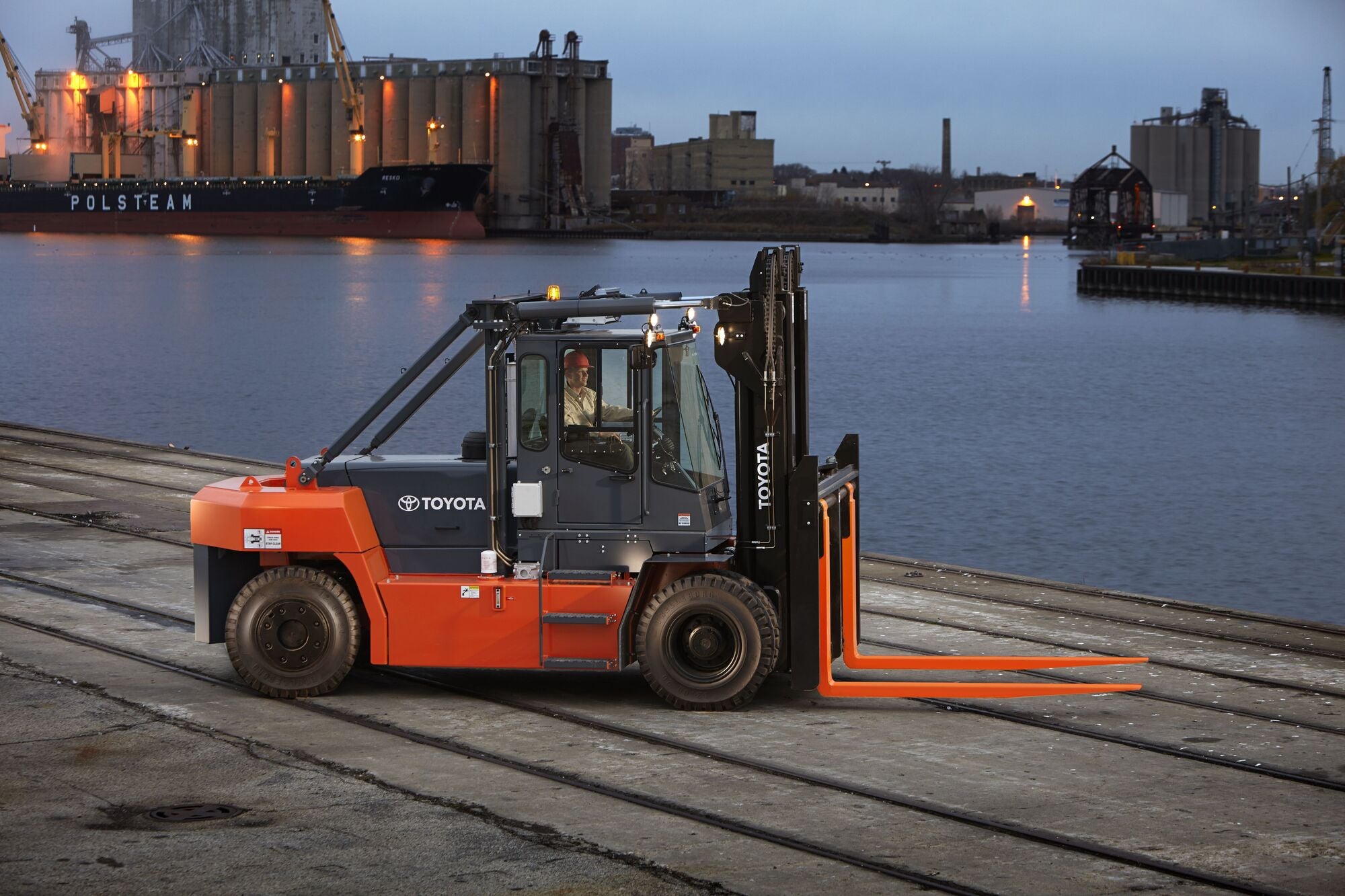

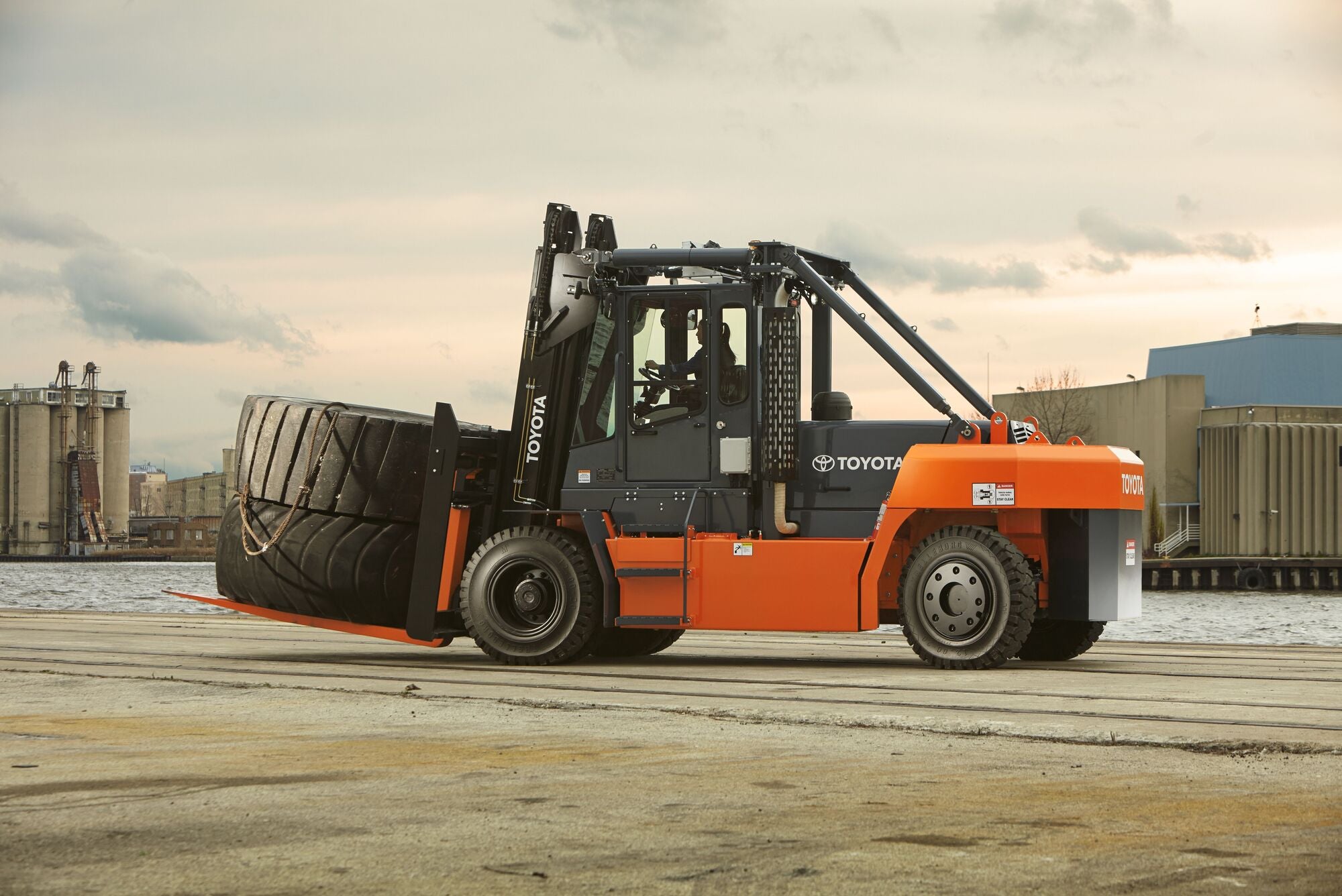

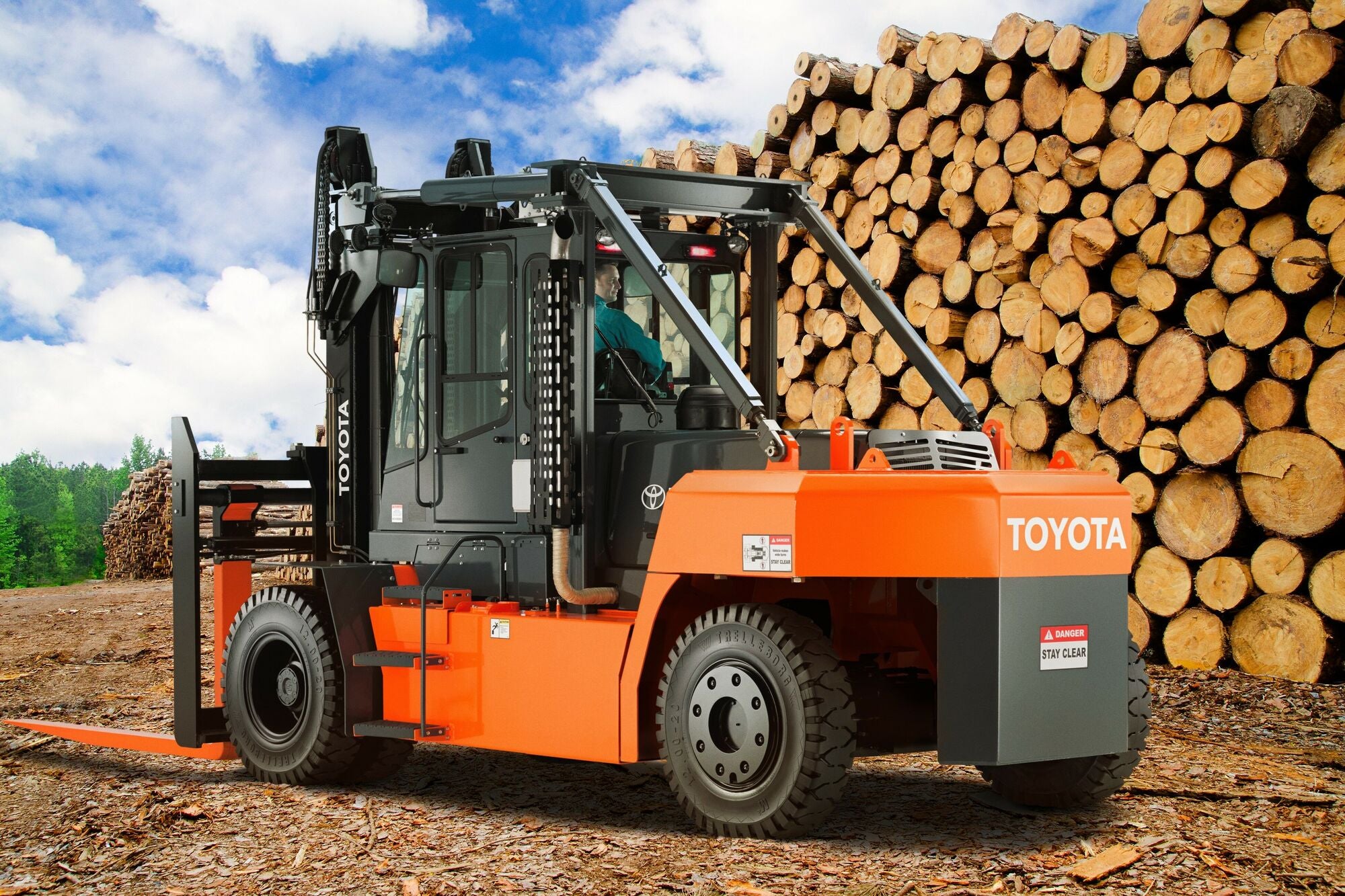

Toyota’s High-Capacity IC Pneumatic Forklift is the largest forklift in Toyota’s product line. With a lifting capacity to handle heavy loads up to 125,000 lbs., this large, rugged diesel forklift can handle almost any heavy load. Commonly found loading and unloading large shipping containers or on the construction site, the High-Capacity IC Pneumatic Forklift provides lifting solutions for extremely heavy industrial applications.

HIGH-CAPACITY IC PNEUMATIC SPECIFICATIONS

MODEL NUMBER	LOAD CAPACITY* (LBS.)	MAX. TRAVEL SPEED FULL LOAD (MPH)	MAX. LIFT SPEED FULL LOAD (FPM)	MAX. GRADEABILITY FULL LOAD (%)	BASIC RIGHT ANGLE STACK** (IN.)
THD3000-24	30,000	23 (no load)	64.1 (standard), 128.2 (high-speed option)	24	203.2
THD3300-24	33,000	23 (no load)	64.1 (standard), 128.2 (high-speed option)	24	227
THD3300S-24	33,000	23 (no load)	64.1 (standard), 128.2 (high-speed option)	23	203.2
THD3600-24	36,000	23 (no load)	64.1 (standard), 128.2 (high-speed option)	22	237
THD3600-36	36,000	23 (no load)	53.2 (standard), 106.4 (high-speed option)	20	242
THD3600-48	36,000	23 (no load)	53.2 (standard), 106.4 (high-speed option)	19	242
THD3600S-24	36,000	23 (no load)	64.1 (standard), 128.2 (high-speed option)	21	206
THD3600S-36	36,000	23 (no load)	53.2 (standard), 106.4 (high-speed option)	19	206.5
THD4000-48	40,000	23 (no load)	53.2 (standard), 106.4 (high-speed option)	18	252
THD4500-48	45,000	24.9 (no load)	53.2 (standard), 106.4 (high-speed option)	19	305
THD4500S-48	45,000	24.9 (no load)	53.2 (standard), 106.4 (high-speed option)	18	276.3
THD5000-48	50,000	24.9 (no load)	32.7 (standard), 65.4 (high-speed option)	17	305
THD5200-48	52,000	24.9 (no load)	32.7 (standard), 65.4 (high-speed option)	17	305
THD5500-48	55,000	24.9 (no load)	32.7 (standard), 65.4 (high-speed option)	16	305
THD6000-48	60,000	21.1 (no load)	32.7 (standard), 65.4 (high-speed option)	18	315
THD6500-48	65,000	21.1 (no load)	32.7 (standard), 65.4 (high-speed option)	17	315
THD7000-48	70,000	21.1 (no load)	25 (standard), 50 (high-speed option)	14	315
THD7200-48	72,000	21.1 (no load)	25 (standard), 50 (high-speed option)	14	315
THD8000-48	80,000	19.2 (no load)	43.9	17	355.5
THD8000S-48	80,000	19.2	43.9	16.2	319.3
THD9250-48	92,500	20.0 (no load)	43.9	12.7	355.5
THD9250S-48	92,500	20.0 (no load)	43.9	12.1	327.8
THD10000-48	100,000	20.0 (no load)	34.7	11.7	364
THD11000-48	110,000	20.0 (no load)	34.7	10.9	364
