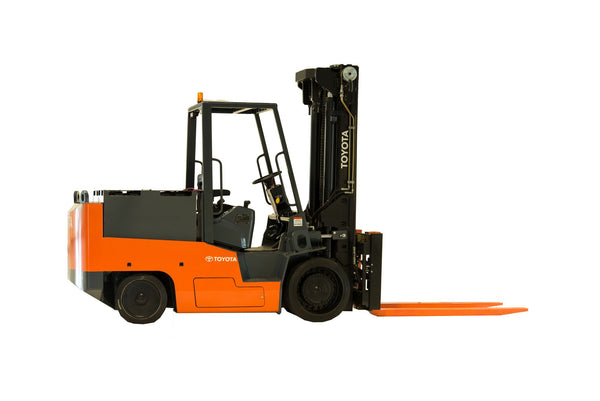

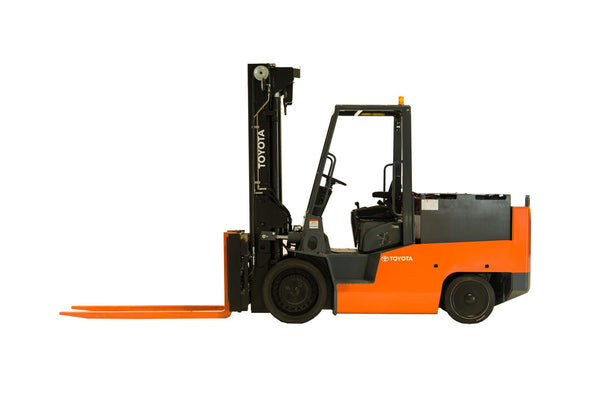

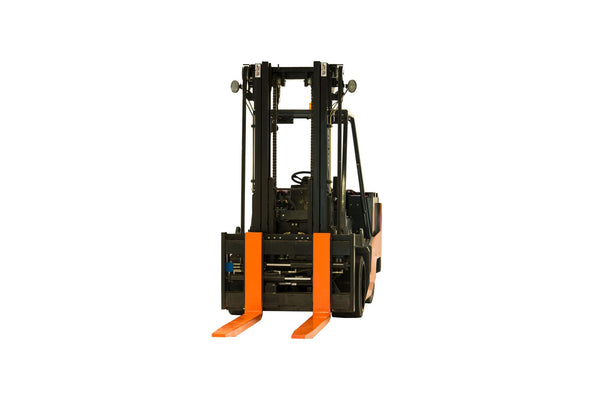

High-Capacity Electric Cushion Forklift

High Capacity Electric Cushion Forklift

72/80-Volt Configurations
42.5 HP Drive Motor
Heavy Duty Planetary Drive Axle

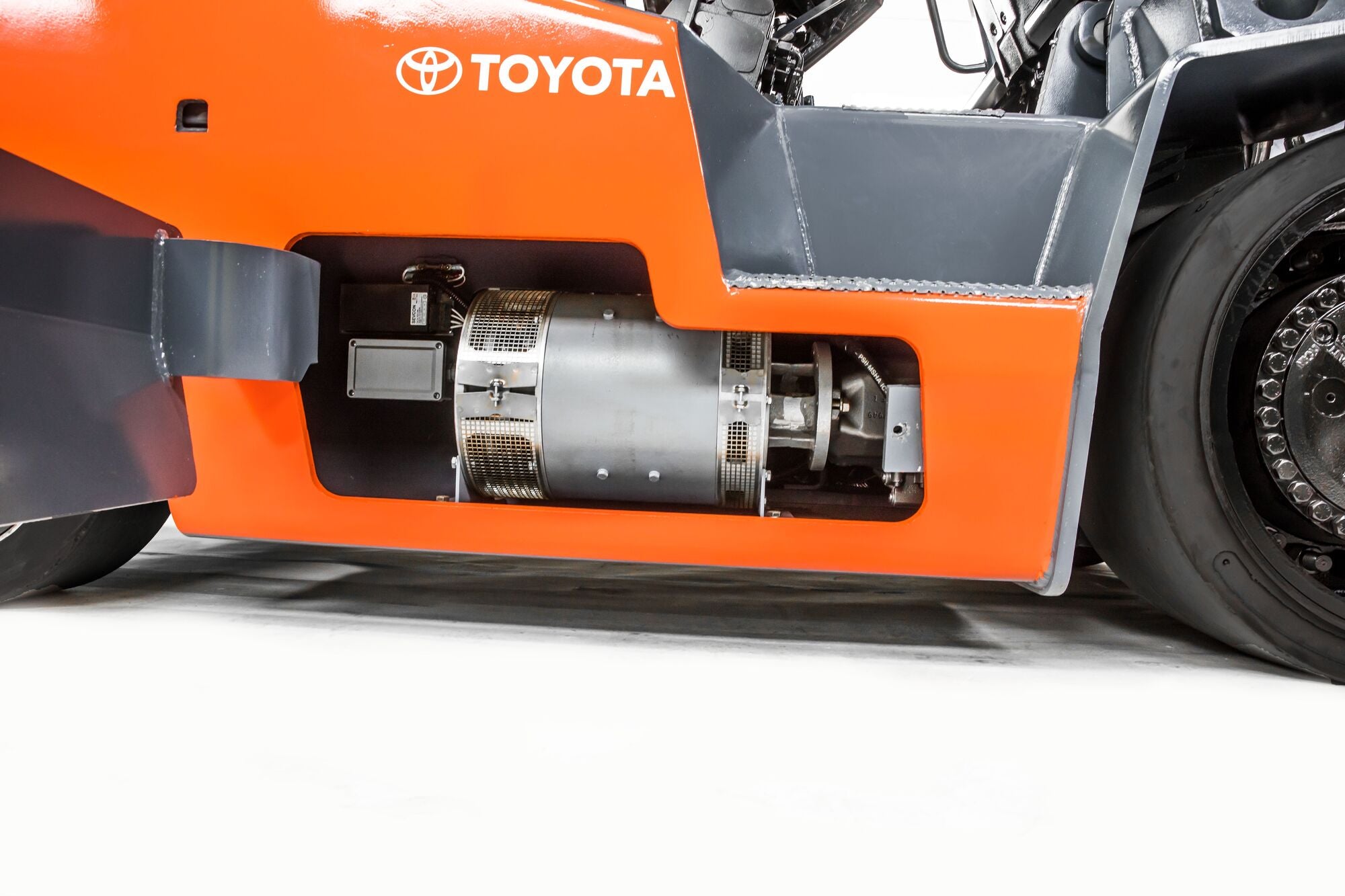

AC Drive and Pump Motors
Loaded Center of 24" or 30"

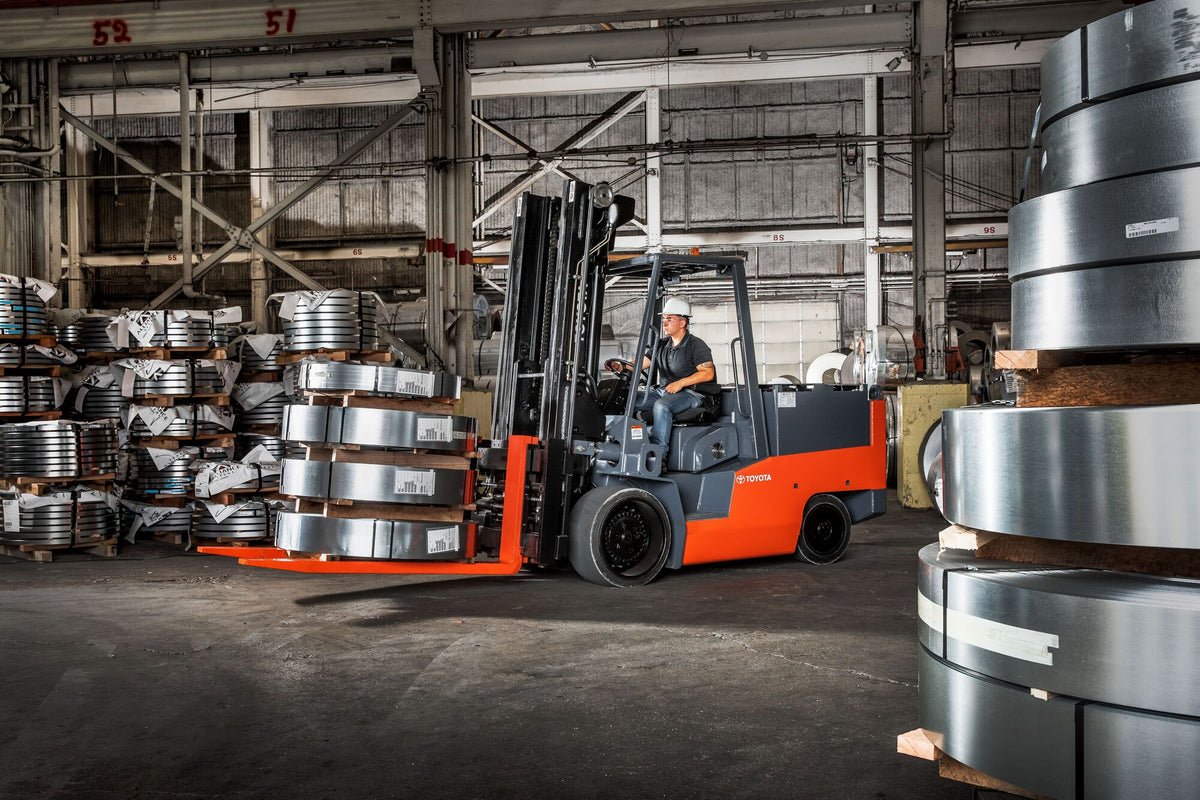

The Toyota High-Capacity Electric Cushion Forklift gives you the versatility to lift massive loads without the need of traditional IC engines. The versatile electric power and high visibility combined with a large 92-inch wheelbase means you’ll have the power you want and the maneuverability you need for your heaviest indoor duties.

HIGH CAPACITY ELECTRIC CUSHION FORKLIFT SPECIFICATIONS

MODEL NUMBER	LOAD CAPACITY* (LBS.)	MAX. TRAVEL SPEED FULL LOAD (MPH)	MAX. LIFT SPEED FULL LOAD (FPM)	MAX. GRADEABILITY FULL LOAD (%)	BASIC RIGHT ANGLE STACK** (IN.)
THDE1500-24	15,000	5.2	39.5	15	134
THDE1800-24	18,000	5.0	39.5	22.5	139.2
THDE2000-24	20,000	4.7	34.5	19.9	140
THDE2200-24	22,000	4.6	34.5	18.7	140
THDE3000-24	30,000	4.1	24	13.1	153.8
THDE3000-30	30,000	4.1	24	12.5	156.35
THDE3500-24	35,000	4.0	24	12.0	156.3
THDE3500-30	35,000	3.9	16	10.8	173.5
THDE4000-24	40,000	3.7	16	10.6	173.5
THDE4000-30	40,000	3.7	16	9.9	173.5
