AICHI E-Series Scissor Lift

AICHI E-Series Scissor Lift Design

  • Steel Construction On All Panels
  • 110V AC Power to Work Platform
  • Solid Non-Marking Tires
  • Forklift Pockets

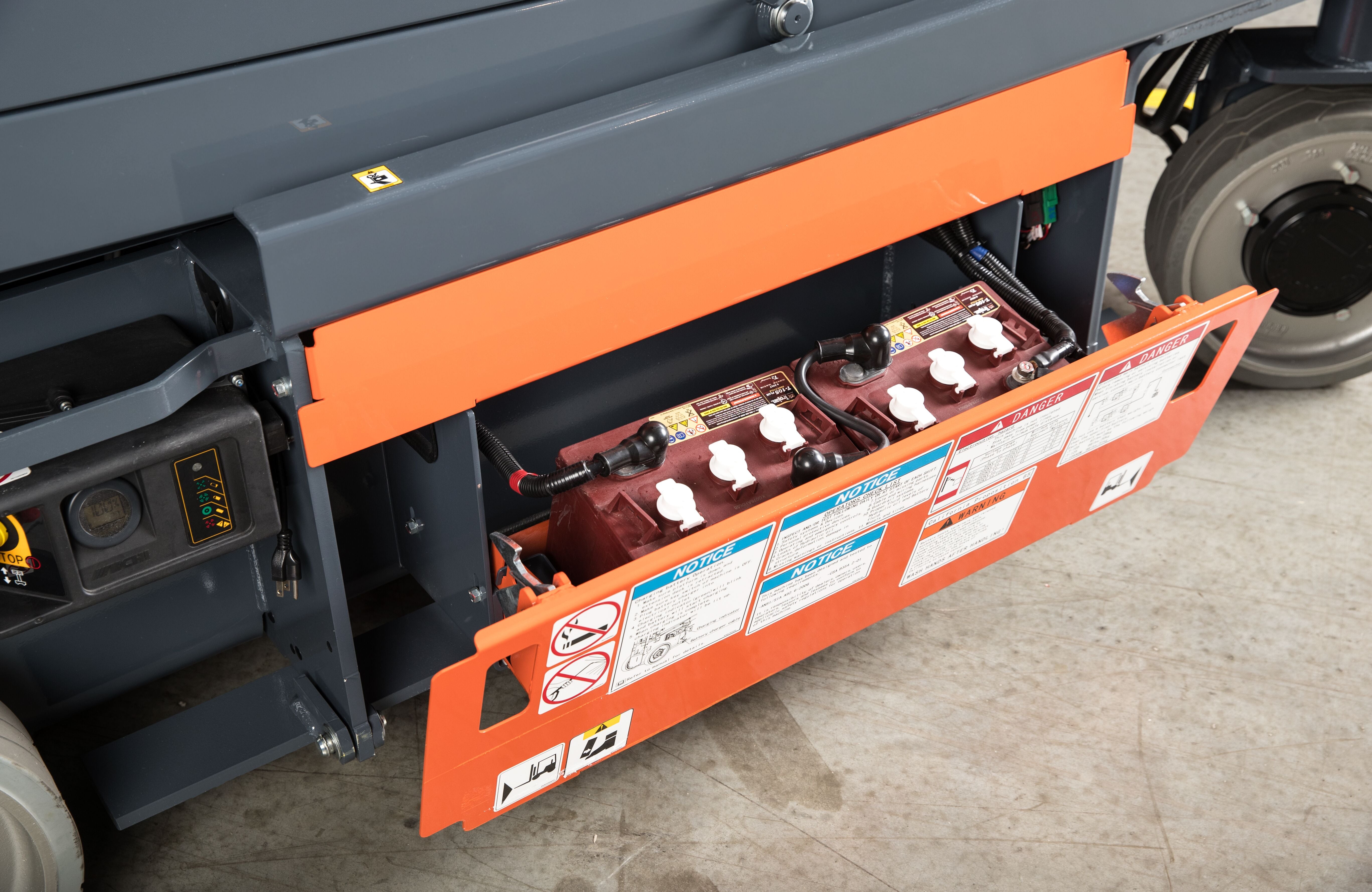

  • Four 6V, 225AH Deep Cycle Batteries

The five models of the AICHI E-Series Scissor Lift offer working heights of 25, 26, 32, and 38 feet. Working height is calculated by adding six feet to the platform extended height. The versatile offerings can be maneuvered through your facilities to reach up and across obstacles. Contact your AICHI dealer for more information.

AICHI SCISSOR LIFT SPECIFICATIONS

MODEL NUMBER PLATFORM HEIGHT PLATFORM CAPACITY AT LIFT HEIGHT PLATFORM LIFT TIME PLATFORM LOWER TIME OVERALL WIDTH
SV1932E 19 ft. 505 lbs. at 228 in. 26 seconds 30 seconds 32.1 in.
SV2032E 20 ft. 790 lbs. at 240 in. 28 seconds 40 seconds 31.9 in.
SV2632E 26 ft. 505 lbs. at 307 in., 795 lbs. at 236 in. 33 seconds 37 seconds 31.9 in.
SV2646E 26 ft. 705 lbs. at 382 in., 990 lbs. at 311 in. 40 seconds 50 seconds 46.1 in.
SV3246E 32 ft. 705 lbs. at 382 in., 990 lbs. at 311 in. 55 seconds 60 seconds 46.1 in.
BATTERY CHARGING & MAINTENANCE
RAISING YOUR PERFORMANCE
SCISSOR LIFT SIZES FOR ALL YOUR TALL TASKS

Performance

  • 3.0 MPH

    MAXIMUM TRAVELING SPEED

  • 990 LBS

    MAXIMUM CAPACITY

  • BRASHLESS

    AC MOTOR

AICHI E-SERIES Scissor Lift

×
